accuracy Engine Lathe Machine with Voltage Options to Meet Customer Requirements

Specifications

Max. Length of Workpiece (mm) :

1000

Range of Spindle Speed(r.p.m) :

35 - 2000 r.p.m

Machining Capacity :

Medium Duty

Type :

Horizontal

Spindle Motor Power(kW) :

1.5

Place of Origin :

Henan, China

Brand Name :

Timac, Timeway

Model Number :

T-1640A

Voltage :

As customer's Request

Dimension(L*W*H) :

1930x860x1550mm

Weight (KG) :

700 KG

Warranty :

1 Year

Key Selling Points :

High-accuracy

Marketing Type :

Ordinary Product

Machinery Test Report :

Provided

Video outgoing-inspection :

Provided

Warranty of core components :

1 Year

CNC or Not :

normal

Automatic Grade :

semi-automatic

warranty :

1 year after delivery

product type :

Engine Lathe Machine

Width of bed :

218mm

Max. Swing Diameter :

400mm

Power(W) :

1.5 KW

Swing in length of gap :

210mm

Center distance :

1000mm

After-sales Service Provided :

Online support

Condition :

New

Applicable Industries :

Garment Shops, Building Material Shops, Manufacturing Plant, Retail, Energy & Mining, Advertising Company

Showroom Location :

Canada, United States, Italy, Germany, Mexico, South Africa, Australia

Core Components :

Bearing, Gear, Motor, Gearbox, Engine

Spindle Bore(mm) :

Max. Turned Length (mm) :

1000 mm

Packaging Details :

Wooden case (fumigated)

Price :

$3,000.00/sets 1-2 sets

MOQ :

1 set

Description

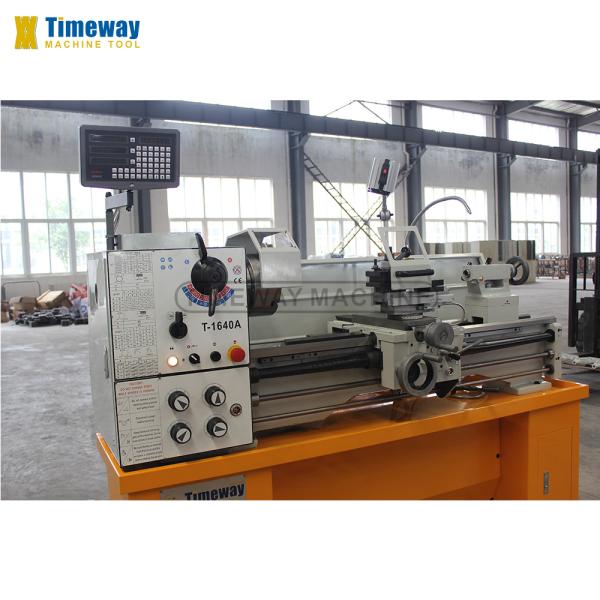

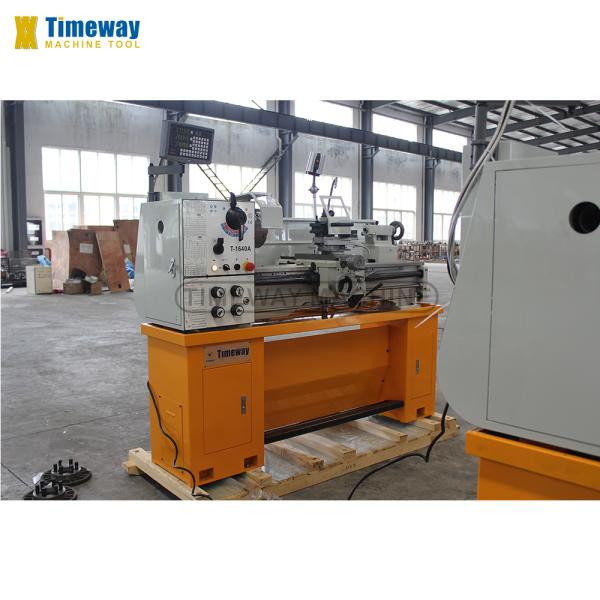

Engine Lathe Machine T-1640A

Product Description

Features:

Precision ground and hardened bedways, ensure rigidity and stability of overall machine, increase service life.

The spindle is equipped with precision roller bearings, reduce axial and radial runout of spindle and lower noise.

Headstock gears adopt high quality steel ground and hardened, guarantee transmission accuracy.

Removable gap is provided for larger working range, especially suitable for end face cutting.

Easy operating gear box has various feeds and threads cutting function.

Oil-bath lubricated main drive and feed gears, reducing temperature rise of spindle and gears, thus realize stability of machining accuracy and low transmission noise.

Interlocking feature prevents simultaneous advance of leadscrew and feed shaft.

Manual central lubrication and closed cooling circuit is included.

Different length of machine tools are available.

Parameters:

Specification	T-1640A
Swing over bed	400mm
Swing over cross slide	252mm
Swing in gap diameter	540mm
Swing in length of gap	210mm
Center distance	1000mm
Bed width	218mm
Spindle bore	51mm
Spindle nose	D1-5
Taper in sleeve	NO.MT3
Speeds number	8 or 16(pole changeable motor)
Speeds range	70-2000r.p.m.or 35-2000r.p.m.(2 speed motor)
Cross slide travel	170mm
Compound rest travel	95mm
Lead screw thread	8T.P.I. or 3mm or 4mm
Feed rod diameter	19mm
Cutting tool max section	16x16mm
Threads imperial pitches	36 Nos.8-112 T.P.I. or 34 Nos.4-56T.P.I
Threads metric pitches	28 Nos.0.2-5mm pitch or 26 Nos.0.4-7mm pitch
Longitudinal feeds imperial	36 Nos.0.0019-0.0273"/Rev.or 32 Nos.0.002-0.548"/Rev
Longitudinal feeds metric	36 Nos.0.050-0.696"/Rev.or 32 Nos.0.052-0.392mm/Rev
Cross feeds imperial	36 Nos.0.0006-0.0094"/Rev.or 32 Nos.0.007-0.0187"/Rev
Cross feeds metric	36 Nos.0.013-0.188"/Rev.or 32 Nos.0.014-0.380mm/Rev
Quill diameter	32mm(1-1/4")
Quill travel	100mm(3-15/16")
Quill taper	NO. MT3
Main motor	1.5KW
Packing size (LxWxH)	1930x860x1550mm
NW/GW	600/700kg

Standard Accessories:

n Three jaw chuck

n Dead center

n Thread chasing dial

n Chip tray

n Work light

n Cooling system

n Rear splash guard

n Tool box and tools

n Operator manual

Optional Accessories:

n Foot brake pedal

n Driving plate

n Taper turning attachment

n Drill chuck

n Quick change tool holder

n Steady rest

n Follow rest

n 2-axis/3-axis position indicator

n Four jaw chuck

n Variable speed

n Chuck guard

n Reducing sleeves
