330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine
330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine
330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine
330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine
330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine
330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine
330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine
330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine
330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine
330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine
330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine
330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine
Specifications
Max. Length of Workpiece (mm) :
1000
Machining Capacity :
Medium Duty
Type :
Horizontal
Place of Origin :
Henan, China
Brand Name :
TIMAC
Model Number :
T-1340A
Voltage :
As request
Dimension(L*W*H) :
1940x760x1520mm
Weight (KG) :
560 KG
Warranty :
1 Year
Key Selling Points :
High-accuracy
Marketing Type :
Hot Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Spindle bore :
38mm
Automatic Grade :
Manual
CNC or Not :
Normal
lathe machine :
high precision metal lathe machine
Max. Swing Diameter :
330mm
Weight :
560/600kg
Power :
1.5kw
Processing capacity :
medium
Max.workpiece length :
1000mm
Warranty period :
1 year
Condition :
New
Spindle Bore(mm) :
38
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Other
Showroom Location :
Peru, Indonesia, Mexico, Thailand, South Africa, Malaysia
Core Components :
Bearing, Gear, Motor, Gearbox, Other, Engine
Max. Turned Length (mm) :
1000 mm
Packaging Details :
In plywood cases.
Port :
China port.
Supply Ability :
400 Set/Sets per Month
Price :
$4,000.00/sets 1-2 sets
MOQ :
1 set
Description

Precision Gear Head Engine Lathe

T-1340A

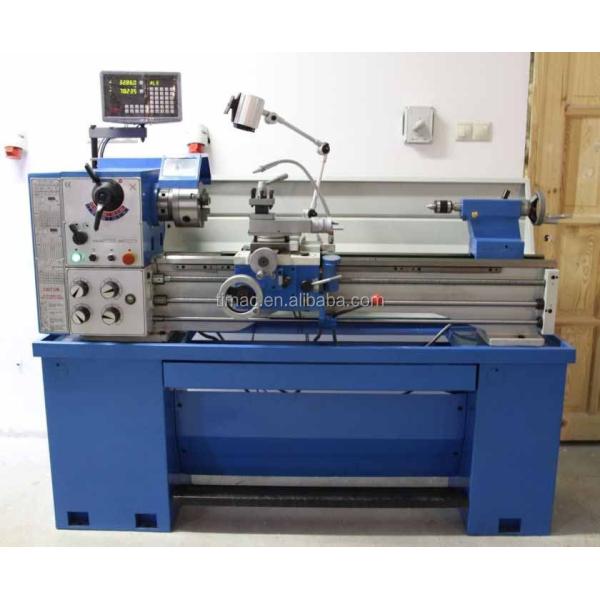

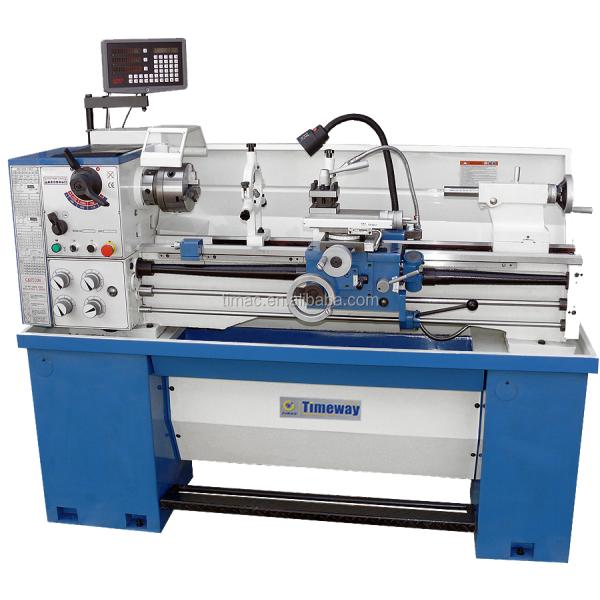

Main Outlook

330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine

Product Description

Technical Parameter:

Specification

Unit

T-1340A

Max.swing over bed

mm

330

Max.swing over cross slide

mm

198

Max.swing in gap

mm

450

Distance between centers

mm

1000

Spindle nose

D4

Spindle bore

mm

38

Spindle bore taper

M.T.#5

Spindle speed

rpm

70-2000(8steps)

Longitudinal feed range

mm/rev

0.078-1.044

Cross feed range

mm/rev

0.22-0.298

Metric threads

mm

0.45-10

Inch threads

TPI

21/4-40

Tailstock bore taper

M.T.#3

Main motor

kw

1.5

Net weight/Gross weight

kg

560/600

Packing dimension

mm

1940×760×1520

Standard accessories:

3 jaw chuck, 4 jaw chuck,

Face plate, steady rest,

Follow rest, oil gun,

Dead center,

Changing gears,

Reduction sleeve,

Chasing dial indicator

Optional accessories:

Coolant system, working light,

Foot brake system

Digital readout system (DRO),

Quick change tool post & holders,

Taper turning attachment

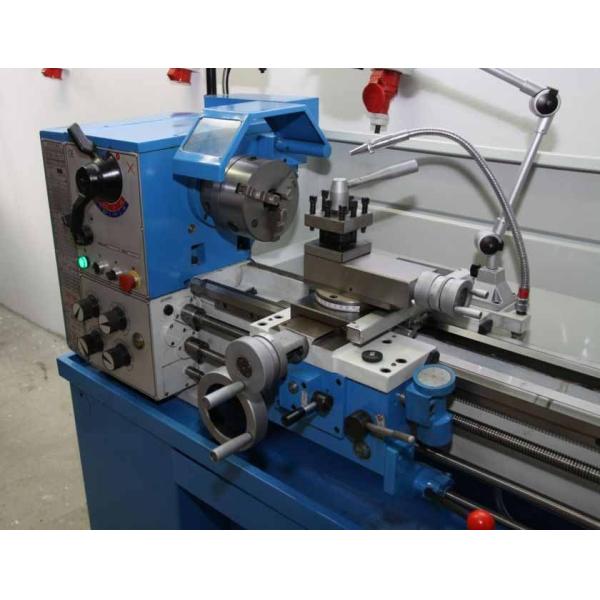

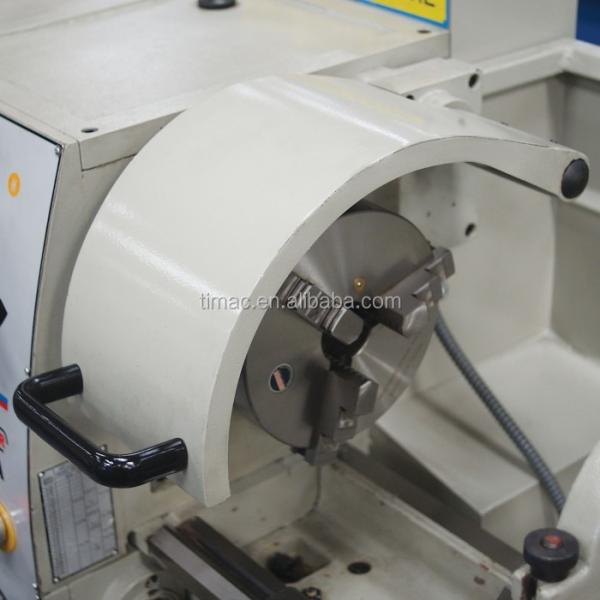

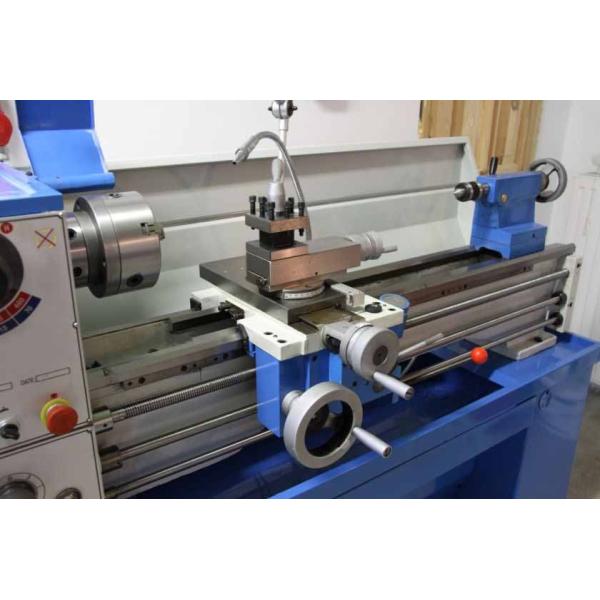

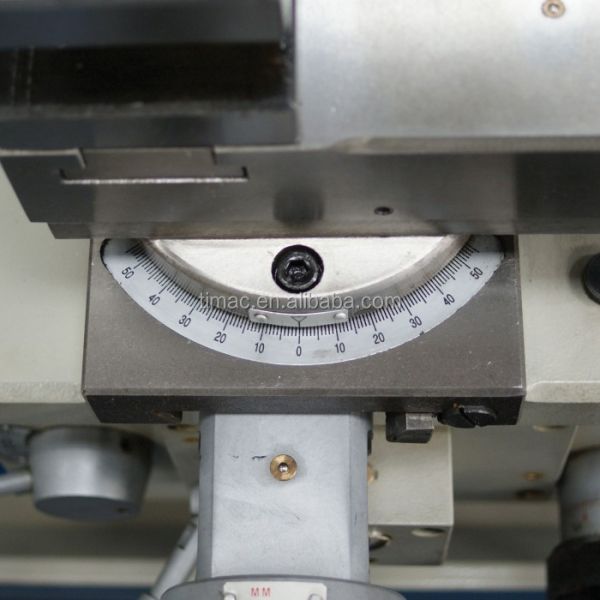

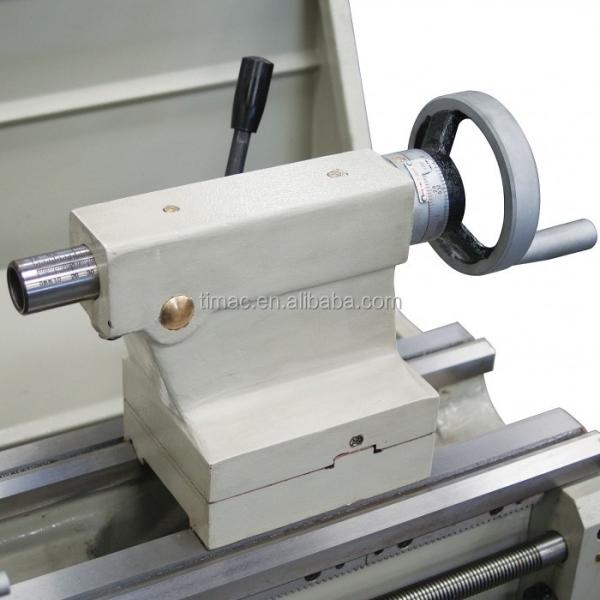

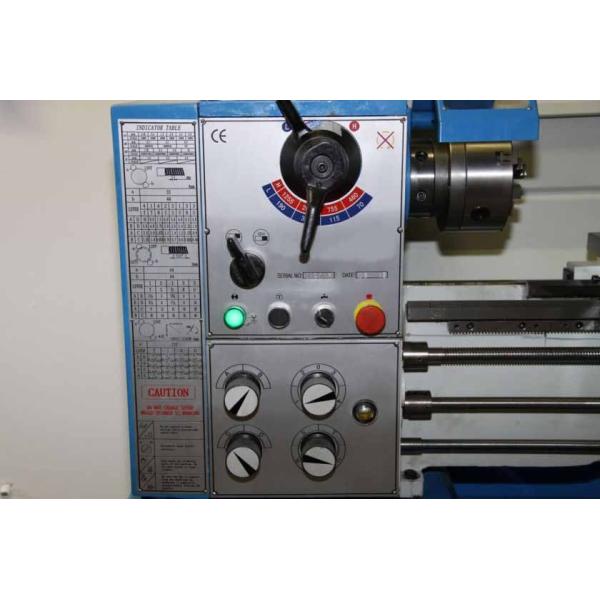

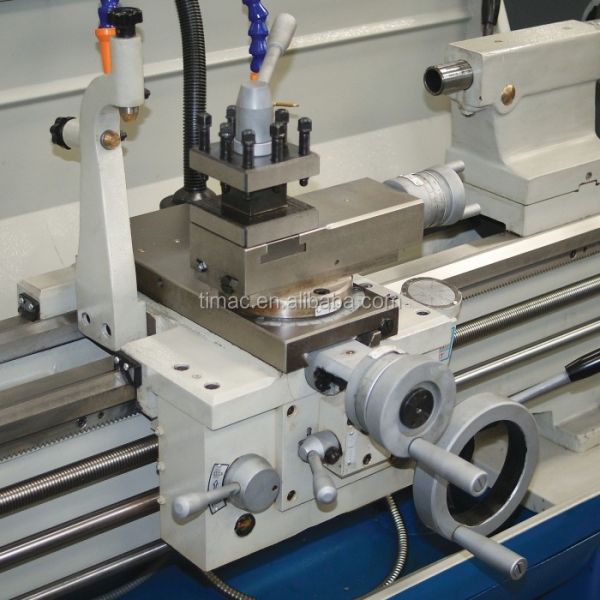

Detail Images

330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine 330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine 330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine

330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine

330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine 330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine

330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine 330mm Max. Swing Diameter Precision Gear Head Engine Lathe High Precision Metal Lathe Machine
