Specifications
Max. Length of Workpiece (mm) :
3000
Range of Spindle Speed(r.p.m) :
3.15 - 315 r.p.m
Machining Capacity :
Heavy Duty
Width of bed (mm) :
1100
Type :
Horizontal
Spindle Motor Power(kW) :
30
Place of Origin :
Henan, China
Brand Name :
TIMAC TIMEWAY
Model Number :
AL-2000
Voltage :
As Customer's Request
Dimension(L*W*H) :
6120x2430x2580 mm
Weight (KG) :
15000 KG
Warranty :
1 Year
Key Selling Points :
Competitive Price
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Max. turning diameter :
2000 mm
Max. turning diameter of the bar :
1650mm
Max. weight of workpiece :
16 or 20 tons
Lathe speed :
3.15-315 (21); 3.5-291 (12)
X-axis travel :
900mm
Top slide travel :
360mm
Tailstock sleeve diameter :
260mm
Tailstock sleeve travel :
300mm
Guideway type :
Width 1100mm rectangular rails
After-sales Service Provided :
Online support
Condition :
New
Spindle Bore(mm) :
100
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant
Showroom Location :
Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Brazil, Peru, Russia, South Africa
Core Components :
Bearing, Pump, Gear, Motor, Gearbox, Pressure vessel
Max. Turned Length (mm) :
2800 mm
Year :
2020
Packaging Details :
wooden case or plywood case
Port :
China Port
Supply Ability :
50 Set/Sets per Month .
Price :
$80,000.00/sets 1-2 sets
MOQ :
1 set
Description

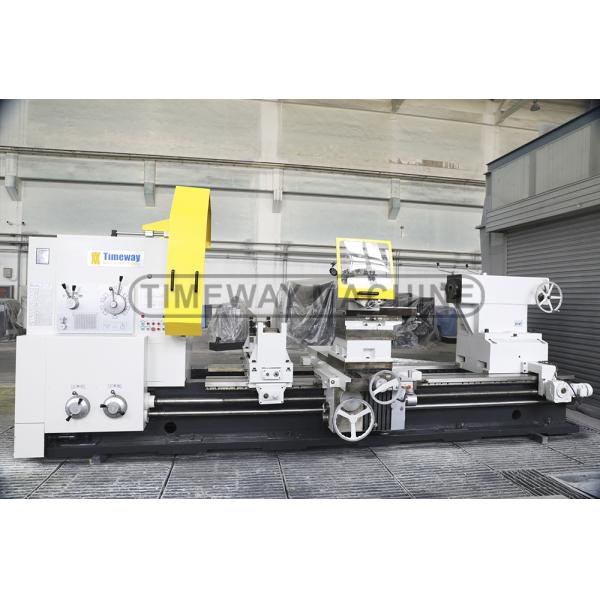

Horizontal Lathes Machine Heavy Duty Parallel Lathe Machine

♦♦♦ AL-1250

♦♦♦♦ AL-1600

♦♦♦♦♦ AL-1800

♦♦♦♦♦♦ AL-2000

Lathe Speed 3.15-315 21 Heavy Duty Parallel Lathe Machine 2000mm for Torno Paralelo

Product Description

Heavy-duty parallel Lathe Machines are suitable for various turning works, such as turning of external and internal cylindrical surfaces, end faces and turning of metric or inch threads, module threads and diametrical pitch threads, ect.

Motorized short taper turning could be done by the top slide independently, and long taper’s motorized turning could be done by top slide combined with longitudinal feed.

Features:

1. These heavy duty parallel lathe adopt 1100mm wide rectangular induction hardened and ground bed guide-ways, so of excellent stability, high rigidity and with maximum bearing of 16 tons between centers.

2. The main spindle is of precision roller bearings three-point supporting structure, make sure the high accuracy for the runout of the parallel lathe.

3. Saddle guideways with teflon belt coated, rotating tailstock quill structure to minimize friction and heat generation.

Main technical specifications:

Specification

Unit

AL-1250

AL-1600

AL-1800

AL-2000

Capacities

Swing over bed

mm

1250

1600

1800

2000

Swing over carriage

mm

900

1250

1280

1650

Max. length of workpiece

mm

3000 ~ 20000

Max. turning length

mm

2800 ~ 19800

Span of guideway

mm

1100

Spindle

Spindle nose code

mm

A2-15

Spindle thru bole

mm

100

Taper hole of spindle

-

metric 140

Number of forward turning speeds

kinds

21kinds

Number of reverse turning speeds

kinds

12kinds

Spindle speed

Forward

r/min

3.15~315

Reverse

r/min

3.5~291

Feed motion

Number of feeds per revolution(longitudinal/transverse)

kinds

56/56kinds

Feed per revolution

Longitudinal

mm/r

0.1~12(0.004"~0.473")

Transverse

mm/r

0.05~6(0.002"~0.236')

Upper tool-post

mm/r

0.025~3(0.001''~0.118")

Number and range of metric thread

mm

44;1~120mm

Number and range of inch thread

TPI

31; 28~1/4"

Number and range of module thread

mm

45;0.5~60mm

Number and range of diametrical pitch thread

DP

38;1/2~56DP

Tool post

Distance between spindle centerline and tool resting plane

mm

53

Section of tool shank

mm

50

Tool post swing range

°

±90°

Max. travel of top slide

mm

380

Max. travel of cross slide

mm

740(29")

850(33'')

850

850(33")

Tool post travel per turn of the slide of top or cross slide

mm

0.05(0.002")

Rapid travel speed

Longitudinal

mm/min

3740

Transverse

mm/min

1870

Top slide

mm/min

935

Tailstock

Diameter of tailstock quill

mm

200(8'')

Travel of tailstock quill

mm

300(12")

Taper hole of tailstock quill

Morse 6

Machine overall dimension

Height

mm

2120

2670

2770

2870

Width

mm

2360

Max. weight of workpiece

kg

15000 (AL-2000x3M)

Main structures:
Lathe Speed 3.15-315 21 Heavy Duty Parallel Lathe Machine 2000mm for Torno Paralelo

Spindle box & Carriage:

The spindle nose of parallel lathe is A2-15, standard equipped with 4-jaw chuck diameter 1600mm.

Parallel lathe machine can get 33steps spindle speed through gear-changes, make sure various kinds of processing requiremnt.

The lathe carriage can realize automatic cutting and rapid feed on the cross, longitudinal direction, and finish mechanical feeding for the top tool-post.

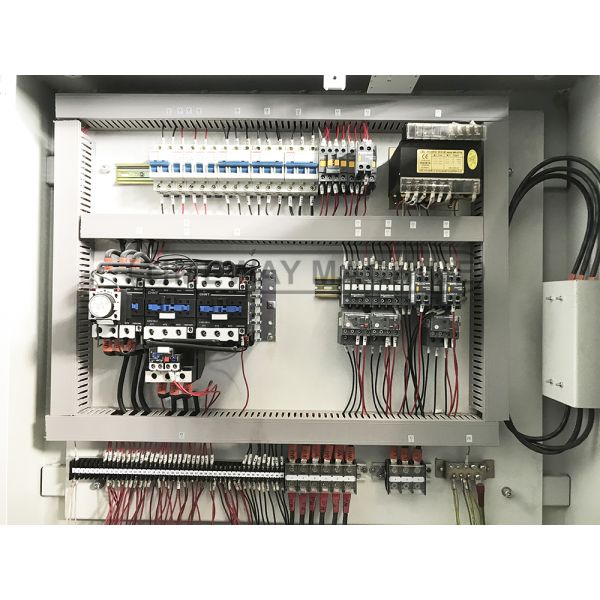

Electric cabinet:

The electric cabinet is installed on the back of the parallel, it is beautiful and convenient to transport.

The electric cabinet is conform to CE standard, all electrical components adopt famous-brand, the clients also choose brand you like.

 Lathe Speed 3.15-315 21 Heavy Duty Parallel Lathe Machine 2000mm for Torno ParaleloLathe Speed 3.15-315 21 Heavy Duty Parallel Lathe Machine 2000mm for Torno Paralelo
Lathe Speed 3.15-315 21 Heavy Duty Parallel Lathe Machine 2000mm for Torno Paralelo

Electric moving tailstock:

The heavy duty parallel lathe standard is equipped with electric moving tailstock, reduce the labor intensity of the operators.

Steady rest:

As a standard configuration, the steady rest meet cutting thin and long bar, to guarantee machining accuacy.

 Lathe Speed 3.15-315 21 Heavy Duty Parallel Lathe Machine 2000mm for Torno Paralelo
Lathe Speed 3.15-315 21 Heavy Duty Parallel Lathe Machine 2000mm for Torno Paralelo

Roller support:

The roller suppport is used for loading heavy and large parts, increase loading capacity up to 20tons of the parallel lathe.
Lathe Speed 3.15-315 21 Heavy Duty Parallel Lathe Machine 2000mm for Torno Paralelo
