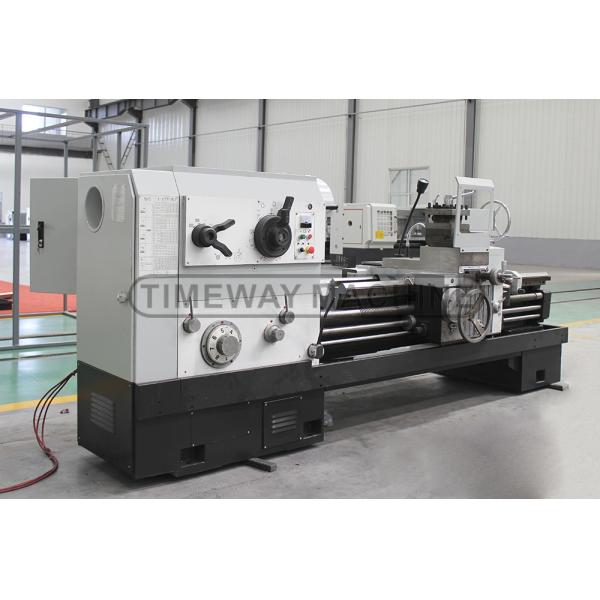

3900 KG Weight 3725x1473x1622 mm Hot Engine Lathe Metal Turning Machine for Thread Cutting

Specifications

Max. Length of Workpiece (mm) :

1500

Range of Spindle Speed(r.p.m) :

6 - 800 r.p.m

Machining Capacity :

Heavy Duty

Width of bed (mm) :

550

Type :

Horizontal

Spindle Motor Power(kW) :

Place of Origin :

Henan, China

Brand Name :

TIMAC

Model Number :

AL-800Bx1500

Voltage :

220V/380V/400V/415V/440V/460V

Dimension(L*W*H) :

3725x1473x1622 mm

Weight (KG) :

3900 KG

Warranty :

1 Year

Key Selling Points :

High-accuracy

Marketing Type :

Ordinary Product

Machinery Test Report :

Provided

Video outgoing-inspection :

Provided

Warranty of core components :

1 Year

CNC or Not :

Normal

Automatic Grade :

Semi-automatic

Color :

As order

Max. turning diameter :

800mm

Max. turning diameter over gap :

1000mm

Gap length :

300mm

Max. workpiece weight :

2000kg

Z-axis leadscrew pitch :

12mm

Threads kind :

Metric, Inch, Module, Diametrical

Guideway type :

V-flat type

Condition :

New

Spindle Bore(mm) :

100

Applicable Industries :

Building Material Shops, Machinery Repair Shops, Manufacturing Plant

Showroom Location :

Canada, United Kingdom, United States, Italy, France, Germany, Russia, Australia

Core Components :

Bearing, Pump, Gear, Motor, Gearbox, Pressure vessel

Max. Turned Length (mm) :

1350 mm

Year :

2021

Packaging Details :

wooden case

Port :

China Port

Supply Ability :

300 Set/Sets per Month .

Price :

$25,000.00/sets 1-2 sets

MOQ :

1 set

Description

2021 Hot China Engine Lathe Metal Turning Machine

∴ AL-800Bx1500 ∴

3900 KG Weight 3725x1473x1622 mm Hot Engine Lathe Metal Turning Machine for Thread Cutting

Product Description

Actual testing :

Cutting external surface:

3900 KG Weight 3725x1473x1622 mm Hot Engine Lathe Metal Turning Machine for Thread Cutting

Cutting end surface:

Standard accessories:

Optional accessaries:

3-jaw chuck
Steady rest (over 3M length)
Follow rest (over 3M length)
Manual moving tailstock
Dead center of tailstock
4-station tool post
Cooling system
Work lamp
Tools & tool-box
Leveling wedge and bolts
Operation manual (English)

4-jaw independent chuck
Face plate
2 or 3-axis digital indicator
Chuck guard
Tool-post guard
Rear splash guard
Quick changing tool post
Grinding attachment

Technical parameter:

Item		Unit	AL-630B	AL-800B	AL-940B
Capacities	Swing over bed	mm	630	800	940
	Swing over carriage	mm	350	520	660
	Max. length of workpiece	mm	750, 1000, 1500, 2000, 3000, 4000, 5000, 6000, 7000, 9000, 10000, -
	Max. turning length	mm	600, 850, 1350, 1850, 2850, 3850, 4850, 5850, 6850, 8850, 9850, -
	Span of guideway	mm	550	550	550
Spindle	Spindle nose		C11
	Spindle hole	mm	110
	Taper hole of spindle		1:20/120
	Range of spindle speeds	r/min	7.5~1000	6~800	6~800
	Number of spindle speeds		18kinds
Feed motion	Longitudinal and cross	r/min	64; 0.1~24.32
	Cross-to-longitudinal feed rate		1/2
	Screw pitch of leadscrew	mm	12
	Number and range of metric thread	mm	50; 1~240mm
	Number and range of inch thread	T.P.I	26; 14~1
	Number and range of module thread	mm	53; 0.5~120mm
	Number and range of diametrical pitch thread	T.P.I	24; 28~1
	Rapid traverse speed of carriage	mm/min	4000
	Max. travel of cross slide	mm	440	540	570
	Max. travel of top slide	mm	200
	Section of tool shank	mm	32
Tailstock	Diameter of tailstock quill	mm	100
	Travel of tailstock quill	mm	250
	Taper hole of tailstock quill		Morse 5
Other	Main motor power	kw	11
Other	Machine mass	kg	3200, 3400, 3700, 4200, 4700, 5800, 6800, 7800, 8800, 10800, 11800, -	3400, 3600, 3900, 4400, 4900, 6000, 7000, 8000, 9000, 11000, 12000, -	3900, 4100, 4400, 4900, 5400, 6500, 7500, 8500, 9500, 11500, 12500, -
Machine overall dimension	Length	mm	2958, 3275, 3725, 4225, 5225, 6275, 7355, 8355, 9275, 11275, 12275,-
	Width	mm	1393	1437	1430
	Height	mm	1537	1622	1690

Features:

These engine lathe are suitable mainly for turning internal and external cylindrical, conical and other swing surfaces as well as various metric, inch module and diametric pitch threads. They can also be used for broaching oil grooves and keyways.
The side wall of bed is constructed with double-rib plates, and the shape of internal ribs is of box type and bevel ribs combination.
On apron, there is a device operated by a single lever, used for rapid traverse of the carriage.
Spindle’s braking and rotating direction change is controllled by hydraulic system, or by hand operation according to your choice.
The saddle guideway is glued by “TSF” soft belt wear resisting materials.
We can equip with automatic feeding mechanism for the power lathe.
The top slid can be used independently for turning short cone, or in combination with longitudinal feeding turing long taper surface.

Machine details:

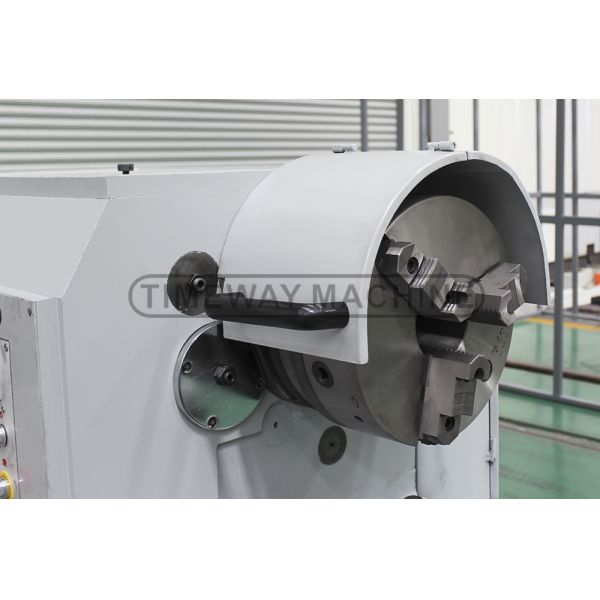

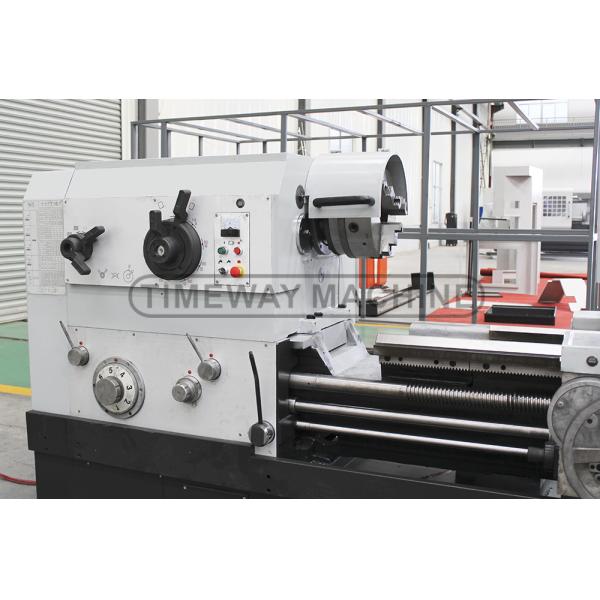

	3-jaw chuck: C11 spindle nose for connecting quickly 3-jaw or 4-jaw chuck. Optional chuck guard for the safety of the operators.
	Headsotck: 18steps spindle speed for meeting various kinds of processing requiremnts.

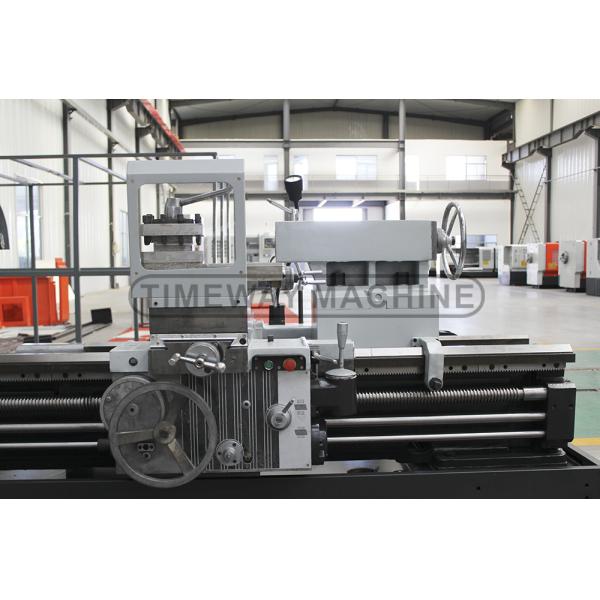

	Carriage & tailstock: All sliding surfaces are scraped by manual, the gap less than 0.04mm, in order to make sure machine accuracy and smooth moving.

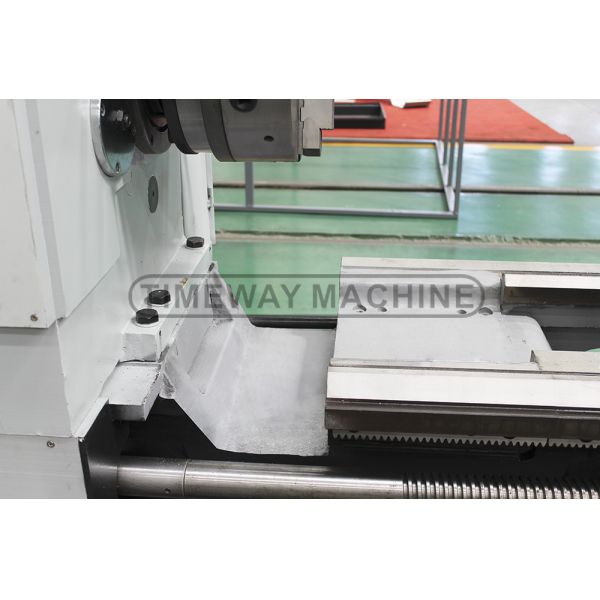

	Gap (optional): The gap bed lathe is equipped with a detachable gap to machining large diameter disc parts.

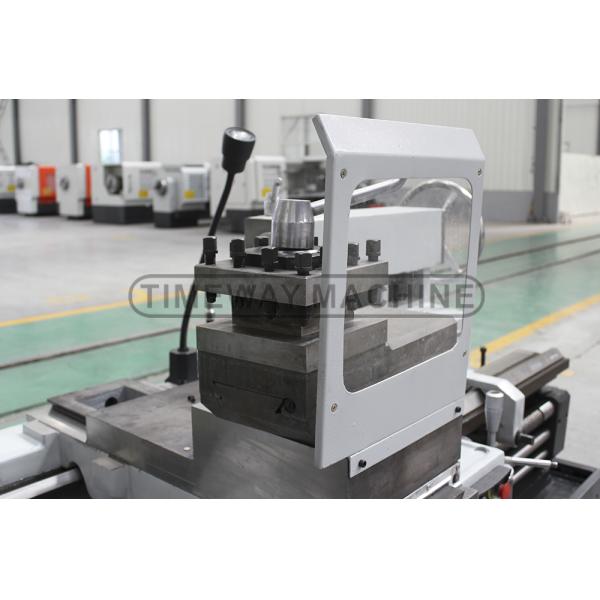

	4-staitions tool post: Manual 4-staitions tool post is standard, high positioning accuracy. The safety guard of the tool post comes optional.

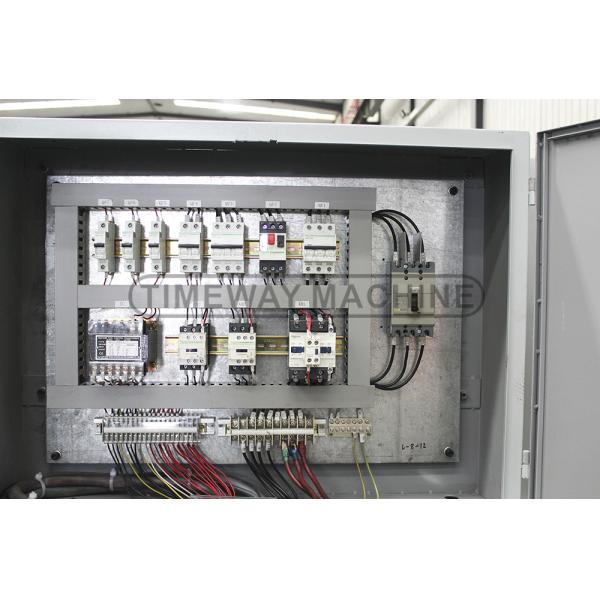

	CE-norm eclectrical cabinet: Adopt Schneider electrical components, high stability and reliable action.

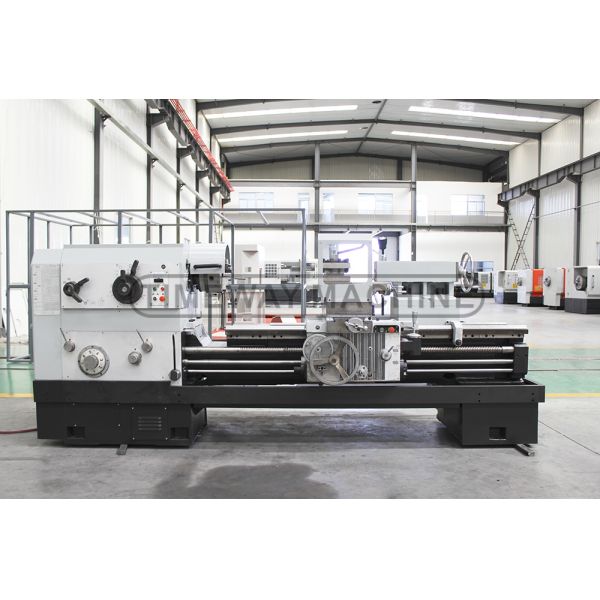

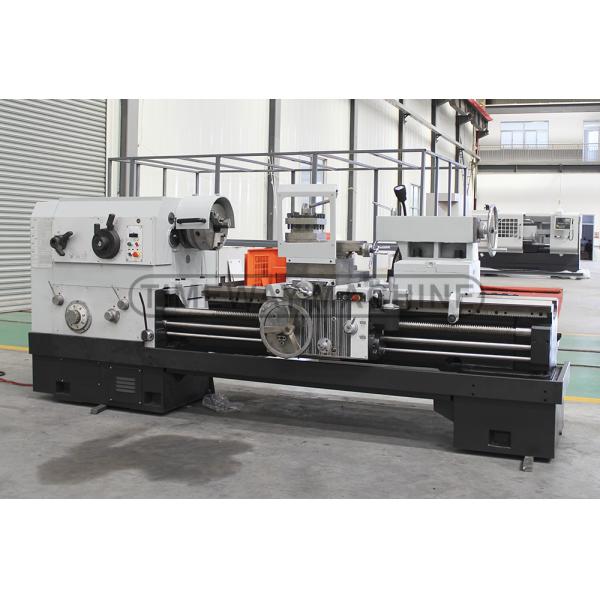

Finished machine:

3900 KG Weight 3725x1473x1622 mm Hot Engine Lathe Metal Turning Machine for Thread Cutting

Ready for shipment:

3900 KG Weight 3725x1473x1622 mm Hot Engine Lathe Metal Turning Machine for Thread Cutting

Company Introduction

3900 KG Weight 3725x1473x1622 mm Hot Engine Lathe Metal Turning Machine for Thread Cutting

Exhibition&Training

3900 KG Weight 3725x1473x1622 mm Hot Engine Lathe Metal Turning Machine for Thread Cutting

Customer Visiting

3900 KG Weight 3725x1473x1622 mm Hot Engine Lathe Metal Turning Machine for Thread Cutting

Why Choose Us

Why choose TIMEWAY MACHINE?

1 . High quality with competitive price;

2 . Professional R&D team and 25 years export experience;

3 . Exported more than 70 countries;

4 . CE, ISO Certificates;

5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);

6 . 12 months quality warranty;

7 . Oversea engineers available for problem resolving.

Our Services

3900 KG Weight 3725x1473x1622 mm Hot Engine Lathe Metal Turning Machine for Thread Cutting
