Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm
Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm
Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm
Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm
Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm
Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm
Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm
Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm
Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm
Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm
Specifications
Max. Length of Workpiece (mm) :
1000
Machining Capacity :
Medium Duty
Type :
Horizontal
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
T-1440W
Voltage :
380v 50hz
Dimension(L*W*H) :
1940x760x1520mm
Weight (KG) :
1200 KG
Warranty :
1 Year
Key Selling Points :
High-accuracy
Marketing Type :
Hot Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas
Color :
Customized Option
Max. workpiece length :
1000mm
Processing capacity :
Medium
Spindle bore :
40mm
Spindle taper :
MT5#
Spindle speed :
40-1800rpm(12steps)
Max. Swing Diameter :
356mm
Weight :
1200kg
Power :
1.5/2.4kw
Condition :
New
Spindle Bore(mm) :
40
Showroom Location :
Italy, Philippines, Peru, Indonesia, Mexico, Thailand, South Africa
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Other
Core Components :
Gear, Motor, Engine, Other
Max. Turned Length (mm) :
1000 mm
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
100 Set/Sets per Month
Price :
$5,000.00/sets 1-2 sets
MOQ :
1 set
Description

Universal Mechanical Precision Lathe

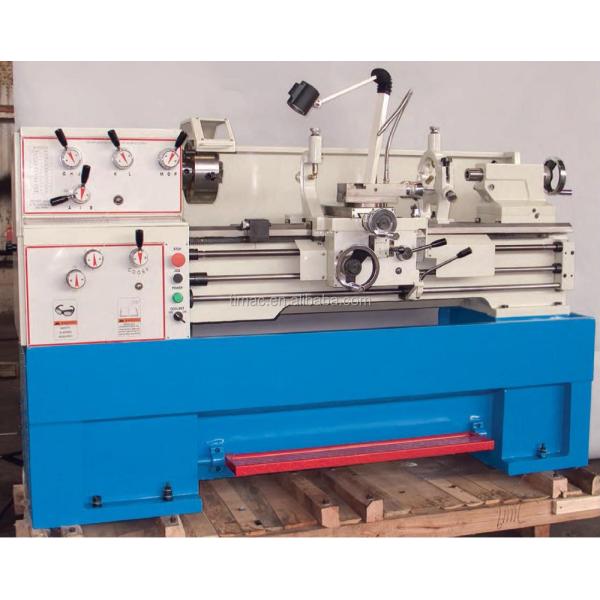

Main Outlook

Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm

Product Description

Feature:

Universal Mechanical Precision Lathe
1) Precision ground and supersonic frequency hardened bed ways.
2) The spindle is supported with precision roller bearing.
3) Headstock gears are made of high quality steel, ground and hardened
4) Removable gap is provided for larger diameter work
5) Easy operating gear box has various feeds and thread cutting function

Parameter:

Specification

Unit

T-

1236A

T-

1340A

T-

1440A

T-

1340B

T-

1440B

T-

1440W

*Capacity

Center height

mm

150

165

178

150

178

178

Max.swing over bed

mm

300

330

356

300

356

356

Max.swing over cross slide

mm

180

198

224

198

220

210

Max.swing in gap

mm

430

450

476

476

506

508

Distance between centers

mm

910

1000

*Spindle

Spindle nose

D4

Spindle bore

mm

38

40

Spindle bore taper

M.T.#5

Spindle speed

rpm

65-1810

(8 steps)

70-2000

(8 steps)

45-1800

(16steps)

40-1800

(12 steps)

*Feed

Longitudinal feed range

mm/rev

0.079-1.291

0.078-1.044

0.067-1.019

0.043-0.653

Cross feed range

mm/rev

0.017-0.276

0.22-0.298

0.018-0.275

0.015-0.220

*Threads

Metric threads

mm

0.4-7

0.45-10

0.45-10

0.4-7

Inch threads

T.P.I

4-60

21/4-40

31/2-80

4-112

*Tailstock

Tailstock bore taper

M.T.#3

*Other

Main motor

kw

1.5

1.5/2.4

Net weight/Gross weight

kg

540/590

560/600

580/620

495/595

750/880

1200/1300

Packing dimension

mm

1680x750x1420

1940×760×1520

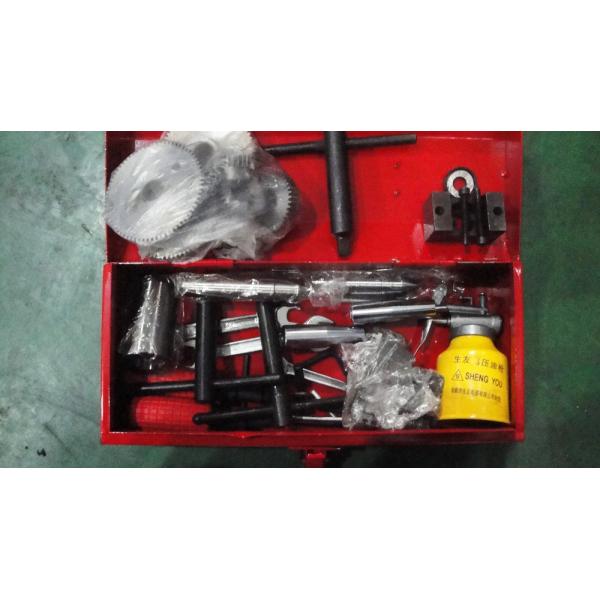

***Standard accessories:

3 jaw chuck, changing gears, dead center, reduction sleeve, oil gun, coolant system, working light,

4 jaw chuck, face plate, steady rest, follow rest, chasing dial indicator.

***Optional accessories:

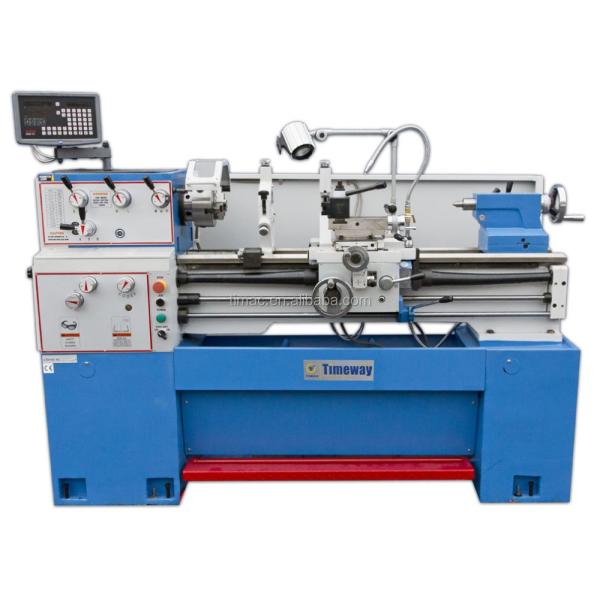

Digital readout system (DRO), quick change tool post & holders, taper turning attachment

OEM Program: Brand & Logo, Color & Vlotage can be appointed by you.

Delivery time: 30 days or so.

Packing : In wooden cases (Can be fumigated )

Payment terms: T/T with 30% down payment.

Warranty period: 1 year after delivery.

Spares & Technology Support Services

Choose "TIMEWAY MACHINE" is your right choice !!!

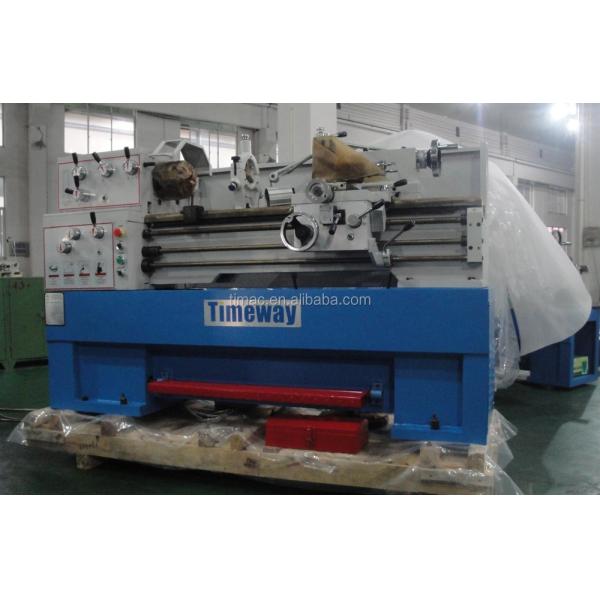

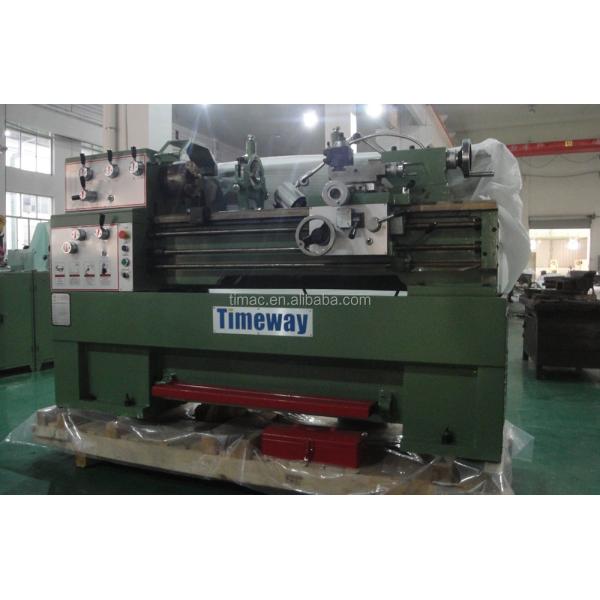

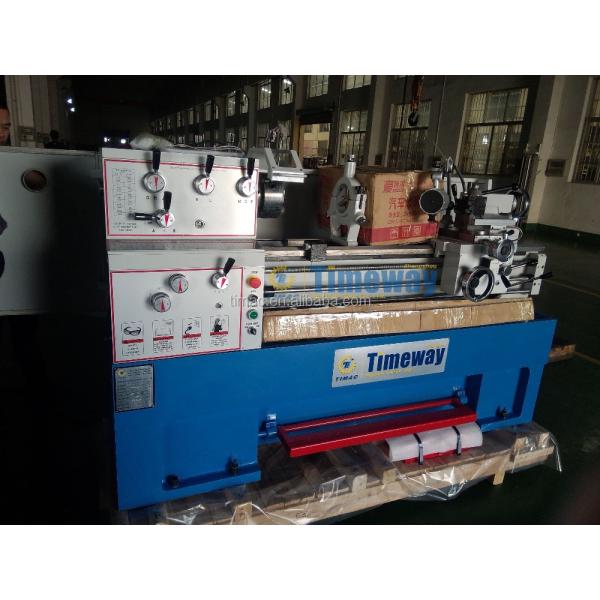

Detail Images

Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm

Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm

Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm
Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm
Company Information

Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm

Certifications

Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm

Customer Visited

Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm

Exhibitions

Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm

Packaging & Shipping

Medium Duty Universal Mechanical Precision Lathe with Max. Length of Workpiece 1000mm
