2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm
2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm
2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm
2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm
2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm
2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm
2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm
2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm
2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm
2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm
2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm
2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm
Specifications
Max. Length of Workpiece (mm) :
4000
Range of Spindle Speed(r.p.m) :
3.15 - 315 r.p.m
Machining Capacity :
Heavy Duty
Width of bed (mm) :
1100
Type :
Horizontal
Spindle Motor Power(kW) :
30
Place of Origin :
Henan, China
Brand Name :
TIMAC
Model Number :
AL-1600x4000
Voltage :
As customer's request
Dimension(L*W*H) :
7120x2130x2380mm
Weight (KG) :
17000 KG
Warranty :
1 Year
Key Selling Points :
High-accuracy
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Chuck diameter :
1250mm
Loading capacity :
16tons
Spindle speed steps :
33steps
Sliding rails :
Rectangular type guideways
Tailstock moving way :
Motorized
Tailstock quill feed ratio :
1:1 or 1:20
Cross stroke :
850mm
Longitudinal stroke :
4000mm
Top slide stroke :
360mm
Certification :
CE,ISO Standard
Condition :
New
Spindle Bore(mm) :
100
Applicable Industries :
Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Printing Shops, Construction works , Energy & Mining
Showroom Location :
Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Brazil, Peru, Mexico, Russia, Spain, Chile, Romania, Uzbekistan, Australia
Core Components :
Bearing, Pump, Gear, Motor, Gearbox, Pressure vessel
Max. Turned Length (mm) :
3800 mm
Year :
2021
Packaging Details :
wooden case
Supply Ability :
100 Set/Sets per Month
Price :
$85,000.00/sets 1-2 sets
MOQ :
1 set
Description

Precision Lathe Toolroom Horizontal Metal Turns For Sale Manufacturer

∴ AL-1250 ∴

∴ AL-1600 ∴

∴ Al-1800 ∴

∴ AL-2000 ∴

2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm

Product Description

Universal lathe machinery is suitable for processing large sized parts of castings, steels and non-ferrous metals. It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn metric various internal and external threads, such as inch, modulus and diameter.

Standard accessories:

Optional accessaries:

  • 4-jaw heavy duty independent chuck
  • Steady rest
  • Follow rest
  • Electric moving tailstock
  • Dead center of tailstock
  • 4-station tool post
  • Cooling system
  • Work lamp
  • Tools & tool-box
  • Leveling wedge and bolts
  • Operation manual (English)

  • Face plate
  • 2 or 3-axis digital indicator
  • Chuck guard
  • Tool-post guard
  • Rear splash guard
  • Quick changing tool post
  • Grinding attachment

Technical Parameter

Specification Unit AL-1250 AL-1600 AL-1800 AL-2000
Max. swing over bed mm 1250 1600 1800 2000
Max. swing over cross slide mm 900 1250 1450 1650
Distance between centers mm 3000/4000/5000/6000/8000/10000/12000/-
Max. turning length mm 2800/3800/4800/5800/7800/9800/11800/-
Bed width mm 1100 1100 1100 1100
Loading capacity tons 16 16 16 16
Spindle nose - A2-15 A2-15 A2-15 A2-15
Spindle bore mm 100 100 100 100
Spindle taper - Metric 140 Metric 140 Metric 140 Metric 140
Spindle speed range rpm Forward: 3.15-315, Reverse: 3.5-291
Spindle speed step steps Forward: 21, Reverse: 12
X/Z-axis feed kinds kinds 56 56 56 56
Feed range mm/r Longitudinal:0.1-12; Cross:0.05-6; Top tool-post: 0.025-3
Metric threads range (kinds) mm 1-120 (44) 1-120 (44) 1-120 (44) 1-120 (44)
Inch threads range (kinds) TPI 28-1/4 (31) 28-1/4 (31) 28-1/4 (31) 28-1/4 (31)
Module threads range (kinds) MP 0.5-60 (45) 0.5-60 (45) 0.5-60 (45) 0.5-60 (45)
Diametrical threads range (kinds) DP 1/2-56 (38) 1/2-56 (38) 1/2-56 (38) 1/2-56 (38)
Distance from spindle center to tool base mm 53 53 53 53
Tool post swivel angle ° ±90° ±90° ±90° ±90°
Cross slide travel mm 740 850 900 900
Top slide travel mm 360 360 360 360
Tool section size mm 50x50 50x50 50x50 50x50
Tool post feed per gar mm 0.05 0.05 0.05 0.05
Tailstock quill diameter mm 260 260 260 260
Tailstock quill travel mm 300 300 300 300
Tailstock quill taper - Metric 80 Metric 80 Metric 80 Metric 80
Main motor power kw 30 30 30 30
Machine length mm 6120/7120/8120/9120/11120/13120/15120/-
Machine width mm 2058 2130 2330 2430
Machine height mm 2200 2380 2480 2580

Features:

1. Mature structure: parallel turning machine is solid work, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting; When finished, the roundness error is not more than 0.015mm, the cylinder degree error is not more than 0.05mm in the measuring length of 300mm.

2. Highly rigid bed: The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts an intermediate frequency quenching grinding process. In the sliding guide surface, the anti-crawling guide plate technology is adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the occurrence of low-speed crawling.

3. Giant parallel lathe standard equipped with electric moving tailstock, reduce operator labor intensity and improve work efficiency.

4. Heavy duty lathe can be used to cut the short conical surface of the motor by the top tool post, and the long conical surface can be turned by the top tool post and the longitudinal feed.

5.High power, high rigidity and wide speed range for high speed and powerful cutting, speed range of 3.15-315rpm with 33 speeds.

6.The parallel heavy duty lathe is a heavy-duty machine tool with a maximum load-bearing capacity of 16 tons. It adopts wide rectangular guide rails with good stability and rigidity, bed width is 1100mm.

7.The tailstock quill is a rotatable structure, which reduces the wear and heat of the centers.

Customer acceptance:

2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm 2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm
2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm 2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm

Machine details:

2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm

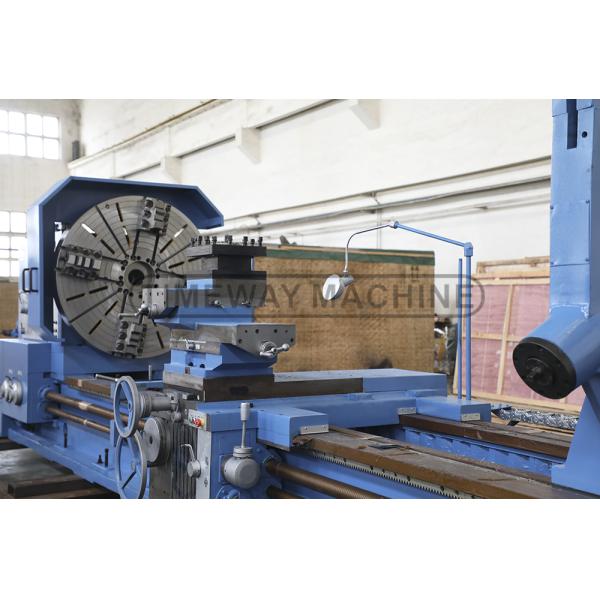

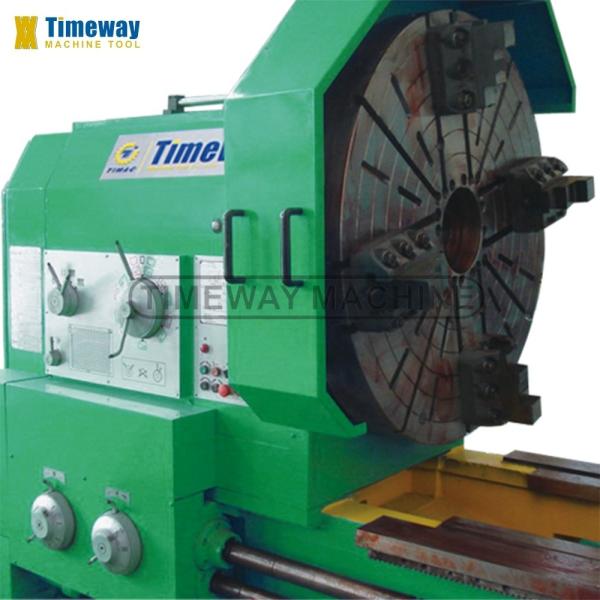

Spindle box & Carriage:

The spindle nose of parallel lathe is A2-15, standard equipped with 4-jaw chuck diameter 1600mm.

Parallel lathe machine can get 33steps spindle speed through gear-changes, make sure various kinds of processing requiremnt.

The lathe carriage can realize automatic cutting and rapid feed on the cross, longitudinal direction, and finish mechanical feeding for the top tool-post.

Guideway rails:

The cutting lathe adopts 1100mm width rails span, and uses rectangular type guideways, large loading capacity and higher stable.

2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm

2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm

Electric cabinet:

The electric cabinet is installed on the back of the parallel, it is beautiful and convenient to transport.

CE electrical components:

The electric cabinet is conform to CE standard, all electrical components adopt famous-brand, the clients also choose brand you like.

 2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm
2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm

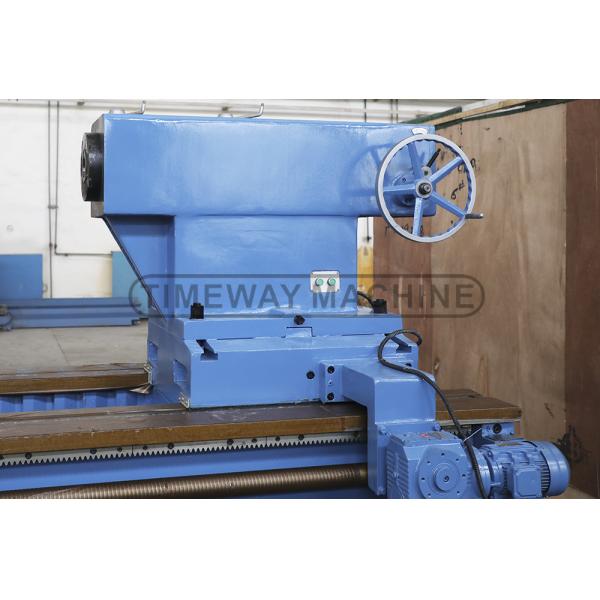

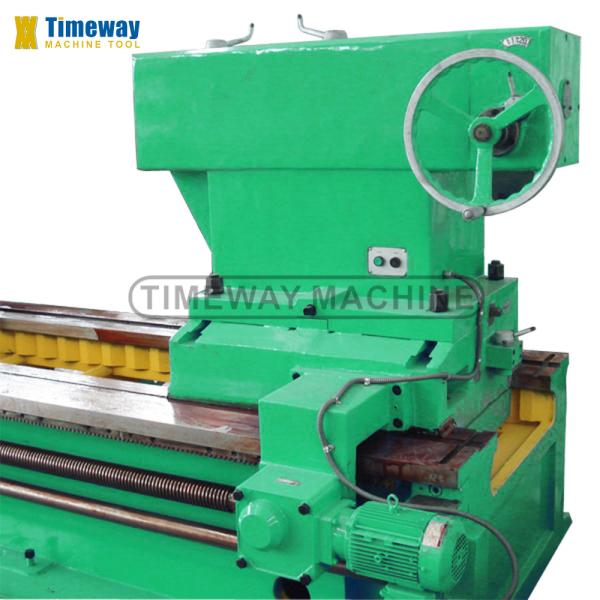

Electric moving tailstock:

The heavy duty parallel lathe standard is equipped with electric moving tailstock, reduce the labor intensity of the operators.

Steady rest:

As a standard configuration, the steady rest meet cutting thin and long bar, to guarantee machining accuacy.

 2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm
2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm

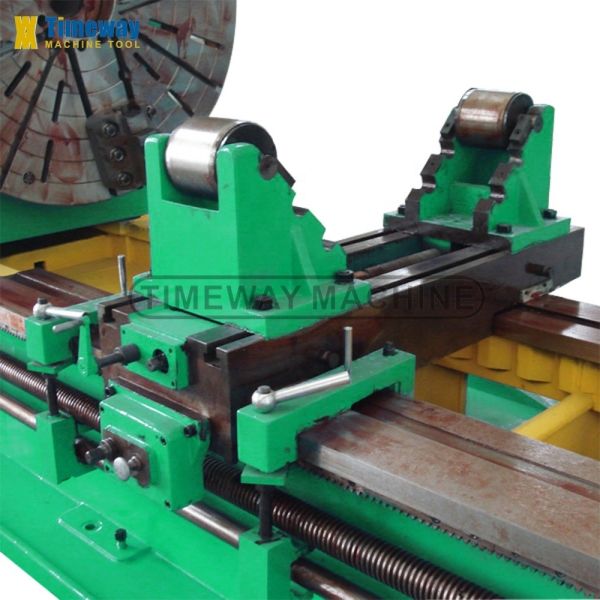

Roller support:

The roller suppport is used for loading heavy and large parts, increase loading capacity up to 20tons of the parallel lathe.
Finished machine:

2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm

2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm

2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm

2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm

2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm
Company Introduction

2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm

2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm

Why Choose Us
Why choose TIMEWAY MACHINE?

1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 70 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving.
2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm
Customer Visiting

2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm

Exhibition&Training

2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm

Our Services

2021 Year Horizontal Heavy Duty Metal Lathe Machine Max. Length of Workpiece 4000mm

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
