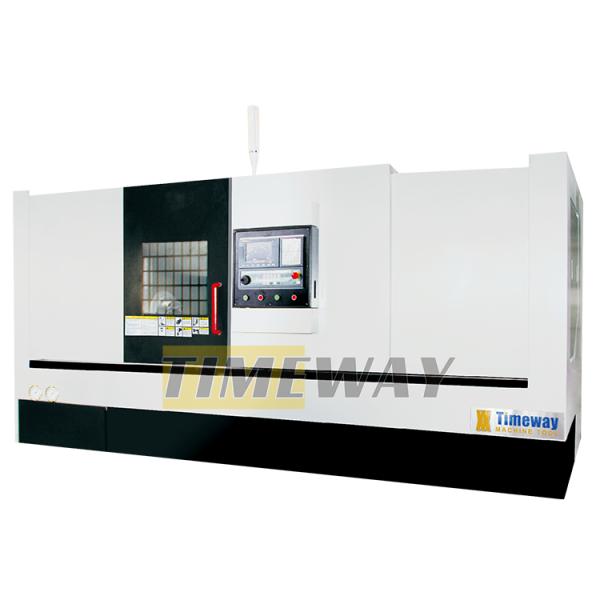

400 Cross Travel Slant Bed CNC Lathe Machine CK-63 for Customer's Requirement Voltage
400 Cross Travel Slant Bed CNC Lathe Machine CK-63 for Customer's Requirement Voltage
400 Cross Travel Slant Bed CNC Lathe Machine CK-63 for Customer's Requirement Voltage
400 Cross Travel Slant Bed CNC Lathe Machine CK-63 for Customer's Requirement Voltage
400 Cross Travel Slant Bed CNC Lathe Machine CK-63 for Customer's Requirement Voltage
400 Cross Travel Slant Bed CNC Lathe Machine CK-63 for Customer's Requirement Voltage
400 Cross Travel Slant Bed CNC Lathe Machine CK-63 for Customer's Requirement Voltage
400 Cross Travel Slant Bed CNC Lathe Machine CK-63 for Customer's Requirement Voltage
400 Cross Travel Slant Bed CNC Lathe Machine CK-63 for Customer's Requirement Voltage
400 Cross Travel Slant Bed CNC Lathe Machine CK-63 for Customer's Requirement Voltage
Specifications
Type :
Horizontal, CNC
Max. Length of Workpiece (mm) :
3000
Structure :
Slant Bed Lathe
Machining Capacity :
Heavy Duty
Width of bed (mm) :
600 mm
Spindle Motor Power(kW) :
22
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
400 mm
Travel (Z Axis)(mm) :
3200 mm
Place of Origin :
China
Dimension(L*W*H) :
2700*1730*1900mm
Brand Name :
TIMEWAY
Model Number :
CK-63
Voltage :
Customer's Requirement
CNC Control System :
FANUC
Tool Post Stations :
8
Weight (KG) :
7300
Warranty :
1 Year
Key Selling Points :
High-accuracy
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Max. Swing Over Bed :
660mm
Max.swing over cross slide :
500mm
Max.turning length :
3000mm
Spindle bore :
112mm
Cross travel (X) :
400
Longitudinal travel(Z) :
3200mm
Spindle speed :
1500rpm
Warranty period :
1 year
Condition :
New
Applicable Industries :
Building Material Shops, Machinery Repair Shops
Showroom Location :
Turkey, Italy, Brazil, Peru, Indonesia, Mexico, Russia, Argentina
Marketing Type :
Ordinary Product
Core Components :
Bearing, Motor, PLC, Other, Gearbox
Max. Spindle Speed (r.p.m) :
1500 r.p.m
Spindle Bore(mm) :
112
Max. Turned Length (mm) :
3000
Packaging Details :
in pallet/plywood case
Port :
China Port
Supply Ability :
100 Set/Sets per Month
Price :
$56,000.00/sets >=1 sets
MOQ :
1 set
Description
Product Description
slant bed CNC lathe
400 Cross Travel Slant Bed CNC Lathe Machine CK-63 for Customer's Requirement Voltage
Specification
Specification
Unit
CK-63
Max.Swing over bed
mm
660
Swing over over cross slide
mm
500
Standard turning diameter
mm
380
Max.turning diameter
mm
550
Max.turning length
mm
750/1500/3000
Max.diameter of bar
mm
90
Spindle speed
rpm
1500
Spindle nose
-
A2-11
Spindle bore
-
112
Chuck size
mm
380
Cross travel (X)
mm
400
Longitudinal travel(Z)
mm
860/1640/3200
X/Z-axis Rapid feed speed
m/min
12/16(slinding:12/12)
Hyraulic tool post type
-
125-12T
Tool section size
mm
25X25/φ40
Tailstock quill diameter
mm
150
Tailstock quill travel
mm
150
Tailstock quill travel taper
-
MT5,rotary
Bed structure
-
30°integral bed
Guideway type
-
Linear/sliding
Working accuracy
mm
IT6
X-axis repositioning accuracy
mm
0.008
Z-axis repositioning accuracy
mm
0.01/0.013
Roughness
um
Ra1.6
Power motor power
kw
22
Power supply
kva
50
Machine dimensions(LxWxH)
mm
3800/4400/5900x2200x2200
Machine weight
kg
5800/6500/7800
Client feedback
400 Cross Travel Slant Bed CNC Lathe Machine CK-63 for Customer's Requirement Voltage
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
400 Cross Travel Slant Bed CNC Lathe Machine CK-63 for Customer's Requirement Voltage
Factory Display：
400 Cross Travel Slant Bed CNC Lathe Machine CK-63 for Customer's Requirement Voltage
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
400 Cross Travel Slant Bed CNC Lathe Machine CK-63 for Customer's Requirement Voltage
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
400 Cross Travel Slant Bed CNC Lathe Machine CK-63 for Customer's Requirement Voltage
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
