Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
20000
Structure :
Flat Bed Lathe
Machining Capacity :
Heavy Duty
Max. Weight of Workpiece(kg) :
80000
Width of bed (mm) :
3100 mm
Spindle Motor Power(kW) :
143
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
2000 mm
Travel (Z Axis)(mm) :
20000 mm
Positioning Accuracy (mm) :
±0.01
Repeatability (X/Y/Z) (mm) :
±0.02
Place of Origin :
Henan, China
Dimension(L*W*H) :
As customer
Brand Name :
TIMAC
Model Number :
AK-3150H/3
Voltage :
380v 50hz
CNC Control System :
FANUC
Tool Post Stations :
Special use tool post
Weight (KG) :
200000
Warranty :
1 Year
Key Selling Points :
High Safety Level
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Automatic Grade :
Automatic
CNC or Not :
CNC
Machine Type :
Heavy duty Horizontal CNC Turning Lathe
Color :
Customized Option
Max. swing over tool-post :
2500mm
Bed type :
Fission bed
Max. weight of workpiece :
80T
Spindle speed :
0.4-80rpm
Chuck size :
2500mm
Max. Swing Diameter (mm) :
3150
Condition :
New
Spindle Bore(mm) :
130
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Printing Shops, Energy & Mining
Showroom Location :
Canada, United States, Italy, Mexico, Australia
Marketing Type :
Ordinary Product
Core Components :
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Gearbox, CNC system
Max. Turned Length (mm) :
20000
Max. Spindle Speed (r.p.m) :
80 r.p.m
Packaging Details :
Standard Package
Port :
China port
Supply Ability :
10 Set/Sets per Year
Price :
$500,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

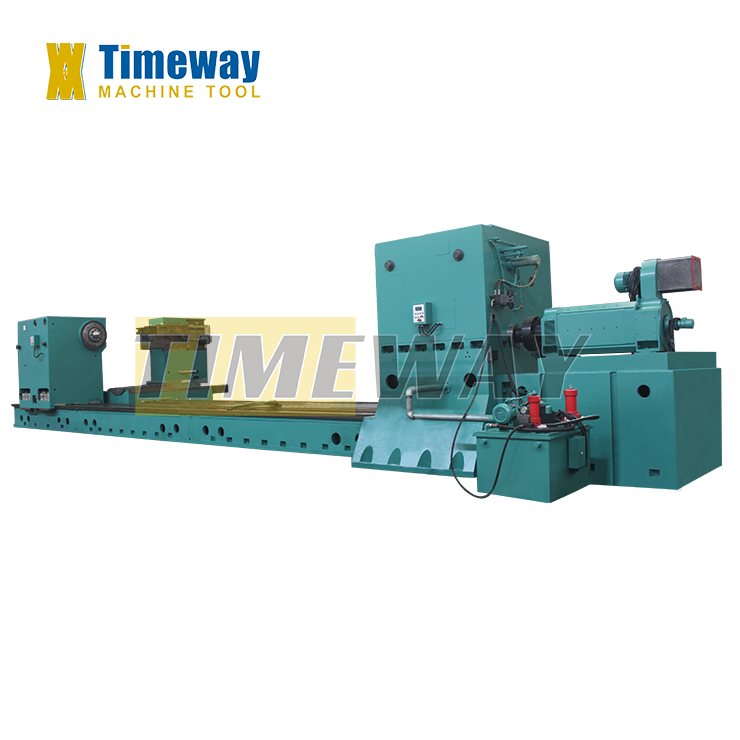

Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Features:
1. This series of machines is CNC heavy-duty horizontal lathe suitable for rough machining and finish machining of ferrous and non-ferrous metal workpiece with carbide, ceramic and other tools in facing, external cylindrical turning, taper cutting and curved shape.
2. Machine bed has Fission-bed guideways, and induction hardened to guarantee high accuracy, big load capacity and long life,Carriage guideways are fully protected with metal plate splash guards.
3. Main spindle drive is DC inverter motor with three steps hydraulic shift that brings wide speed change range of 1:200. Two step change headstock has spindle direct connected chuck structure. Main spindle is supported by imported high precision,radial backlash adjustable double row cylindrical roller bearings in optimal distance considering supporting distance and chuck diameter to get the best accuracy and stiffness.
4. X-axis and Z-axis movement is controlled by AC servo motors. X-axis adopts imported high precision ball screw and Z-axis adopts imported high precision backlash free worm rack structure to guarantee the highest feed accuracy and rapid traverse.
5. Various types of steady rests, roll chock stand, grinding attachment and milling attachment are available as option according to customer's choice.
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Specifications
Units
AK-3150H/3
AK-4000H/3
AK-5000H/3
AK-6300H/3
Max. swing over bed
mm
3150
4000
5000
6300
Max. swing over tool post
mm
2500
3000
4000
5000
Max. length or workpiece
m
5-20
5-20
5-20
5-20
Max. weight of workpiece between centers
t
80/100/120/150/200
100/120/150/200
100/120/150/200
100/120/150/200
Max. torque of face plate
kN.m
100-250
100-250
100-250
100-250
Width of bed
mm
Fission lathe bed
Fission lathe bed
Fission lathe bed
Fission lathe bed
Total cutting capacity
kg
9000/12500/16000
9000/12500/16000
9000/12500/16000
9000/12500/16000
Section dimension of tool shank
mm
80*80
80*80
80*80
80*80
Range of spindle speed
rpm
0.4-80
0.4-80
0.2-40
0.2-40
Chuck diameter
mm
2500
3200
3200
3200
Range of longitudinal feed
mm/r
1-2000
1-2000
1-2000
1-2000
Range of cross feed
mm/r
1-2000
1-2000
1-2000
1-2000
Longitudinal rapid traverse speed
mm/min
2000
2000
2000
2000
Cross rapid traverse speed
mm/min
2000
2000
2000
2000
Diameter of tailstock sleeve
mm
630/800/900
630/800/900
630/800/900
630/800/900
Power of main motor
kw
DC 143/160/185
DC 143/160/185
DC 143/160/185
DC 143/160/185
Why Choose Us
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Customized Heavy Duty Fission Bed Type CNC Horizontal Turning Machine Tools
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
