630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
Specifications
Type :
VERTICAL
Max. Length of Workpiece (mm) :
800
Machining Capacity :
Light Duty
Width of bed (mm) :
200 mm
Spindle Motor Power(kW) :
22
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
630 mm
Travel (Z Axis)(mm) :
700 mm
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
VTC800
Voltage :
220V/380V
CNC Control System :
FANUC
Tool Post Stations :
4
Weight (KG) :
6000
Warranty :
1 Year
Key Selling Points :
Automatic
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Max. turning diameter :
800
Max.swing diameter :
900
Chuck size :
15/18/21
Spindle speed :
100-1000
Tool post cross travel (X) :
630
X/Z-axis rapid feed speed :
4/6
Tool post type :
Gang-type/V4
Tool section size :
32x32
X/Z-axis positioning accuracy :
0.02
X/Z-axis repositioning accuracy :
0.012
Condition :
New
Spindle Bore(mm) :
100
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining
Showroom Location :
Egypt, Turkey, Romania
Marketing Type :
Other
Core Components :
PLC
Max. Turned Length (mm) :
800
Max. Spindle Speed (r.p.m) :
1000 r.p.m
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$25,000.00/sets 1-4 sets
MOQ :
1 set
Description
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
Products Description
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
GSK ,
Electric tools turret,
Electronic handwheel,
Lubrication system,
Cooling system,
Work lamp,
Pilot lamp,
Protection guard,
Heat exchanger,
Leveling blocks & bolts,
Tools & tool-box,
Operation manuals.
FANUC CNC system,
SIEMENS CNC system,
Air conditioner,
Chain type chip conveyor.
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
SPECIFICATION
UNIT
VTC800
Max. turning diameter
mm
800
Max.swing diameter
mm
900
Chuck size
15/18/21
Spindle speed
rpm
100-1000
Tool post cross travel (X)
mm
630
Tool post vertical travel (Z)
mm
700
X/Z-axis feed speed
mm/min
0.1-1000
X/Z-axis rapid feed speed
m/min
4/6
Tool post type
Gang-type/V4
Tool section size
mm
32x32
X/Z-axis positioning accuracy
mm
0.02
X/Z-axis repositioning accuracy
mm
0.012
Main motor power
kw
18.5/22
X-axis feed motor power
kw
2.3
Z-axis feed motor power
kw
2.3 (brake)
X/Z-axis feed motor torque
NM
15
Machine weight
kg
6000
Machine Details
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center

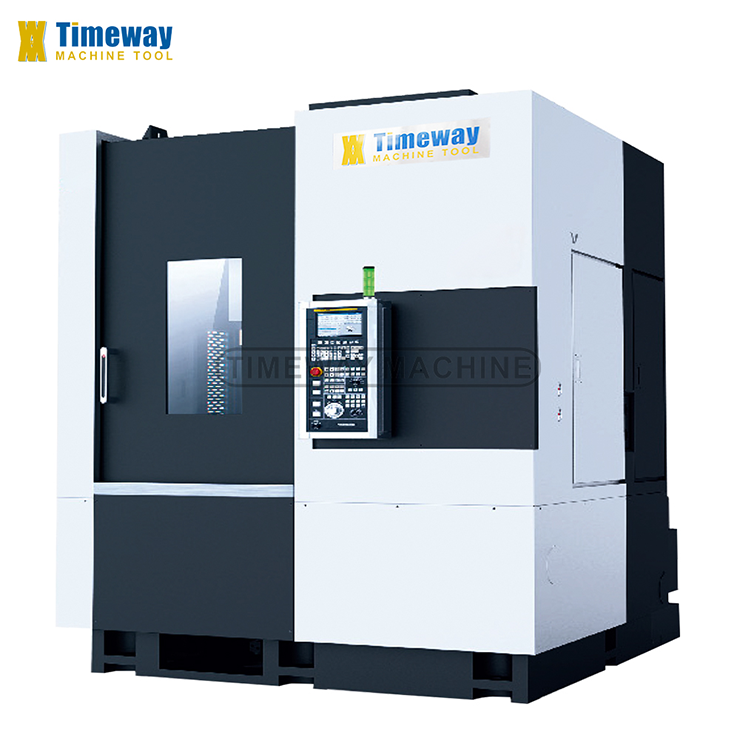

1. The series CNC single column vertical lathe is designed by absorbing modern advanced design and manufacturing techniques and using CAD optimization design method, using the latest design concept and equipping with domestic and foreign advanced features. 2. Realize strong cutting on the structure performance, the worktable overweight load, machine high dynamic and static stiffness, all movement safety and stability, long service life and high processing efficiency. 3. The machine is suitable for high speed steel and carbide cutting tools, processing workpieces of all ferrous and non-ferrous metals and some nonmetal materials. 4. The machine can complete the process of rough and finish turning inside and outside cylinder, inside and outside cone surface, plane surface, the circular arc surface and grooving. 5. The machine is mainly composed of column, worktable, beam, vertical tool post, main drive gearbox, beam lifting mechanism, vertical tool post feeding mechanism, beam guide protection device, complete machine full enclosure, electrical system, hydraulic system, cooling system, etc.

630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
===================================
>> Worktable uses integrated, highrigidity, high precision and short fixed-type spindle structure, the spindle is equipped with a set high precision thrust ball bearing and a set double row short cylindrical roller bearing. Compact structure, at the same time bear radial load, the axial load and tilting moment, and under the overloading elastic deformation is small, improved the precision of the rotation of the worktable and carrying capacity.
===================================

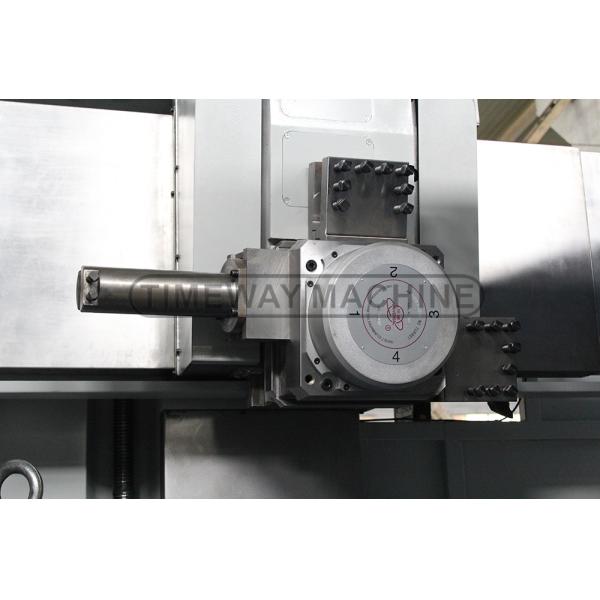

>> Four station electrical tool-post: high positioning accuracy, large clamping force, large loading capacity, stable and reliable. The unique dovetail cutter holder, more accurate positioning, greater clamping force.

630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
===================================
>> Customers can choose FANUC, SIEMENS, or KND, other CNC systems.
===================================
>> According to special requirements, the whole machine cover, chip conveyor。
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center

Test - roundness & cylindricity:

Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm

Test - verticality:

Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm

Test - roughness:

Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center

Threads turning test:

Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center

Comprehensive testing parts (only for CNC lathe):

All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
