800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
Specifications
Type :
TURNING CENTER
Max. Length of Workpiece (mm) :
3000
Machining Capacity :
Heavy Duty
Width of bed (mm) :
500 mm
Spindle Motor Power(kW) :
15
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
420 mm
Travel (Z Axis)(mm) :
380 mm
Place of Origin :
China
Dimension(L*W*H) :
5177x1800x1850
Brand Name :
TIMAC
Model Number :
QK-130/QK-200/QK-225
Voltage :
220V/380V
CNC Control System :
FANUC
Tool Post Stations :
4
Weight (KG) :
6000
Warranty :
1 Year
Key Selling Points :
Multifunctional
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Pipe threading range :
30-120
Max. swing over bed :
800
Max.swing over cross slide :
450
Max. length of workpiece :
1000/1500/2000/3000
Max.turning length :
800/1350/1800/2800
Bed width :
550
Spindle nose :
C15
Spindle taper :
Metric 140
Spindle bore :
130
Spindle center taper :
MT6
Condition :
New
Applicable Industries :
Hotels, Machinery Repair Shops, Manufacturing Plant, Restaurant
Showroom Location :
United States, Germany, Viet Nam, Philippines, Indonesia, India, Russia, Spain, Thailand, Algeria, Sri Lanka, Bangladesh, South Africa
Marketing Type :
Other
Core Components :
Other
Max. Turned Length (mm) :
3000
Max. Spindle Speed (r.p.m) :
1000 r.p.m
Spindle Bore(mm) :
240
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$65,000.00/sets 1-2 sets
MOQ :
1 set
Description

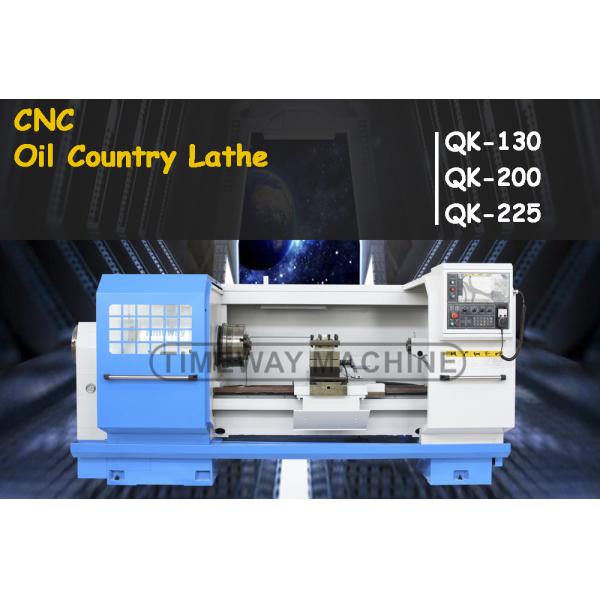

800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
Products Description
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
Applications of the CNC oil country lathe:
The CNC oil country lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries, and in agricultural irrigation and drainage, it is able to cut various straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings and water pump pipes more economically and efficiently as compared with the engine lathe, however, it may serve as an engine lathe to cut various metric, withworth and module threads, shafts and disks.
››››› The lathe is equipped with a taper turning attachment which can work out long taper.
››››› The lathe is equipped with double chucks which can powerful clamp long parts.
››››› The lathe is equipped with rear support which can auxiliary support longer parts.
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
√ FANUC/SIEMENS/GSK CNC system
√ Big bore chuck (Front & Rear)
√ Dead centers
√ 4-station electric tool-post
√ Cooling system
√ Work lamp
√ Pilot lamp
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Automatic lubrication system
√ Oil gun
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)

_ Pneumatic chuck
_ Other tool post
_ Steady rest
_ Follow rest
_ Air conditioner
_ Chip conveyor
_ Rear support for long pipe
_ Live centers



800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
Specification
Unit
QK-130
QK-200
QK-225
Capacity
Swing over bed
mm
630/800
630/800
630/800
Swing over cross slide
mm
340/540
340/540
340/540
Distance between centers
mm
1000/1500/3000
1000/1500/3000
1000/1500/3000
Pipe threading range
mm
30-126
50-193
50-220
Bed width
mm
550
550
550
Max. load capacity
kg
3000
3000
3000
Spindle
Spindle bore
mm
130
200
225
Spindle speed steps
steps
stepless (3shifts)
stepless (manual 4shifts) or (hydraulic 4shifts)
stepless (manual 4shifts) or (hydraulic 4shifts)
Spindle speed
rpm
30-650
20-500
20-500
Chuck size
mm
400
500
500
Chuck type
-
Manual 3-jaw
Manual 3-jaw
Manual 3-jaw
Turret
Turret type
-
Electrical 4-stations
Electrical 4-stations
Electrical 4-stations
Tool shank size
mm
32x32
32x32
32x32
Feed
X-axis travel
mm
320/420
320/420
320/420
Z-axis travel
mm
850/1350/2850
850/1350/2850
850/1350/2850
X-axis rapid feed speed
mm/min
4000
4000
4000
Z-axis rapid feed
mm/min
6000
6000
6000
Tailstock
Tailstock quill diameter
mm
100
100
100
Tailstock quill taper
-
MT5
MT5
MT5
Tailstock quill travel
mm
250
250
250
Power
Main motor power
kw
11
11
11
Coolant motor power
kw
0.125
0.125
0.125
Others
Machine dimensions
mm
3300/3800/5300x1800x1750
3300/3800/5300x1800x1750
3300/3800/5300x1800x1750
Machine weight
kg
4500/5000/6000
4600/5100/6100
4700/5200/6200
Machine Details
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision

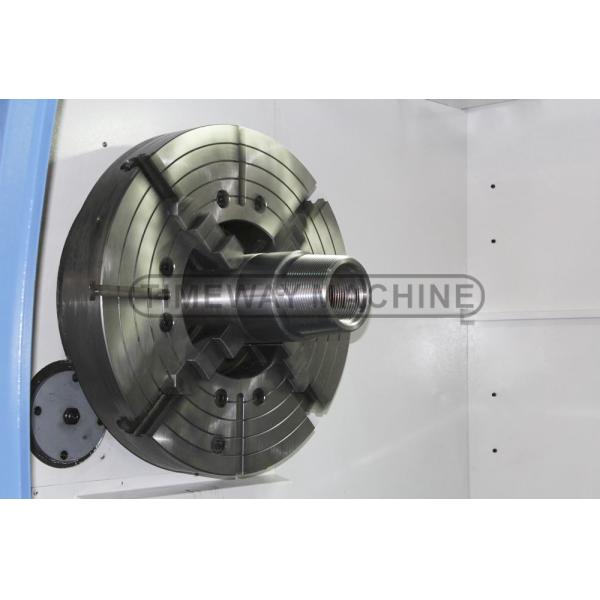

Double chucks (Front & Rear):

The lathe standard is equipped with dual chucks (3-jaw or 4-jaw), the spindle can meet different diameter long-bars, the spindle bore includes 130mm, 200mm, 225mm, 255mm, 280mm, 300mm, 330mm, 360mm, 390mm, 440mm, 520mm, 630mm, and customized spindle bore ( 5.1" ~ 24.8” ).
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision

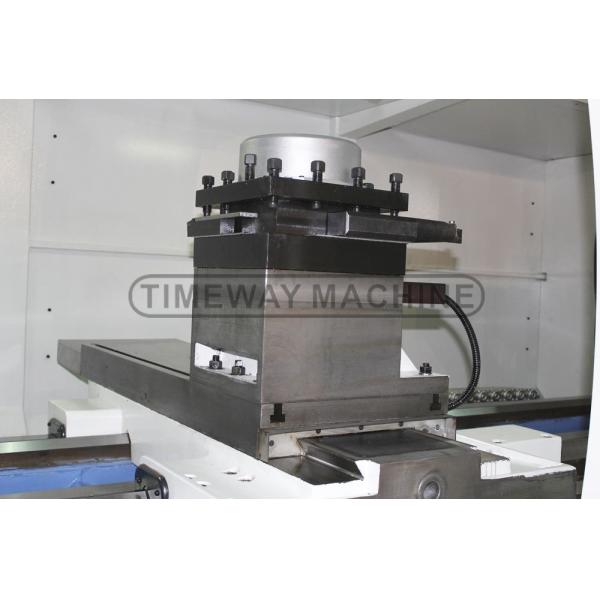

4-stations electric turret:

- Adopt famous brand electric turret, high positioning accuracy. Other tool post comes optional.

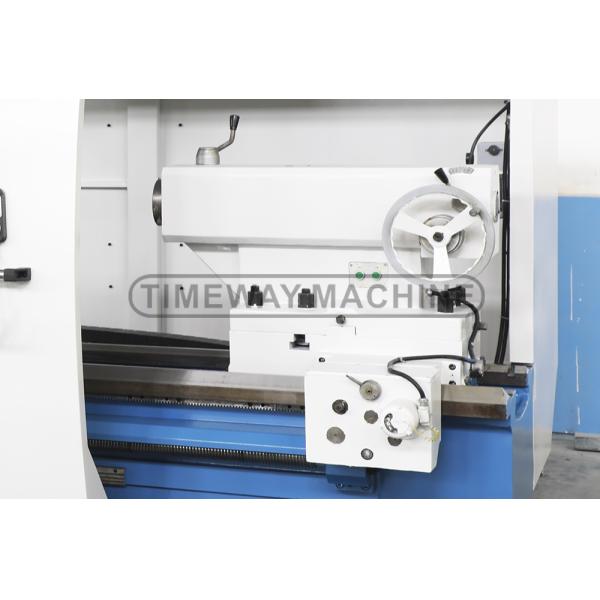

Tailstock:

- Manual moving tailstock comes standard, the electric moving taisltock comes optional.

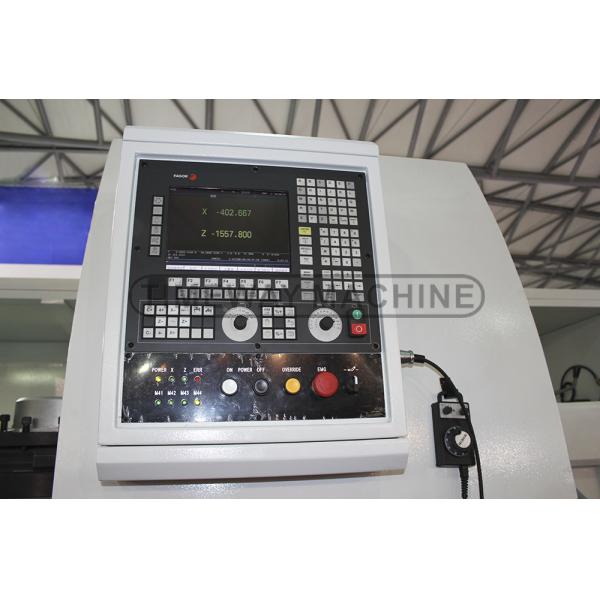

CNC system:

SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision

Automatic Production Line for Steel Pipe Threads (optional):
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision

Test - roundness & cylindricity:

Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm

Test - verticality:

Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm

Test - roughness:

Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision

Threads turning test:

Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision

Comprehensive testing parts (only for CNC oil country lathe):

All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
Why Choose Us
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
Renishaw laser interferometer (only for CNC oil country lathe)：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
Company Introduction
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision
