Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
4000
Structure :
Flat Bed Lathe
Machining Capacity :
Heavy Duty
Max. Weight of Workpiece(kg) :
6000
Width of bed (mm) :
755 mm
Spindle Motor Power(kW) :
30
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
570 mm
Travel (Z Axis)(mm) :
4000 mm
Positioning Accuracy (mm) :
±0.01
Repeatability (X/Y/Z) (mm) :
±0.008
Place of Origin :
Henan, China
Dimension(L*W*H) :
7300x2530x2150mm
Brand Name :
TIMAC TIMEWAY
Model Number :
AK-1250B/AK-1000B
Voltage :
As request
CNC Control System :
FANUC
Tool Post Stations :
4
Weight (KG) :
13000
Warranty :
1 Year
Key Selling Points :
High Safety Level
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Processing type :
Automatic
Turret Type :
4/6/8 Station Electric Turret
Tool change time :
2.6s
Turret positioning accuracy :
0.01mm
Tool section size :
40x40mm
Chuck size :
1000mm
Tailstock quill taper :
MT6
Tailstock quill diameter :
160mm
Tailstock quill travel :
300mm
After-sales Service Provided :
Online support
Condition :
New
Spindle Bore(mm) :
130
Toolpost Brand :
Yantai
Applicable Industries :
Garment Shops, Building Material Shops, Machinery Repair Shops, Restaurant, Retail, Printing Shops, Energy & Mining
Showroom Location :
Canada, Turkey, United Kingdom, United States, Italy, Germany, Brazil, Mexico, Russia, Spain, Uzbekistan, Australia
Year :
latest day
Max. Spindle Speed (r.p.m) :
320 r.p.m
Max. Turned Length (mm) :
3800
Marketing Type :
Hot Product 2021
Core Components :
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Gearbox, CNC system
Packaging Details :
In plywood cases.
Port :
China Port
Supply Ability :
200 Set/Sets per Month
Price :
$100,000.00/sets 1-2 sets
MOQ :
1 set
Description

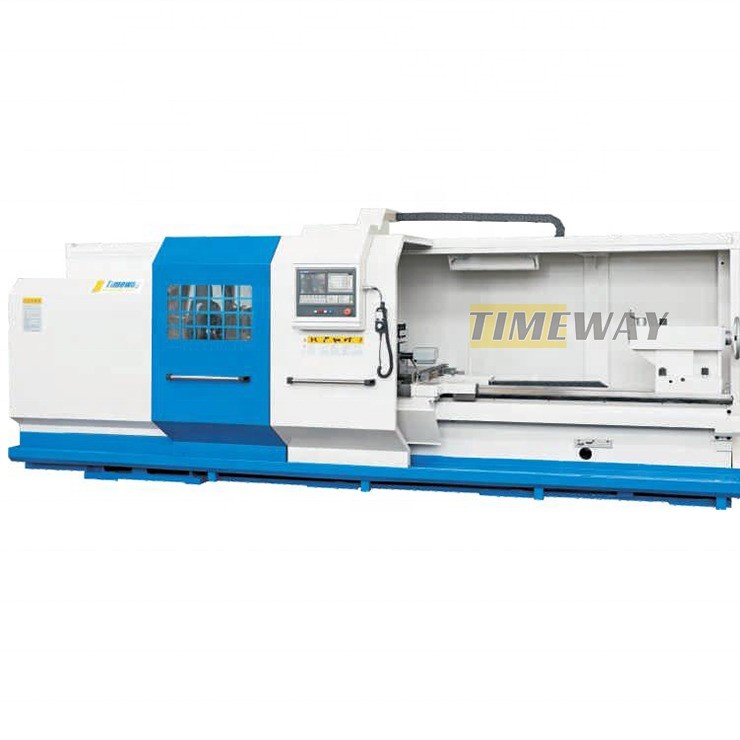

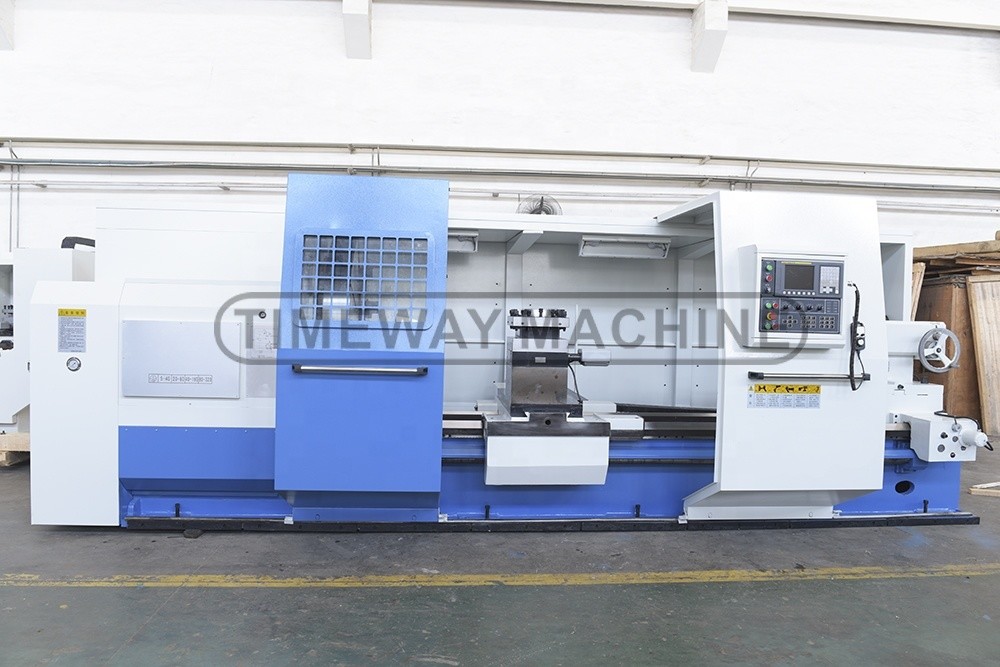

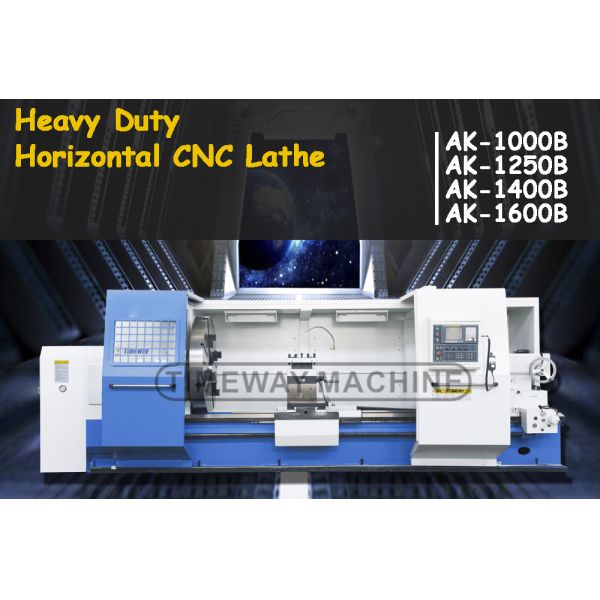

heavy duty horizontal cnc lathe
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing
Products Description
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing
√ FANUC/GSK/SIEMENS CNC system
√ 4-jaw chuck
√ 4-station electric tool-post
√ Work lamp
√ Cooling system
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Dead centers
√ Oil gun
√ Pilot lamp
√ Automatic lubrication pump
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ Electric moving tailstock
√ Steady rest
√ Follow rest
√ 6-station tool-post
√ Live centers
√ Air conditioner
√ Chip conveyor
√ Full guard
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing
Specification
Unit
AK-1000B
AK-1250B
AK-1400B
AK-1600B
Max. swing over bed
mm
1000
1250
1400
1640
Max.. swing over cross slide
mm
630
880
1030
1250
Distance between centers
mm
1000/1500/2000/3000/4000/5000/6000/8000/10000/12000/-
Max. turning length
mm
730/1300/1800/2800/3800/4800/5800/7800/9800/11800/-
Bed width
mm
755
755
755
755
Loading capacity
kg
6000 (opt: 8000)
6000 (opt: 8000)
6000 (opt: 8000)
6000 (opt: 8000)
Spindle nose
mm
A2-15
A2-15
A2-15
A2-15
Spindle bore
mm
130
130
130
130
Spindle taper
-
Metric 140
Metric 140
Metric 140
Metric 140
Spindle speed (Hydraulic 4steps, stepless)
rpm
5-320
5-320
5-320
5-320
Center height
mm
500
625
700
820
Chuck size (4-jaw)
mm
1000
1000
1000
1000
X/Z-axis min. feed unit
mm
0.001/0.001
0.001/0.001
0.001/0.001
0.001/0.001
X/Z-axis rapid feed speed
mm/min
3000/5000
3000/5000
3000/5000
3000/5000
Cross travel (X)
mm
570
570
690
630
Tool post type
-
V4/V6/V8
V4/V6/V8
V4/V6/V8
V4/V6/V8
Tool change time
s
2.6
2.6
2.6
2.6
Turret repeat positioning accuracy
mm
0.01
0.01
0.01
0.01
Tool section size
mm
40x40
40x40
40x40
40x40
Tailstock quill diameter
mm
160
160
160
160
Tailstock quill travel
mm
300
300
300
300
Tailstock quill taper
-
MT6
MT6
MT6
MT6
CNC system
-
FANUC/GSK/SIEMENS
FANUC/GSK/SIEMENS
FANUC/GSK/SIEMENS
FANUC/GSK/SIEMENS
Working accuracy
-
IT6-IT7
IT6-IT7
IT6-IT7
IT6-IT7
Surface roughness
µm
Ra1.6
Ra1.6
Ra1.6
Ra1.6
Main motor power
kw
30
30
30
30
Machine weight
kg
9800/10200/10600/11800/13000/14800/16600/20600/24600/28600/-
Machine length
mm
4300/4800/5300/6300/7300/8300/9300/11300/13300/15300/-
Machine width
mm
2530
2530
2780
2780
Machine height
mm
2150
2150
2600
2600
Machine Details

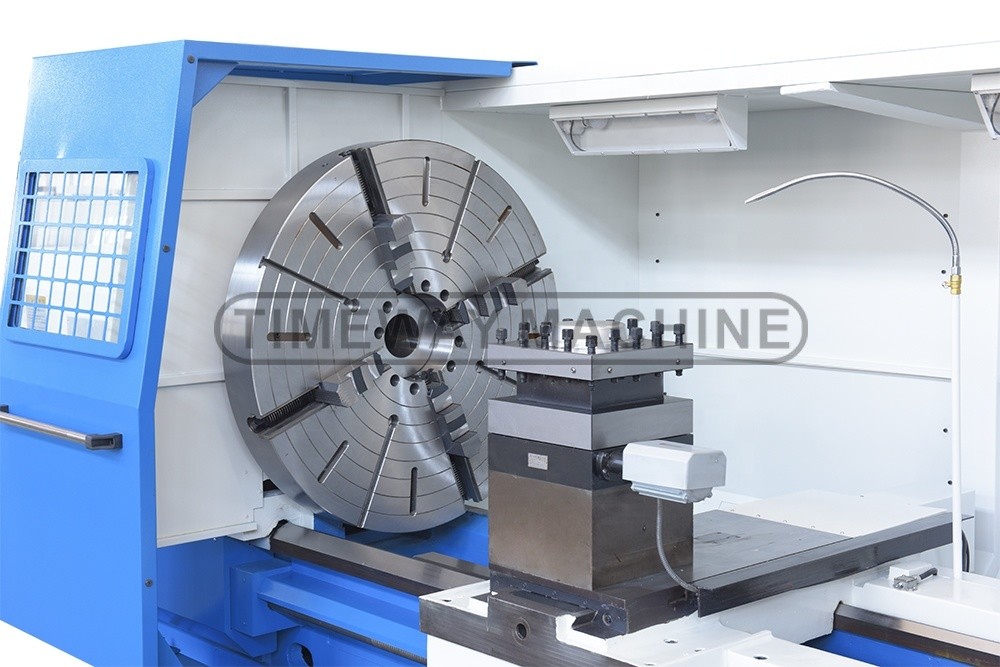

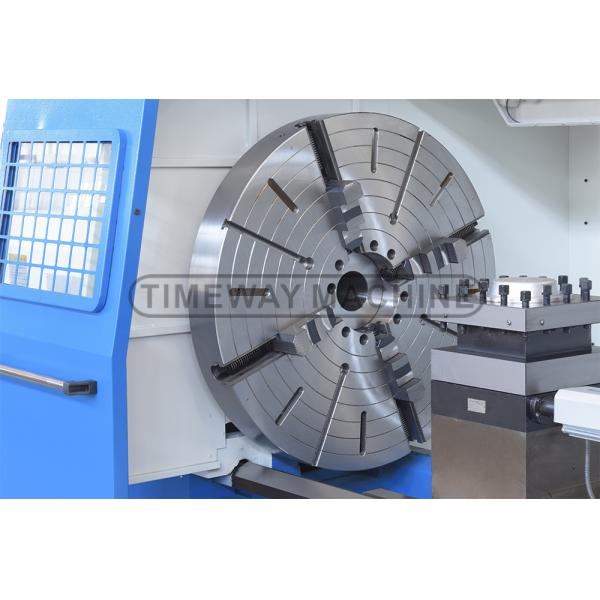

Chuck：

- Standard 4-jaw independent chuck to clamping special-shape parts.

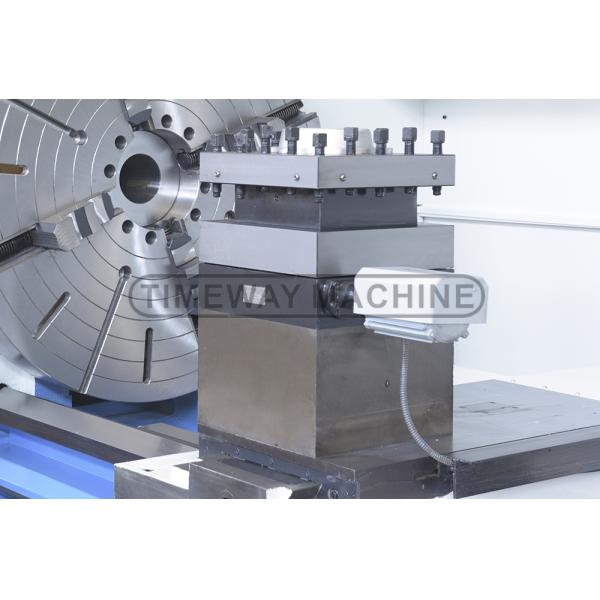

4-stations electric turret:

- Adopt famous brand electric turret, high positioning accuracy.

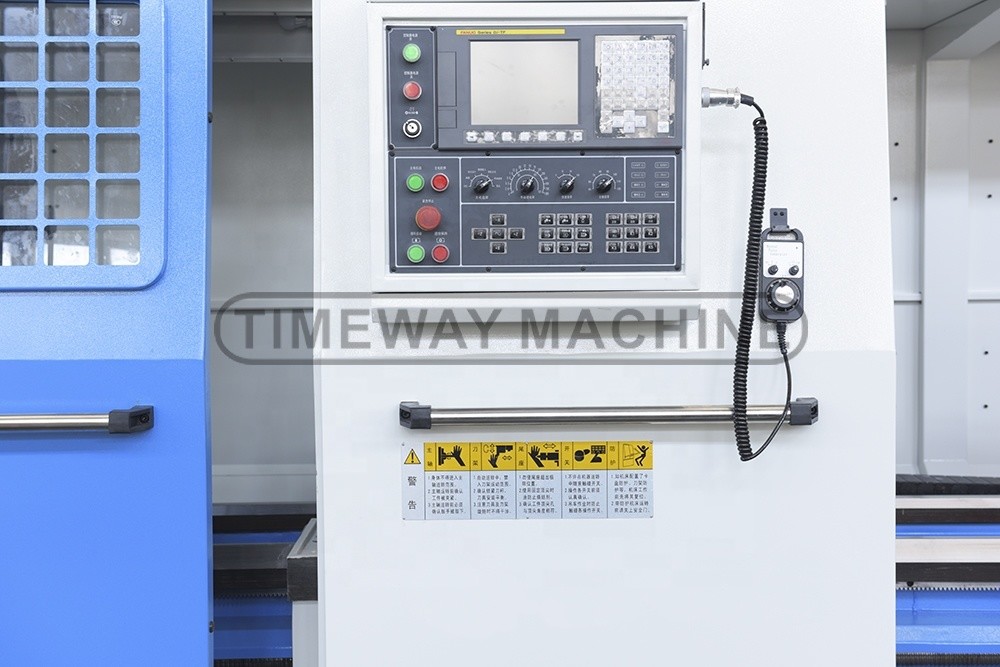

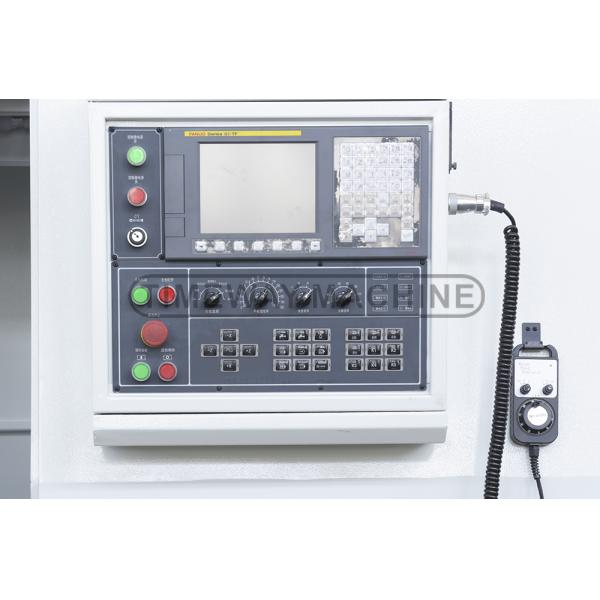

CNC system:

SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing

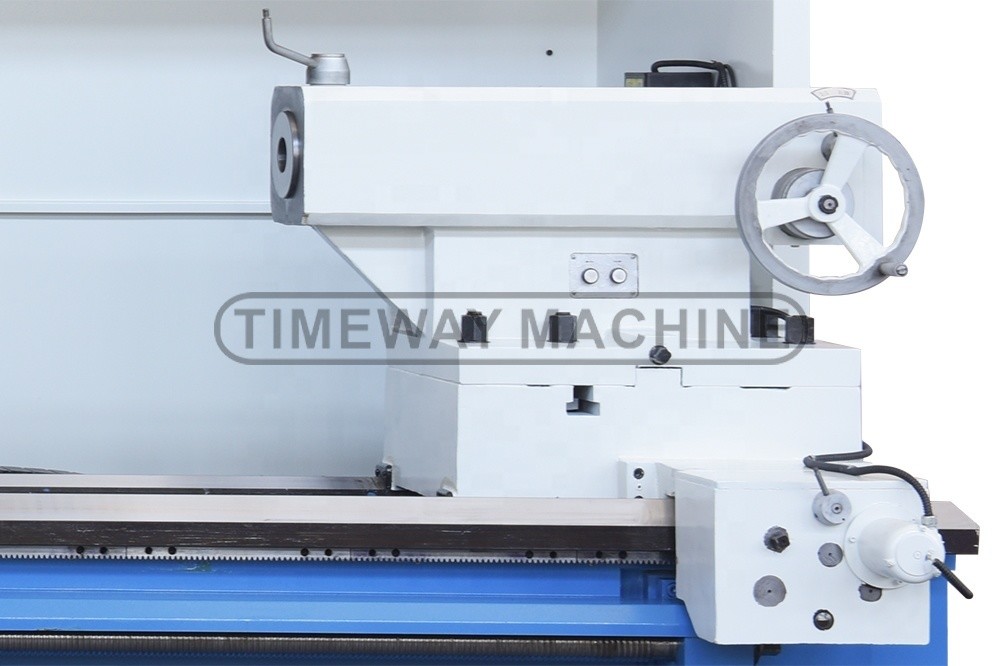

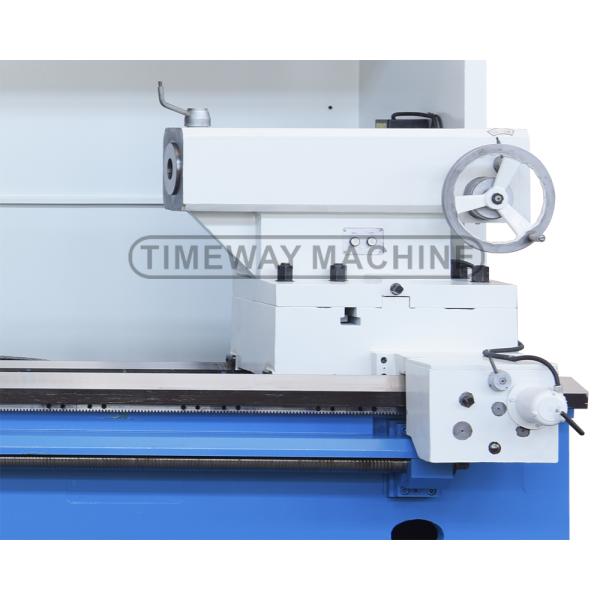

Tailstock:

Manual moving tailstock comes standard, the electric moving taisltock comes optional.

CE-norm electric cabinet:

Clear and neat electric layout;
Adopt CE standard electric components.

Automatic lubrication pump:

Automatically and intermittently lubricate each guide rails to extend the service life of the machine.
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing

4-stations vertical turret:

Standard

6-stations vertical turret:

Optional

6-stations horizontal turret:

Optional
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing

Test - roundness & cylindricity:

Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm

Test - verticality:

Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm

Test - roughness:

Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing

Threads turning test:

Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing

Comprehensive testing parts:

All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing
Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing
