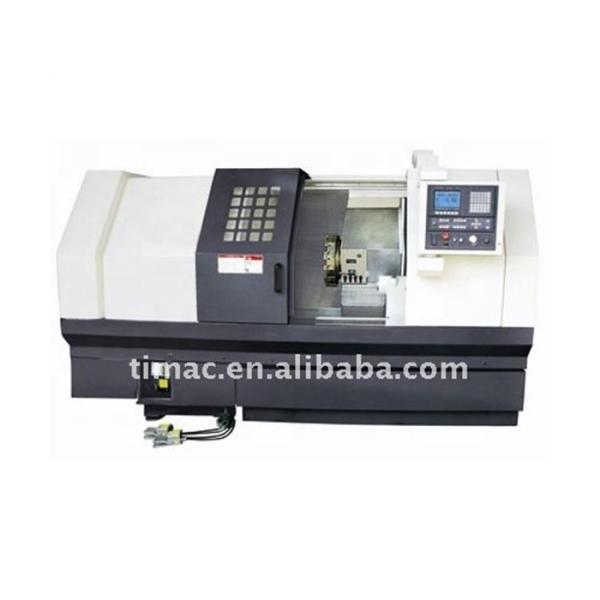

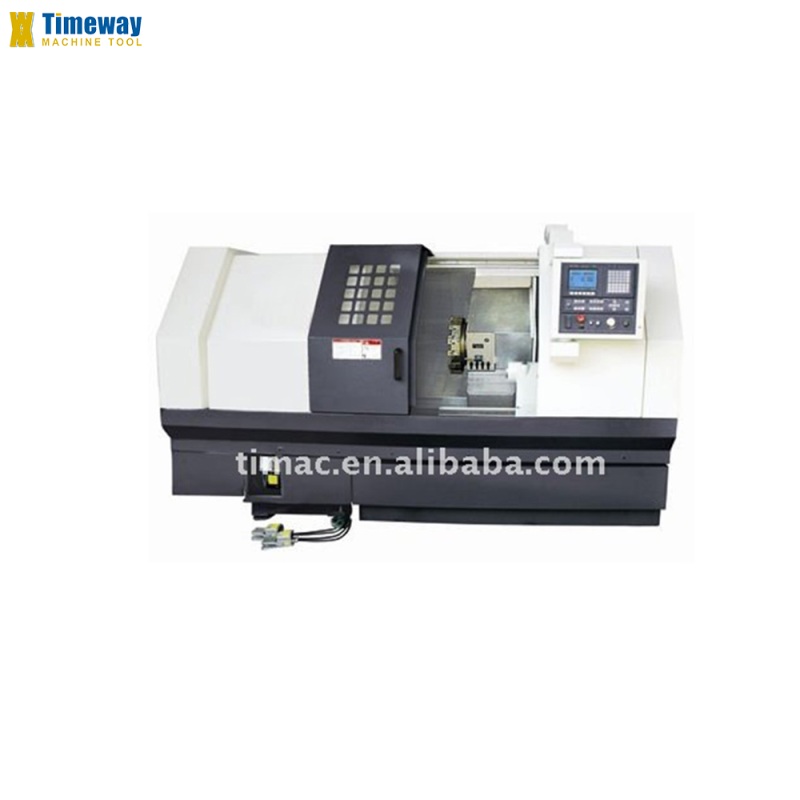

Full Function CNC Lathe with 8 Tool Post Stations and Advanced Features Slant Bed Type
Full Function CNC Lathe with 8 Tool Post Stations and Advanced Features Slant Bed Type
Full Function CNC Lathe with 8 Tool Post Stations and Advanced Features Slant Bed Type
Full Function CNC Lathe with 8 Tool Post Stations and Advanced Features Slant Bed Type
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
1000
Structure :
Slant Bed Lathe
Machining Capacity :
Medium Duty
Width of bed (mm) :
500 mm
Spindle Motor Power(kW) :
11
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
365 mm
Travel (Z Axis)(mm) :
1050 mm
Positioning Accuracy (mm) :
±0.001
Repeatability (X/Y/Z) (mm) :
±0.001
Place of Origin :
China
Dimension(L*W*H) :
4400x2050x2000
Brand Name :
TIMAC TIMEWAY
Model Number :
KD-40B
Voltage :
As request
CNC Control System :
FANUC
Tool Post Stations :
8
Weight (KG) :
5500
Warranty :
1 Year
Key Selling Points :
Automatic
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
CNC
Automatic Grade :
Automatic
Max. Swing Diameter :
700mm
Certification :
ISO, CE Standard
Power :
11kw
Max.swing over bed :
700mm
Max.turning length :
1000mm
Warranty period :
1 year
Machine Type :
Slant Bed Cnc Lathe Machine
Condition :
New
Spindle Bore(mm) :
105
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Showroom Location :
Peru, Russia, Thailand, Romania, South Africa, Australia
Marketing Type :
Ordinary Product
Core Components :
Bearing, Motor, Gear, Engine, Other, Gearbox
Max. Turned Length (mm) :
1000
Max. Spindle Speed (r.p.m) :
1300 r.p.m
Packaging Details :
In plywood cases.
Port :
China port.
Supply Ability :
300 Set/Sets per Month
Price :
$45,000.00/sets 1-2 sets
MOQ :
1 set
Description

Slant Bed Type CNC Lathe Full Function CNC Lathe

Full Function CNC Lathe with 8 Tool Post Stations and Advanced Features Slant Bed Type

Model Unit KD-40B
Max.swing over bed mm 700
Max.cutting dia.for disc parts mm 670
Max.cutting dia.for axle parts mm 440
Max.turning length mm 1000
Max.cross travel(X) mm 365
Max.Longitudinal travel(Z) mm 1050
Rapid feed for Axis X m/min 7
Rapid feed for Axis Z m/min 12
Max.speed of spindle r/min 20-150,150-433,433-1300r/min
Spindle bore mm 105
Hydraulic chuck 8″
Number of tools 8
Outside dia.of cutting tool shank mm 32×32
Internal dia.of cutting tool shank mm 32
Min.input mm 0.001
Repeatability(X/Z) mm 0.075/0.01
Bed structure 45°slant bed integrated with stand
Guide ways X&Z Square(Z),Dovetail(X)
Main motor power kw 11
Capacity for coolant L 120
Overall dimension(L×W×H) mm 4400×2050×2000
Net weight kg 5500

Standard:

FAUNC 0i mate TD controller; slant bed, hydraulic chuck, hydraulic tool turret, hydraulic tail-stock(if any), precision linear rolling guide ways, high speed spindle, auto. lubricating, auto. chip removal device is optional.

Why Choose Us
Why choose TIMEWAY MACHINE?

1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 70 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving.
Full Function CNC Lathe with 8 Tool Post Stations and Advanced Features Slant Bed Type

Company Introduction

Full Function CNC Lathe with 8 Tool Post Stations and Advanced Features Slant Bed TypeFull Function CNC Lathe with 8 Tool Post Stations and Advanced Features Slant Bed Type

Customer Visiting

Full Function CNC Lathe with 8 Tool Post Stations and Advanced Features Slant Bed Type

Exhibition&Training

Full Function CNC Lathe with 8 Tool Post Stations and Advanced Features Slant Bed Type

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
