30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
10000
Structure :
Flat Bed Lathe
Machining Capacity :
Heavy Duty
Max. Weight of Workpiece(kg) :
16000 or 20000
Width of bed (mm) :
1100 mm
Spindle Motor Power(kW) :
30
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
850 mm
Travel (Z Axis)(mm) :
10000 mm
Positioning Accuracy (mm) :
±0.025
Repeatability (X/Y/Z) (mm) :
±0.012
Place of Origin :
Henan, China
Dimension(L*W*H) :
13400x3200x2220mm
Brand Name :
Timeway
Model Number :
AK-1250x10M
Voltage :
220V/380V/400V/415V/440V
CNC Control System :
SIEMENS 828D
Tool Post Stations :
4
Weight (KG) :
30400
Warranty :
1 Year
Key Selling Points :
High-accuracy
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
2 years
Color :
Customized option
workpiece length :
10000mm
Machine Type :
Horizontal CNC Lathe
Max. swing over carriage :
900mm
4-jaw chuck size :
1250mm
Spindle speed :
3-320rpm (stepless)
Spindle taper :
140mm, 1:20
Turret size :
380x380mm
Tool section size :
50x50mm
Tailstock quill diameter :
260mm
Condition :
New
Spindle Bore(mm) :
100
Toolpost Brand :
Yantai Huanqiu
Applicable Industries :
Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Energy & Mining
Showroom Location :
Canada, United Kingdom, United States, Italy, France, Germany, Brazil, Mexico, Russia, Spain, Chile, Uzbekistan, Australia
Year :
latest day
Max. Spindle Speed (r.p.m) :
320 r.p.m
Max. Turned Length (mm) :
9800
Marketing Type :
Heavy duty equipment
Core Components :
SIEMENS CNC sysem
Packaging Details :
wooden case or plywood case
Port :
China Port
Supply Ability :
5 Set/Sets per Month
Price :
$300,000.00/sets >=1 sets
MOQ :
1 set
Description

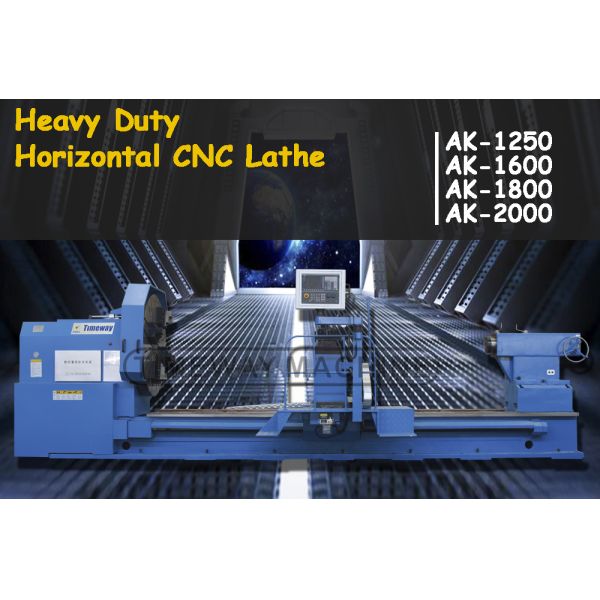

Heavy Duty Horizontal CNC Lathe
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
Products Description
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
√ FANUC/GSK/SIEMENS CNC system
√ 4-jaw chuck
√ 4-station electric tool-post
√ Work lamp
√ Cooling system
√ Manual pulse generator (MPG)
√ Dead centers
√ Oil gun
√ Pilot lamp
√ Automatic lubrication pump
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
_ Steady rest
_ Follow rest
_ Semi-closed guard
_ 6/8-station tool-post
_ Live centers
_ Air conditioner
_ Chip conveyor
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
Specification
Unit
AK-1250
AK-1600
Max. swing over bed
mm
1250
1600
Max.. swing over cross slide
mm
900
1250
Distance between centers
mm
3000/4000/5000/6000/8000/10000/12000/-
Max. turning length
mm
2800/3800/4800/5800/7800/9800/11800/-
Bed width
mm
1100
1100
Chuck size (4-jaw)
mm
1250
1400
Loading capacity
tons
16 (opt: 20)
16 (opt: 20)
Spindle bore
mm
100
100
Cross travel (X)
mm
850
850
Main motor power
kw
30
30
Machine weight
kg
15000/17200/19400/21560/26000/30400/34800/-
Machine length
mm
6400/7400/8400/9400/11400/13400/15400/-
Machine width
mm
3200
3200
Machine height
mm
2220
2750
Machine Details

Chuck：

- Standard 4-jaw independent chuck to clamping special-shape parts.

4-stations electric turret:

- Adopt famous brand electric turret, high positioning accuracy.

CNC system:

SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm

Electric moving tailstock:

Flexible and simple operation, to reduce labor intensity and increase operating pleasure.

CE-norm electric cabinet:

Clear and neat electric layout;
Adopt CE standard electric components.

Automatic lubrication pump:

Automatically and intermittently lubricate each guide rails to extend the service life of the machine.
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm

4-stations vertical turret:

Standard

6-stations vertical turret:

Optional

6-stations horizontal turret:

Optional
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm

Test - roundness & cylindricity:

Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm

Test - verticality:

Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm

Test - roughness:

Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm

Threads turning test:

Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm

Comprehensive testing parts:

All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
Positive Comments From Customers
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
Factory Display：
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
