Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
1800
Structure :
Flat Bed Lathe
Machining Capacity :
enquiry us
Width of bed (mm) :
0 mm
Spindle Motor Power(kW) :
30
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
700 mm
Travel (Z Axis)(mm) :
500 mm
Positioning Accuracy (mm) :
enquiry us
Repeatability (X/Y/Z) (mm) :
enquiry us
Place of Origin :
Henan, China
Dimension(L*W*H) :
15020*2665*2680
Brand Name :
Timac
Model Number :
AK-1800C
Voltage :
220V/380V,50HZ
CNC Control System :
Fanuc/Siemens/GSK
Tool Post Stations :
12
Weight (KG) :
20000
Warranty :
1 Year
Key Selling Points :
Long Service Life
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Swing over bed :
1800mm
Swing over carriage :
1440mm
Max. length of workpiece :
2000/3000/4000/5000/6000/8000/10000/12000/14000/16000/18000mm
Max. turning length :
1730/2730/3730/4730/5730/7730/9730/11730/13730/15730/17730mm
Width of bed :
970mm
Loading capacity :
10000kg
Spindle nose :
A2-15
Chuck(manual) :
4-jaw chuck
Spindle bore :
130mm
Taper hole of spindle :
Metric 140
Condition :
New
Spindle Bore(mm) :
130
Toolpost Brand :
enquiry us
Applicable Industries :
Hotels, Food & Beverage Factory, Farms, Home Use, Retail, Construction works
Showroom Location :
Egypt, Viet Nam, Russia
Marketing Type :
Hot Product 2019
Year :
least date
Max. Spindle Speed (r.p.m) :
320 r.p.m
Core Components :
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, enquiry us
Price :
$110,000.00/acres >=1 acres
MOQ :
1 set
Description
Product Description

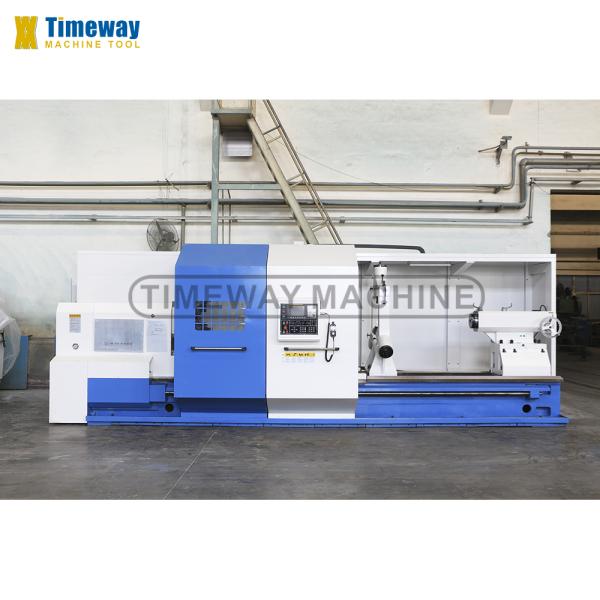

CNC Heavy Duty Horizontal Lathe AK-1800C
Sell Big Swing Horizontal Flat Bed CNC Turning Lathe Machine with Metric 140 Taper Hole
Specification
Specifications
Units
AK-1600C
AK-1800C
Swing over bed
mm
1600
1800
Swing over carriage
mm
1210
1440
Max. length of workpiece
mm
2000/3000/4000/5000/6000/8000/10000/12000/14000/16000/18000
Max. turning length
mm
1730/2730/3730/4730/5730/7730/9730/11730/13730/15730/17730
Width of bed
mm
970
970
Loading capacity
kg
10000
10000
Spindle nose
-
A2-15
A2-15
Chuck(manual)
-
4-jaw chuck
4-jaw chuck
Spindle bore
mm
130
130
Taper hole of spindle
-
Metric 140
Metric 140
Spindle speed range/steps
rpm
3.15-315 (manual 21steps, CCW); 3.5-291 (manual 12steps, CW); 3-320 (manual 4steps, stepless each steps); 3-320 (Automatic 4steps,
stepless each steps)
Center height
mm
820
900
Min.feed unit of X/Z-axis
mm
0.001/0.001
0.001/0.001
Rapid speeds of X/Z-axis
mm/min
3000/6000
3000/6000
Max.travel of X-axis
mm
630
720
Tool-post working position
-
V4
V4
Indexing time
s
2.6
2.6
Indexing repeatility
mm
0.01
0.01
Section of tool shank
mm
40x40
40x40
Diameter of tailstock quill
mm
220
220
Travel of tailstock quill
mm
300
300
Taper hole of tailstock quill
-
MT6
MT6
Working accuracy
-
IT6-IT7
IT6-IT7
Surface roughness
um
Ra1.6
Ra1.6
Main motor power
kw
22
22
Accessories

Standard accessories：

FANUC/GSK/SIEMENS CNC system,
4-jaw chuck,
4-station electric tool-post,
Work lamp,
Cooling system,
Manual pulse (MPG),
Dead centers,
Oil gun,
Pilot lamp,
Automatic lubrication pump,
Electric moving tailstock,
Tools & tool-box,
Leveling wedge& bolts,
Operation manual (English).

Optional accessories：

6/8-station tool-post,
Steady rest,
Follow rest,
Semi-closed guard,
Live centers,
air conditioner,
Chip conveyor
Details of Accessories:
Sell Big Swing Horizontal Flat Bed CNC Turning Lathe Machine with Metric 140 Taper Hole
Sell Big Swing Horizontal Flat Bed CNC Turning Lathe Machine with Metric 140 Taper Hole
Sell Big Swing Horizontal Flat Bed CNC Turning Lathe Machine with Metric 140 Taper Hole
Sell Big Swing Horizontal Flat Bed CNC Turning Lathe Machine with Metric 140 Taper Hole
Sell Big Swing Horizontal Flat Bed CNC Turning Lathe Machine with Metric 140 Taper Hole
Sell Big Swing Horizontal Flat Bed CNC Turning Lathe Machine with Metric 140 Taper Hole
Sell Big Swing Horizontal Flat Bed CNC Turning Lathe Machine with Metric 140 Taper Hole
Sell Big Swing Horizontal Flat Bed CNC Turning Lathe Machine with Metric 140 Taper Hole

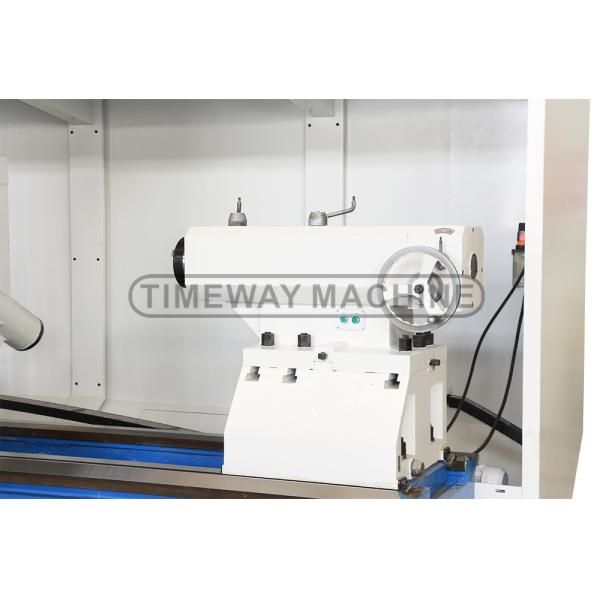

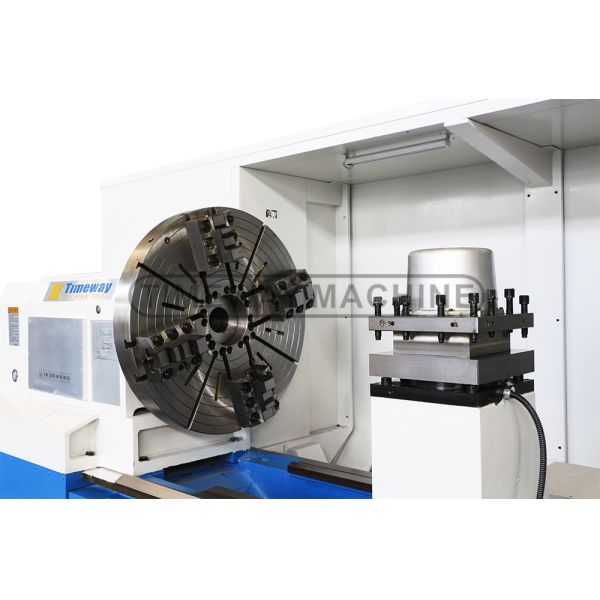

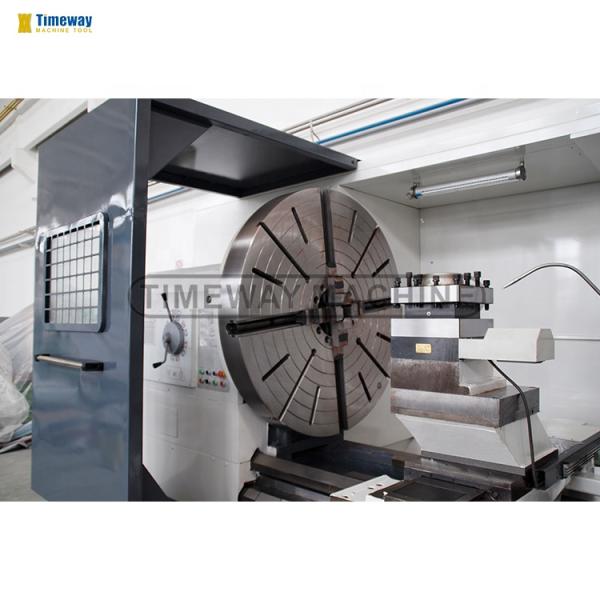

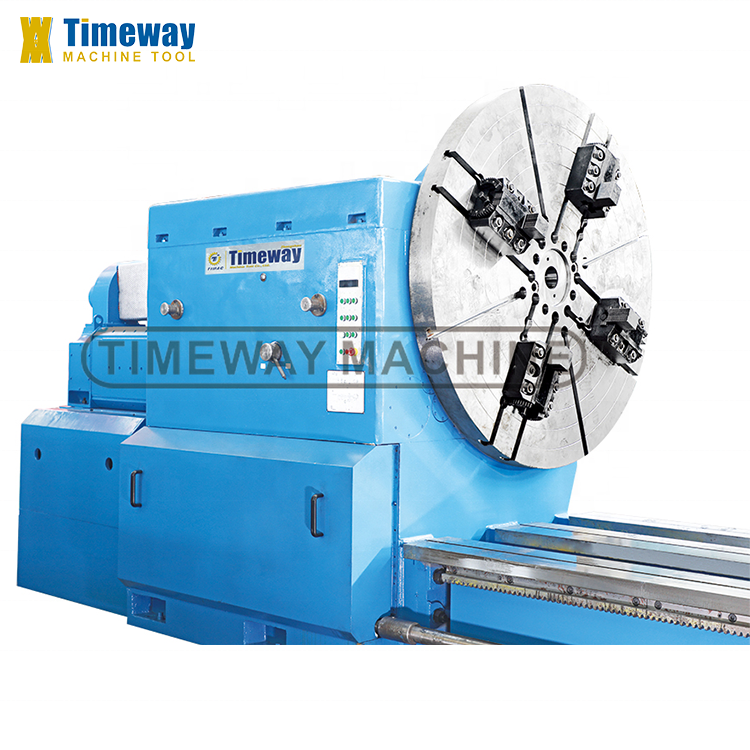

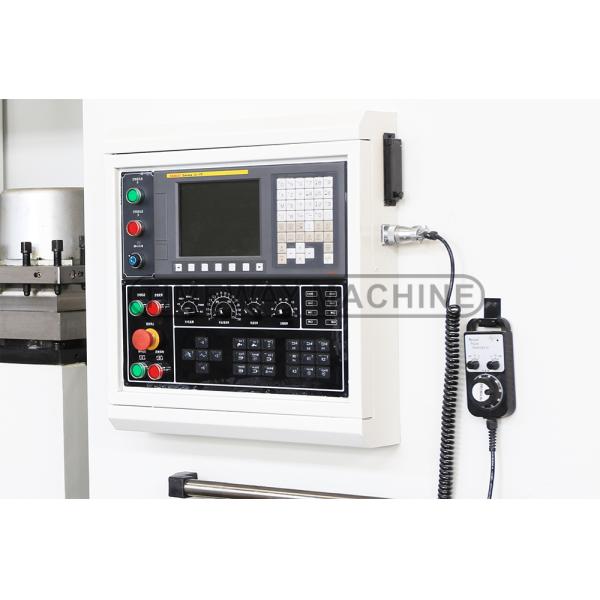

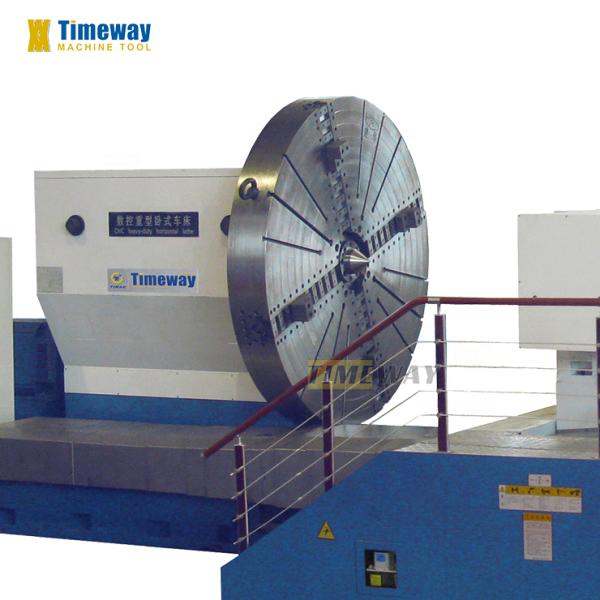

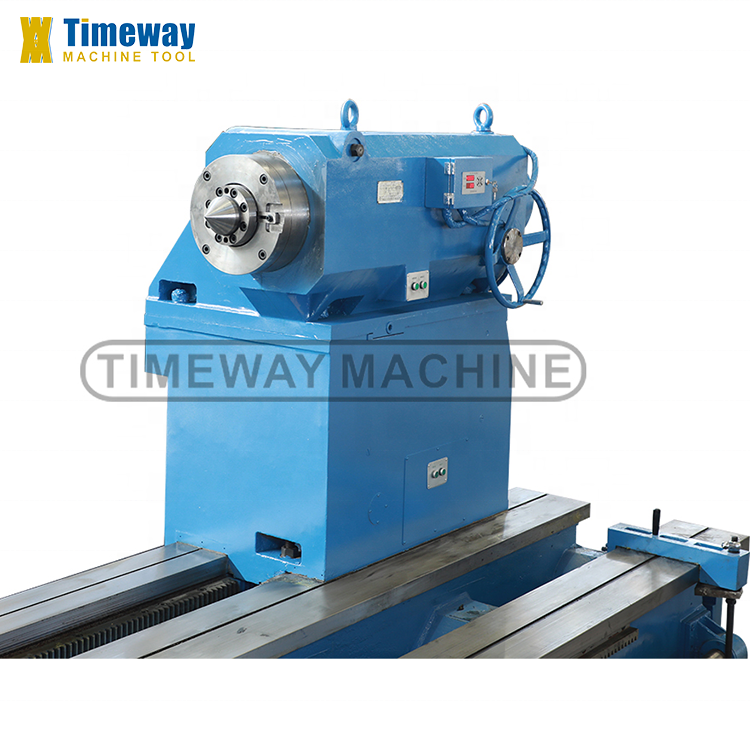

The above is a detailed picture of the machine, you can understand this machine more intuitively.
Packing & Delivery
Sell Big Swing Horizontal Flat Bed CNC Turning Lathe Machine with Metric 140 Taper Hole
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Company Profile
Sell Big Swing Horizontal Flat Bed CNC Turning Lathe Machine with Metric 140 Taper Hole
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Certifications
Sell Big Swing Horizontal Flat Bed CNC Turning Lathe Machine with Metric 140 Taper Hole
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
