Type Flat Bed CNC Lathe tornos para metal cnc with 1000/1600mm Swing Over Bed in 2023
Type Flat Bed CNC Lathe tornos para metal cnc with 1000/1600mm Swing Over Bed in 2023
Type Flat Bed CNC Lathe tornos para metal cnc with 1000/1600mm Swing Over Bed in 2023
Type Flat Bed CNC Lathe tornos para metal cnc with 1000/1600mm Swing Over Bed in 2023
Type Flat Bed CNC Lathe tornos para metal cnc with 1000/1600mm Swing Over Bed in 2023
Type Flat Bed CNC Lathe tornos para metal cnc with 1000/1600mm Swing Over Bed in 2023
Type Flat Bed CNC Lathe tornos para metal cnc with 1000/1600mm Swing Over Bed in 2023
Type Flat Bed CNC Lathe tornos para metal cnc with 1000/1600mm Swing Over Bed in 2023
Type Flat Bed CNC Lathe tornos para metal cnc with 1000/1600mm Swing Over Bed in 2023
Type Flat Bed CNC Lathe tornos para metal cnc with 1000/1600mm Swing Over Bed in 2023
Type Flat Bed CNC Lathe tornos para metal cnc with 1000/1600mm Swing Over Bed in 2023
Type Flat Bed CNC Lathe tornos para metal cnc with 1000/1600mm Swing Over Bed in 2023
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
1000
Structure :
Flat Bed Lathe
Machining Capacity :
Heavy Duty
Max. Weight of Workpiece(kg) :
6000
Width of bed (mm) :
400 mm
Spindle Motor Power(kW) :
30
No. of Spindles :
Single
Number of Axes :
3
Travel (X Axis)(mm) :
630 mm
Travel (Z Axis)(mm) :
450 mm
Positioning Accuracy (mm) :
±0.001
Repeatability (X/Y/Z) (mm) :
±0.001
Place of Origin :
Henan, China
Dimension(L*W*H) :
4800*2750*2630
Brand Name :
Timeway
Model Number :
AK-1600B
Voltage :
Optional
CNC Control System :
GSK
Tool Post Stations :
8, 10, 6, 4
Weight (KG) :
9600
Warranty :
1 Year
Key Selling Points :
Multifunctional
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
CNC
Machine Type :
Flat Bed CNC Lathe
Keyword :
Cnc Metal Lathe Machine
Product type :
Cnc Horizontal Turning Lathe Machine
Precision :
High Precision Machine
Control system :
SIEMENS GSK FANUC (optional)
Model :
AK-1600B
Color :
Customer Optional
Processing type :
Flat Lathe
Function :
Machining Metal
Condition :
New
Spindle Bore(mm) :
130
Toolpost Brand :
Hongda
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining
Showroom Location :
Egypt, Turkey, Morocco
Marketing Type :
Hot Product 2019
Core Components :
PLC, Gearbox, Motor
Max. Turned Length (mm) :
1000
Year :
2023
Max. Spindle Speed (r.p.m) :
320 r.p.m
Price :
$32,450.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

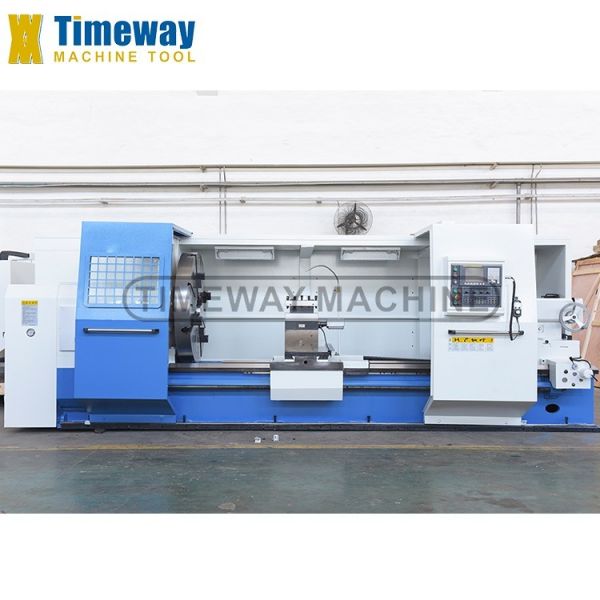

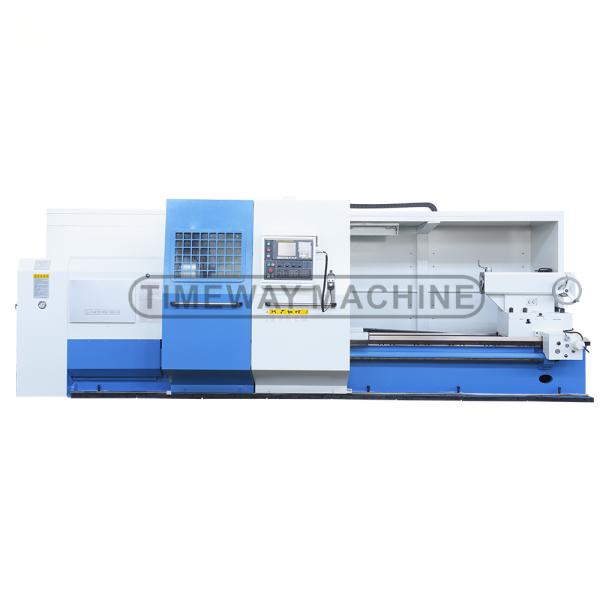

Heavy Duty CNC Horizontal Lathe
Type Flat Bed CNC Lathe tornos para metal cnc with 1000/1600mm Swing Over Bed in 2023
This series lathe bed is the one-piece type box-shaped structure, adopts high standard cast iron (HT300) one molding casting, after thesecond aging treatment, it has the feature of stable performance; guide way width (755mm), good rigidity, anti-vibration ability; spindle bore is 130mm, strong rigidity of headstock, adapting to heavy cutting.

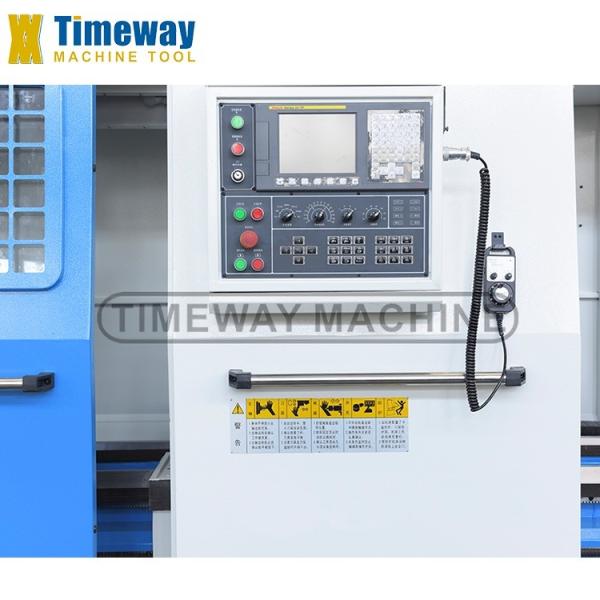

CNC system uses the most well-known international FANUC or SIEMENS control system (also available matching other systems according to users' requirements). Programs and parameters can be transferred through USB interface. X-axis and Z-axis can realize linkage, so it has straight line, arc and thread interpolation and a variety of other fixed cycle and other functions, the minimum resolution is 0.001mm.
Specification
Specification
Unit
AK-1000B
AK-1250B
AK-1400B
AK-1600B
Max. swing over bed
mm
1000
1250
1400
1640
Max.. swing over cross slide
mm
630
880
1030
1250
Distance between centers
mm
1000/1500/2000/3000/4000/5000/6000/8000/10000/12000/-
Max. turning length
mm
730/1300/1800/2800/3800/4800/5800/7800/9800/11800/-
Bed width
mm
755
755
755
755
Loading capacity
kg
6000 (opt: 8000)
6000 (opt: 8000)
6000 (opt: 8000)
6000 (opt: 8000)
Spindle nose
mm
A2-15
A2-15
A2-15
A2-15
Spindle bore
mm
130
130
130
130
Spindle taper
-
Metric 140
Metric 140
Metric 140
Metric 140
Spindle speed (Hydraulic 4steps, stepless)
rpm
5-320
5-320
5-320
5-320
Center height
mm
500
625
700
820

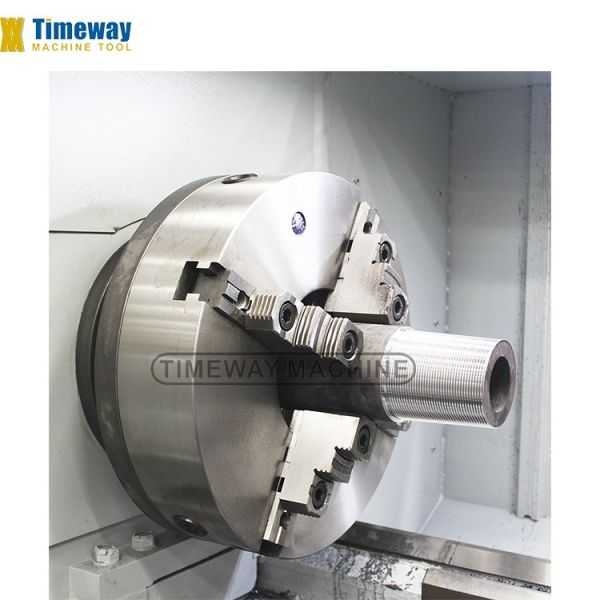

Chuck size (4-jaw)
mm
1000
1000
1000
1000
X/Z-axis min. feed unit
mm
0.001/0.001
0.001/0.001
0.001/0.001
0.001/0.001
X/Z-axis rapid feed speed
mm/min
3000/5000
3000/5000
3000/5000
3000/5000
Cross travel (X)
mm
570
570
690
630
Tool post type
-
V4/V6/V8
V4/V6/V8
V4/V6/V8
V4/V6/V8
Tool change time
s
2.6
2.6
2.6
2.6
Turret repeat positioning accuracy
mm
0.01
0.01
0.01
0.01
Tool section size
mm
40x40
40x40
40x40
40x40

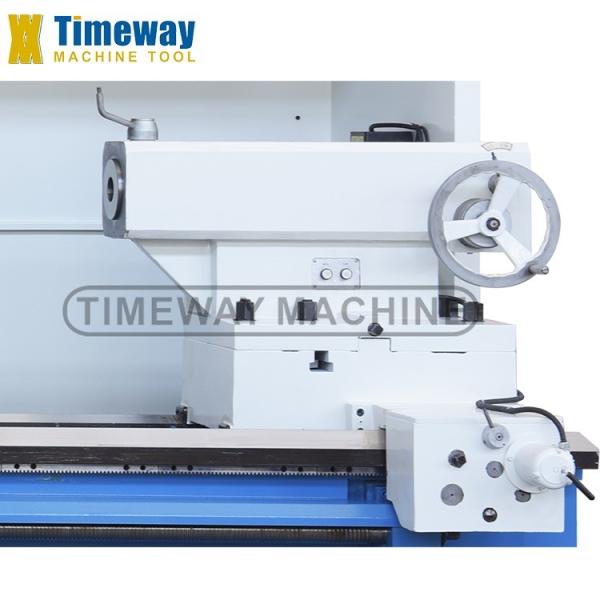

Tailstock quill diameter
mm
160
160
160
160
Tailstock quill travel
mm
300
300
300
300
Tailstock quill taper
-
MT6
MT6
MT6
MT6
CNC system
-
FANUC/GSK/SIEMENS
FANUC/GSK/SIEMENS
FANUC/GSK/SIEMENS
FANUC/GSK/SIEMENS
Working accuracy
-
IT6-IT7
IT6-IT7
IT6-IT7
IT6-IT7
Surface roughness
µm
Ra1.6
Ra1.6
Ra1.6
Ra1.6
Main motor power
kw
30
30
30
30
Machine weight
kg
9800/10200/10600/11800/13000/14800/16600/20600/24600/28600/-
Machine length
mm
4300/4800/5300/6300/7300/8300/9300/11300/13300/15300/-
Machine width
mm
2530
2530
2780
2780
Machine height
mm
2150
2150
2600
2600
