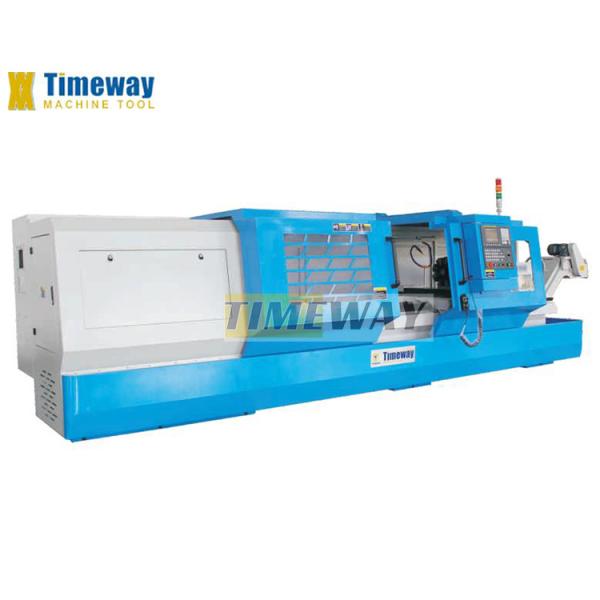

High Precision Flat Bed CNC Lathe with GSK CNC Control System and 11kW Spindle Motor Power
High Precision Flat Bed CNC Lathe with GSK CNC Control System and 11kW Spindle Motor Power
High Precision Flat Bed CNC Lathe with GSK CNC Control System and 11kW Spindle Motor Power
High Precision Flat Bed CNC Lathe with GSK CNC Control System and 11kW Spindle Motor Power
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
630 mm
Structure :
Flat Bed Lathe
Machining Capacity :
Medium Duty
Width of bed (mm) :
50 mm
Spindle Motor Power(kW) :
11 kw
No. of Spindles :
Single
Number of Axes :
3
Travel (X Axis)(mm) :
420 mm
Travel (Z Axis)(mm) :
1500 mm
Place of Origin :
China
Dimension(L*W*H) :
4307x2040x1855 mm
Brand Name :
TIMAC
Model Number :
CK-630U
Voltage :
220/380V
CNC Control System :
GSK
Tool Post Stations :
4
Weight (KG) :
5800
Warranty :
1 Year
Key Selling Points :
High-accuracy
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Machine Type :
Flat Bed CNC Lathe
Keyword :
CNC Lathe
CNC or Not :
CNC
Max. swing over bed :
630 mm
Distance between centers :
1500 mm
Spindle bore :
104 mm
Cross travel (X) :
420 mm
Longitudinal travel (Z) :
1500 mm
Machine dimensions (L*W*H) :
4307*2040*1855 mm
Machine weight :
5800 kg
Condition :
New
Showroom Location :
Egypt, Canada, Turkey, Saudi Arabia, Indonesia, Russia, Colombia, Romania, Bangladesh, South Africa, Uzbekistan
Marketing Type :
New Product 2020
Max. Spindle Speed (r.p.m) :
1250 r.p.m
Spindle Bore(mm) :
104 mm
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Other
Core Components :
Bearing, Other
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$68,000.00/sets 1-1 sets
MOQ :
1 set
Description
Products Description
High Precision Flat Bed CNC Lathe with GSK CNC Control System and 11kW Spindle Motor Power
High Precision Flat Bed CNC Lathe with GSK CNC Control System and 11kW Spindle Motor Power
High Precision Flat Bed CNC Lathe with GSK CNC Control System and 11kW Spindle Motor Power
Specification
Unit
CK-630U
CK-800U
Max. swing over bed
mm
630
800
Max.. swing over cross slide
mm
350
520
Distance between centers
mm
1500/3000
1500/3000
Max. turning length
mm
1500/3000
1500/3000
Bed width
mm
600
600
Spindle nose
mm
A2-11
A2-11
Spindle bore
mm
104
104
Spindle taper
-
Metric
Metric
Spindle speed (steps)
rpm
11-1250 (3), automtatic
11-1250 (3), automtatic
Center height
mm
315
400
Chuck size
mm
325
325
Cross travel (X)
mm
420
420
Longitudinal travel (Z)
mm
1500/3000
1500/3000
X/Z-axis rapid feed speed
m/min
4/8
4/8
X/Z-axis min. feed unit
mm
0.001
0.001
X-axis feed motor torque
NM
10
10
Z-axis feed motor torque
NM
15/30
15/30
Tool post type
-
V4/H6
V4/H6
Tool section size
mm
32x32
32x32
Tailstock quill diameter
mm
100
100
Tailstock quill travel
mm
250
250
Tailstock quill taper
-
MT5
MT5
Main motor power
kw
11
15
Coolant pump power
kw
0.12
0.12
Working accuracy
mm
IT6
IT6
X/Z-axis positioning accuracy
mm
0.03/0.04
0.03/0.04
X/Z-axis repositioning accuracy
mm
0.012/0.016
0.012/0.016
Roughness
um
Ra1.6
Ra1.6
Machine dimensions (LxWxH)
mm
4307/5785×2040×1855
4307/5785×2040×1855
Machine weight
kg
5800/7200
5800/7200
High Precision Flat Bed CNC Lathe with GSK CNC Control System and 11kW Spindle Motor Power
· FANUC CNC system,
· Manual 3-jaw chuck,
· 4-station electronic tool post,
· Electronic handwheel (MPG),
· Lubrication system,
· Cooling system,
· Work lamp,
· Pilot lamp,
· Protection guard,
· Heat exchanger,
· Leveling blocks & bolts,
· Tools & tool-box,
· Operation manuals.
· GSK, SIEMENS CNC system,
· Hydraulic chuck,
· 6-station tool post,
· Air conditioner,
· Tool setter,
· Chain type chip conveyor
High Precision Flat Bed CNC Lathe with GSK CNC Control System and 11kW Spindle Motor Power
High Precision Flat Bed CNC Lathe with GSK CNC Control System and 11kW Spindle Motor Power
Why Choose Us
High Precision Flat Bed CNC Lathe with GSK CNC Control System and 11kW Spindle Motor Power
High Precision Flat Bed CNC Lathe with GSK CNC Control System and 11kW Spindle Motor Power
High Precision Flat Bed CNC Lathe with GSK CNC Control System and 11kW Spindle Motor Power
High Precision Flat Bed CNC Lathe with GSK CNC Control System and 11kW Spindle Motor Power
High Precision Flat Bed CNC Lathe with GSK CNC Control System and 11kW Spindle Motor Power
High Precision Flat Bed CNC Lathe with GSK CNC Control System and 11kW Spindle Motor Power
High Precision Flat Bed CNC Lathe with GSK CNC Control System and 11kW Spindle Motor Power
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
