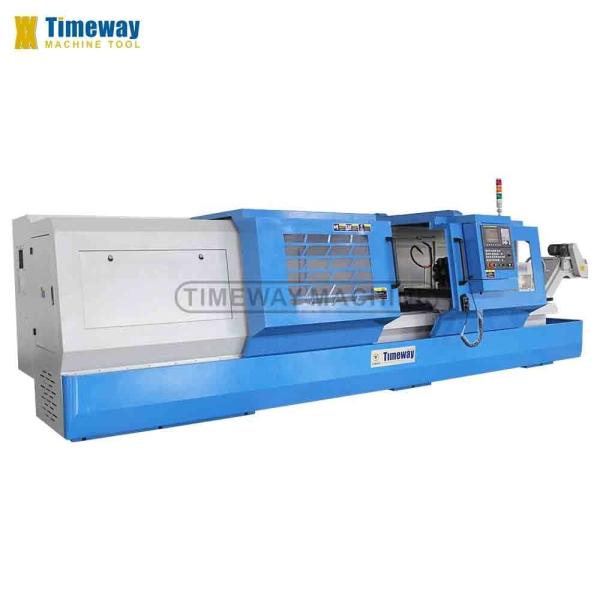

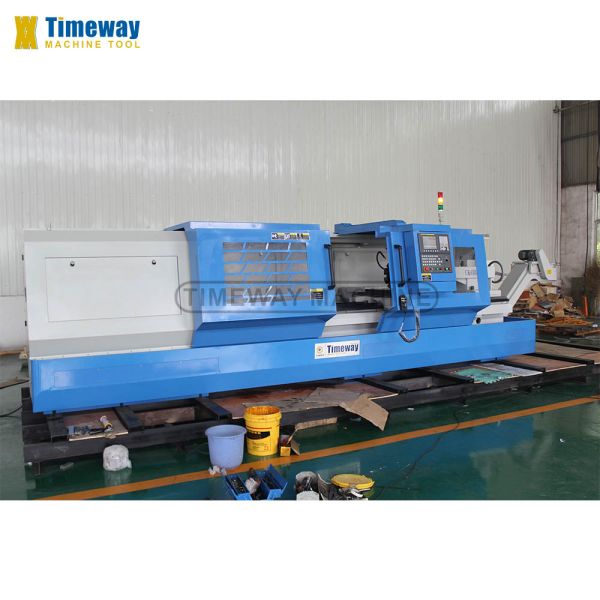

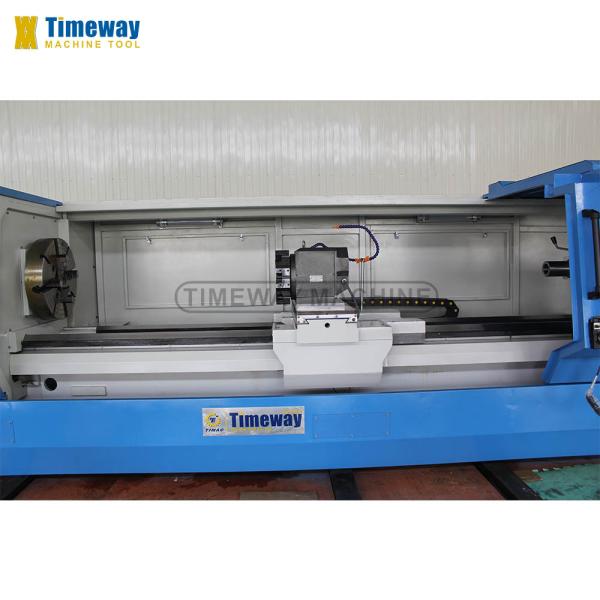

800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
3000
Structure :
Flat Bed Lathe
Machining Capacity :
Medium Duty
Width of bed (mm) :
800 mm
Spindle Motor Power(kW) :
15
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
470 mm
Travel (Z Axis)(mm) :
1620 mm
Positioning Accuracy (mm) :
±0.03
Repeatability (X/Y/Z) (mm) :
±0.012
Place of Origin :
Henan, China
Dimension(L*W*H) :
4500/5100/6200x2040x1855mm
Brand Name :
TIMAC
Model Number :
CK-800U
Voltage :
As Customers, Request
Tool Post Stations :
4
Weight (KG) :
5800
Warranty :
1 Year
Key Selling Points :
Automatic
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas
Automatic Grade :
Automatic
CNC or Not :
CNC
High Precision CNC Lathe :
Flat Bed Type CNC Lathe
Tailstock quill travel :
250mm
X/Z-axis positioning accuracy :
0.03/0.04mm
X/Z-axis repositioning accuracy :
0.012/0.016mm
Roughness :
Ra1.6um
Max. swing over bed :
800mm
machine weight :
5800kg
Condition :
New
Applicable Industries :
Garment Shops, Farms, Retail, Energy & Mining
Showroom Location :
Canada, United States, Italy, Germany, South Africa
Marketing Type :
Ordinary Product
Core Components :
Bearing, Motor, Gear, PLC, Pressure vessel, Engine
Max. Spindle Speed (r.p.m) :
1250 r.p.m
Spindle Bore(mm) :
104
Max. Turned Length (mm) :
3000
Packaging Details :
wooden case or plywood case
Port :
China Port
Supply Ability :
300 Set/Sets per Year
Price :
$38,000.00/sets 1-1 sets
MOQ :
1 set
Description
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
High Precision CNC Lather for Sale / CNC Flat Bed Machine Tool with 800mm Swing

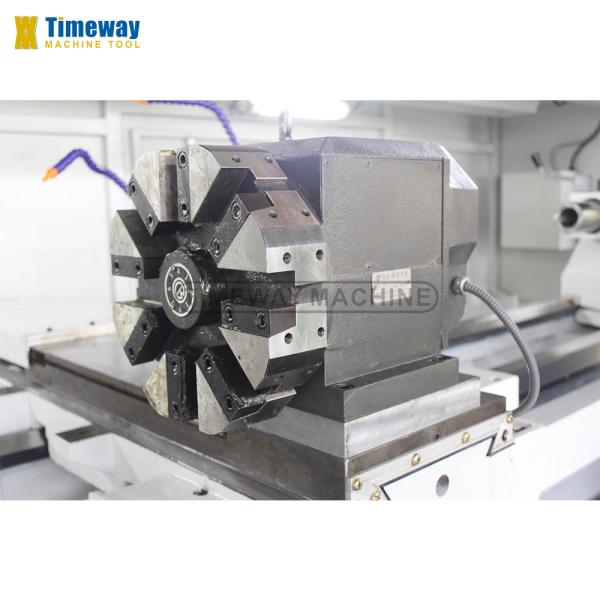

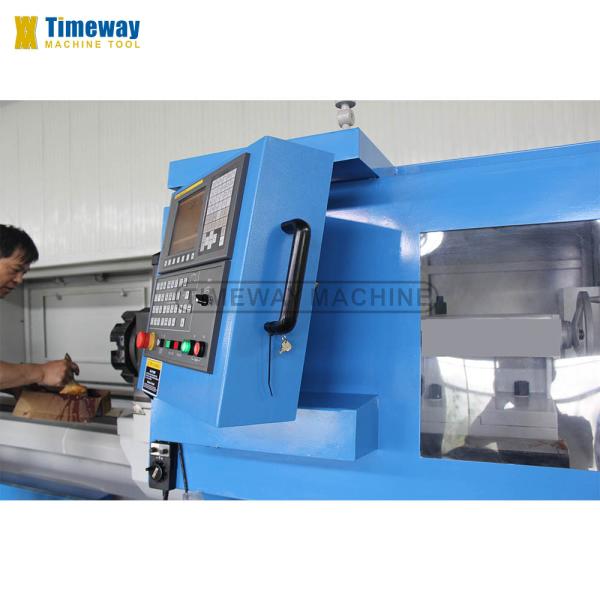

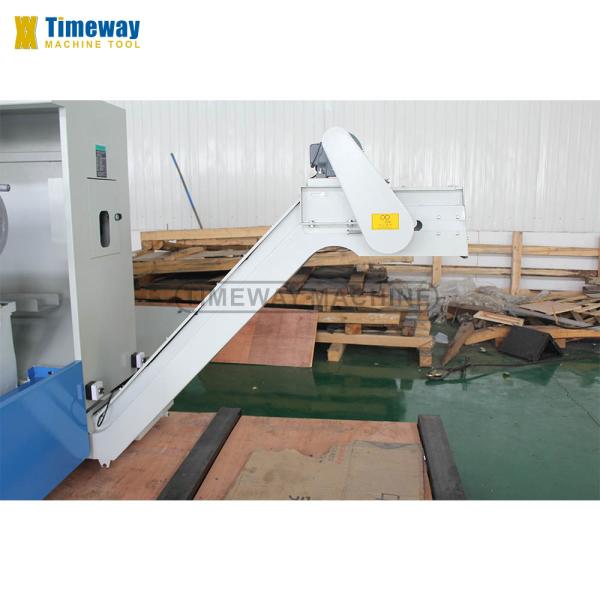

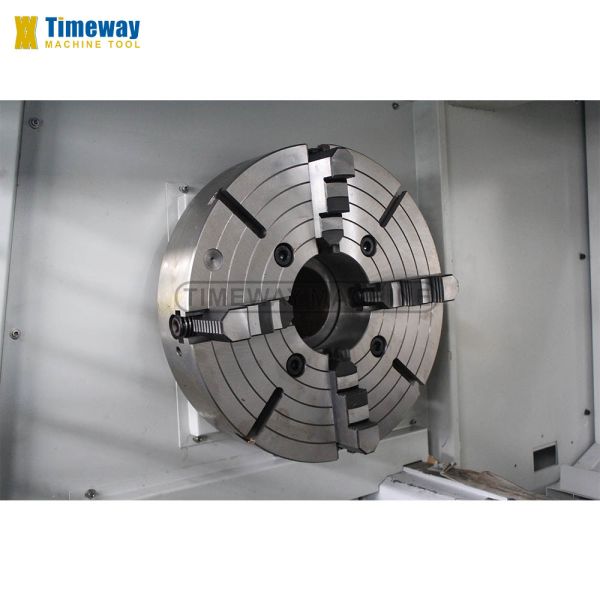

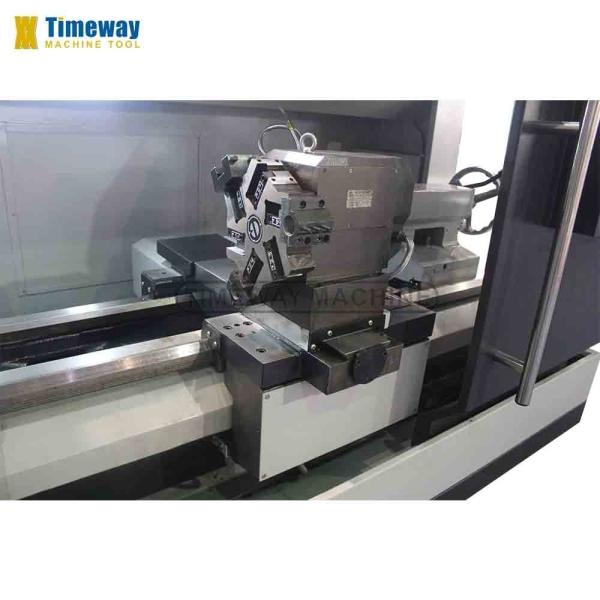

Standard accessories: GSK 980TDI, 3-jaw chuck, 4-station electronic tool post, Electronic handwheel, Lubrication system, Cooling system, Work lamp, Protection guard, Axial fan, Leveling blocks & bolts, Tools & tool-box, Operation manuals. Optional accessories: FANUC CNC system, SIEMENS CNC system, 4-jaw chuck, Horizontal 6-station tool post, Horizontal 8-station tool post, Pilot lamp, Air conditioner, Heat exchanger, Hydraulic chuck, Special fixture, Tool setter, Chain type chip conveyor.
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
PRODUCT SPECIFICATIONS
Specification
Unit
CK-600U
CK-800U
CK6180E
Max. swing over bed
mm
630
800
800
Max.. swing over cross slide
mm
350
520
480
Distance between centers
mm
1500/3000
1500/3000
1620/2210/3120
Max. turning length
mm
1500/3000
1500/3000
1620/2210/3120
Bed width
mm
600
600
600
Spindle nose
mm
A2-11
A2-11
C11
Spindle bore
mm
104
104
105
Spindle taper
-
Metric
Metric
Metric
Spindle speed (steps)
rpm
11-1250 (3), automatic
11-1250 (3), automatic
45-950 (3), Manual
Center height
mm
315
400
400
Chuck size
mm
325
325
325
Cross travel (X)
mm
420
420
470
Longitudinal travel (Z)
mm
1500/3000
1500/3000
1620/2210/3120
X/Z-axis rapid feed speed
mm/min
4/8
4/8
6/8
X/Z-axis min. feed unit
mm
0.001
0.001
0.001
X-axis feed motor torque
NM
10
10
15
Z-axis feed motor torque
NM
15/30
15/30
18/23/30
Tool post type
-
V4/H6
V4/H6
V4
Tool section size
mm
32x32
32x32
32x32
Tailstock quill diameter
mm
100
100
100

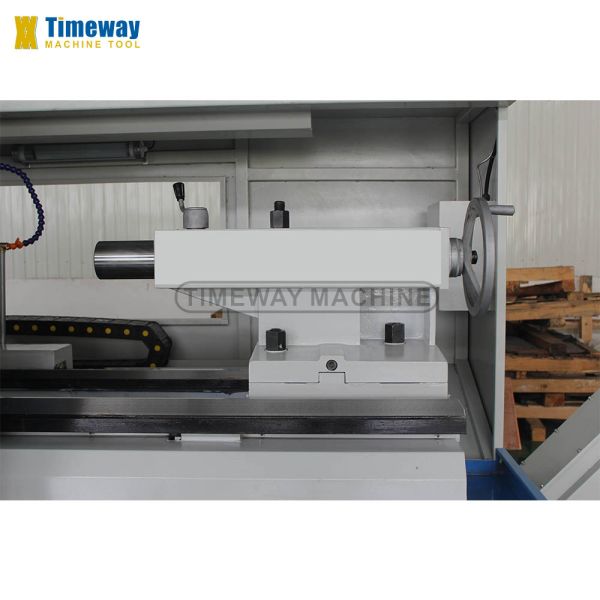

Tailstock quill travel
mm
250
250
250
Tailstock quill taper
-
MT5
MT5
MT5
Main motor power
kw
11
15
11
Coolant pump power
kw
0.12
0.12
0.12
Working accuracy
mm
IT6
IT6
IT6
X/Z-axis positioning accuracy
mm
0.03/0.04
0.03/0.04
0.03/0.04
X/Z-axis repositioning accuracy
mm
0.012/0.016
0.012/0.016
0.012/0.016
Roughness
um
Ra1.6
Ra1.6
Ra1.6
Machine dimensions (LxWxH)
mm
4307/5785ⅹ2040ⅹ1855
4307/5785ⅹ2040ⅹ1855
4500/5100/6200ⅹ2040ⅹ1855
Machine weight
kg
5800/7200
5800/7200
5400/5750/7080
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
Company Introduction
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
Package & Transportation
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
Exhibition & Training
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
Customers Visited
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
Why Choose Us
Why choose TIMEWAY MACHINE?
1 . High quality with competitive price;
2 . Professional R&D team and 25 years exportexperience;
3 . Exported more than 70 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
FAQ


Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; 2) Irrevocable LC at sight; 3) Western Union, MoneyGram, etc.

Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
