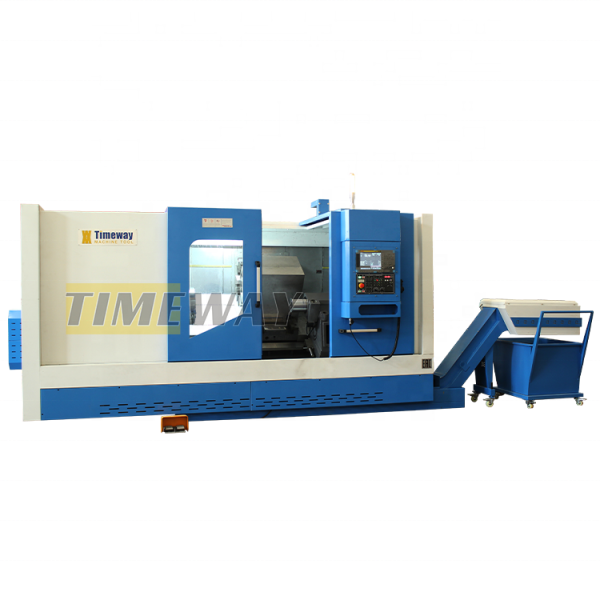

CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
750
Structure :
Slant Bed Lathe
Machining Capacity :
Medium Duty
Width of bed (mm) :
350 mm
Spindle Motor Power(kW) :
22
No. of Spindles :
Twin
Number of Axes :
2
Travel (X Axis)(mm) :
400 mm
Travel (Z Axis)(mm) :
860 mm
Repeatability (X/Y/Z) (mm) :
±0.008
Place of Origin :
China
Dimension(L*W*H) :
3800*2200*2200
Brand Name :
Timeway
Model Number :
CK-80
Voltage :
220v/380v
CNC Control System :
FANUC
Tool Post Stations :
12, 8, 10, 6, 4
Weight (KG) :
5800
Warranty :
1 Year
Key Selling Points :
Automatic
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Max. swing over bed :
800
Max. swing over cross slide :
640
standerd turning diameter :
460
Spindle speed :
1500
Spindle nose :
A2-11
Spindle bore :
112
cross travel (X) :
400
Longitudinal travel(Z) :
860
Machine Type :
Flat Bed CNC Lathe
Max. turning length :
750
Condition :
New
Toolpost Brand :
Hongda
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Restaurant
Showroom Location :
United States, Italy, Viet Nam, Brazil, India
Marketing Type :
New Product 2020
Core Components :
Motor
Year :
2023
Max. Spindle Speed (r.p.m) :
1500 r.p.m
Spindle Bore(mm) :
112
Max. Turned Length (mm) :
750
Price :
$60,000.00/sets 1-2 sets
MOQ :
1 set
Description
Summary
This type slant bed CNC lathe is semi-closed loop CNC machine ,whicn is suitable to turn various complicated shaft,sleeve and disk-like workpieces.
Product Description
slant bed CNC lathe
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
Specification
SPECIFICATION
UNIT
CK-80
Max. swing over bed:
Max. swing over cross slide:
Standard turning diameter:
Max. turning diameter:
Max. turning length:
Max. diameter of bar:
Spindle speed:
Spindle nose:
Spindle bore:
Chuck size:
Cross travel (X):
Longitudinal travel (Z):
X/Z-axis rapid feed speed:
Hydraulic tool post type:
Tool section size:
Tailstock quill diameter:
Tailstock quill travel:
Tailstock quill taper:
Bed structure:
Guideway type:
Working accuracy:
X-axis repositioning accuracy:
Z-axis repositioning accuracy:
Roughness:
Main motor power:
Power supply:
Machine dimensions (L×W×H):
Machine weight:
mm
mm
mm
mm
mm
mm
rpm
-
mm
mm
mm
mm
m/min
-
mm
mm
mm
-
-
-
mm
mm
mm
-
kw
kva
mm
kg
800
640
460
660
2500
90
1500
A2-11
112
380
400
2640
12/16
125-12T
25×25/Φ40
150
150
MT5, rotary
30° Integral bed
Linear
IT6
0.008
0.01/0.013
Ra1.6um
22
50
5100×2200×2200
7000

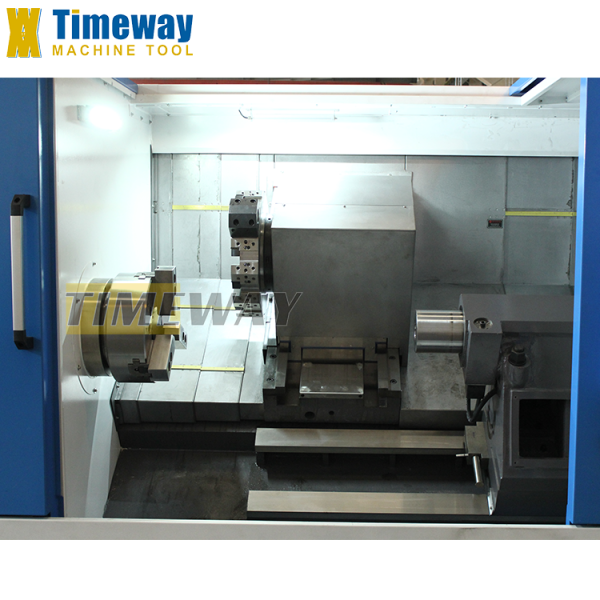

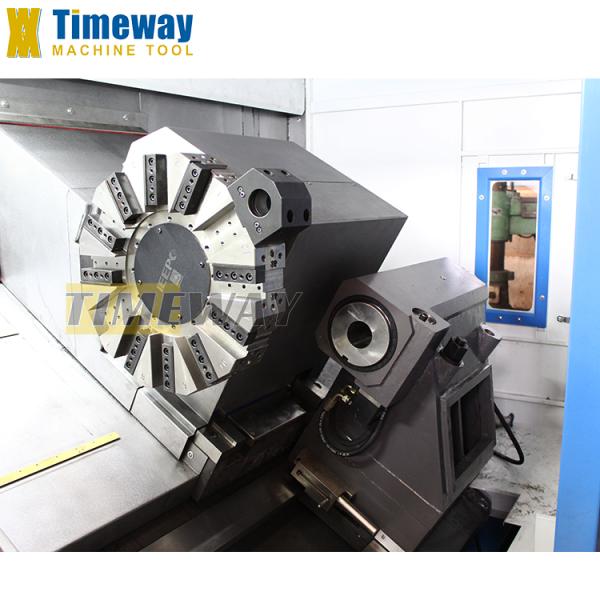

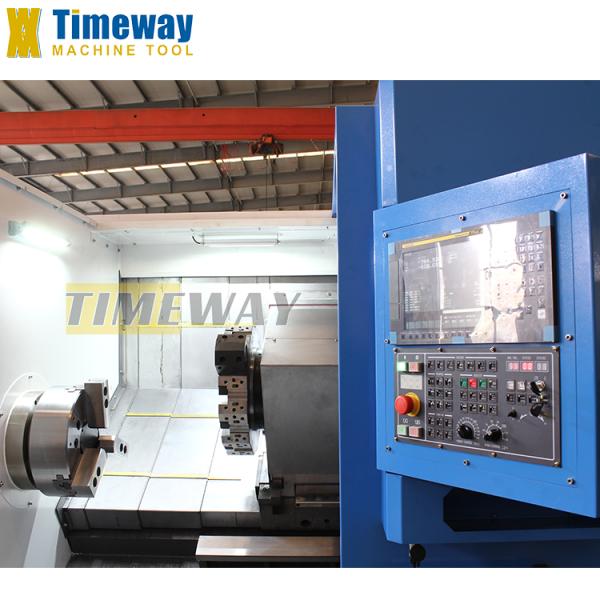

Detailed Images
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
Accessories

STANDARD ACCESSORIES:

* FANUC 0i-TF CNC system
* Hydraulic chuck
* 8/12-station tool turret
* Hydraulic tool post
* Electronic handwheel
* Lubrication system
* Cooling system
* Work lamp
* Pilot lamp
* Protection guard
* Heat exchanger
* Leveling blocks & bolts
* Tool & tool-box
* Operation manuals

OPTIONAL ACCESSORIES:

* GSK,SIEMENS CNC system
* Air conditioner
* Tool setter
* Chain type chip conveyor
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
Factory Display：
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
