Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
2000
Structure :
Flat Bed Lathe
Machining Capacity :
Medium Duty
Max. Weight of Workpiece(kg) :
enquiry us
Width of bed (mm) :
390 mm
Spindle Motor Power(kW) :
15
No. of Spindles :
Single
Number of Axes :
2
Travel (X Axis)(mm) :
470 mm
Travel (Z Axis)(mm) :
1620 mm
Positioning Accuracy (mm) :
0.03
Repeatability (X/Y/Z) (mm) :
0.012
Place of Origin :
Henan, China
Dimension(L*W*H) :
4500*2040*1855
Brand Name :
Timeway
Model Number :
CK-660
Voltage :
220V/380V,50HZ
CNC Control System :
Fanuc/Siemens/GSK
Tool Post Stations :
4
Weight (KG) :
5400
Warranty :
1 Year
Key Selling Points :
Competitive Price
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
CNC
Machine Type :
Flat Bed CNC Lathe
Product name :
CNC Lathe Mechine
Keyword :
Cnc Lathe
Precision :
High Precision Machine
Function :
Metal Turning
Color :
Customer Optional
Processing type :
Turning CNC Lathe Mahcine
Model :
CK-660
Max.swing over bed :
660mm
Condition :
New
Spindle Bore(mm) :
105
Toolpost Brand :
enquiry us
Showroom Location :
Egypt, Viet Nam, Russia
Marketing Type :
Hot Product 2019
Year :
2023
Max. Spindle Speed (r.p.m) :
1600 r.p.m
Max. Turned Length (mm) :
2000
Applicable Industries :
enquiry us
Core Components :
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, enquiry us
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$35,000.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description
CNC Turning Machine Flat Bed Type CNC Lathe with Max. Spindle Speed r.p.m 1600 r.p.m

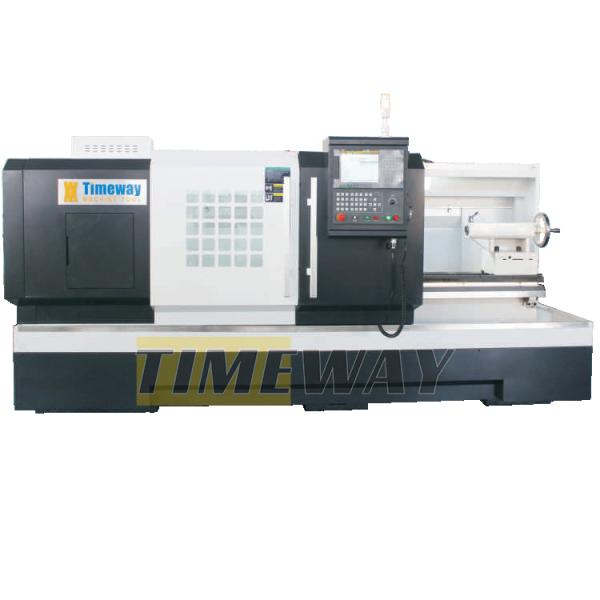

Flat Bed CNC Lathe

Features:

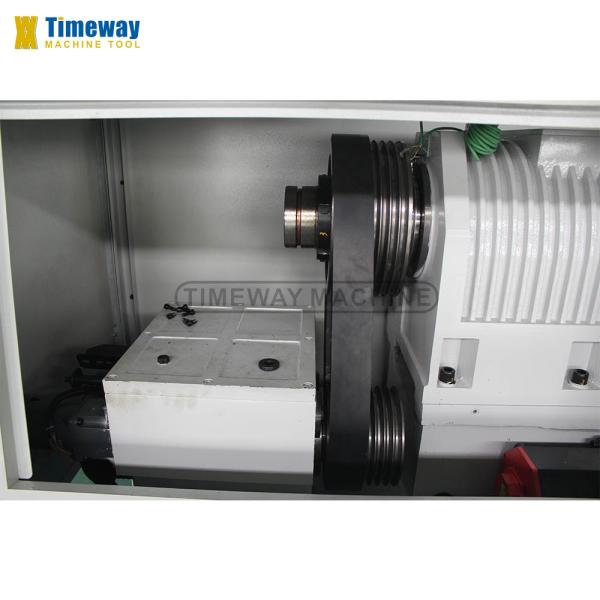

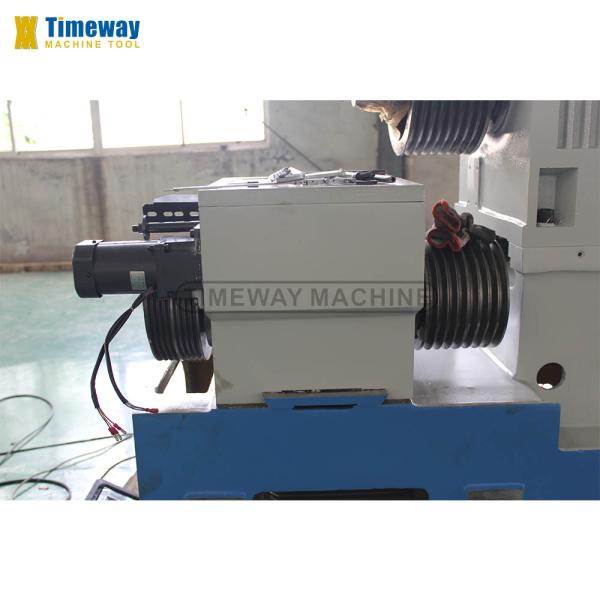

1. They are CNC horizontal lathes. Spindle speed is changed mechanically in three gears together with control of a frequency changer.

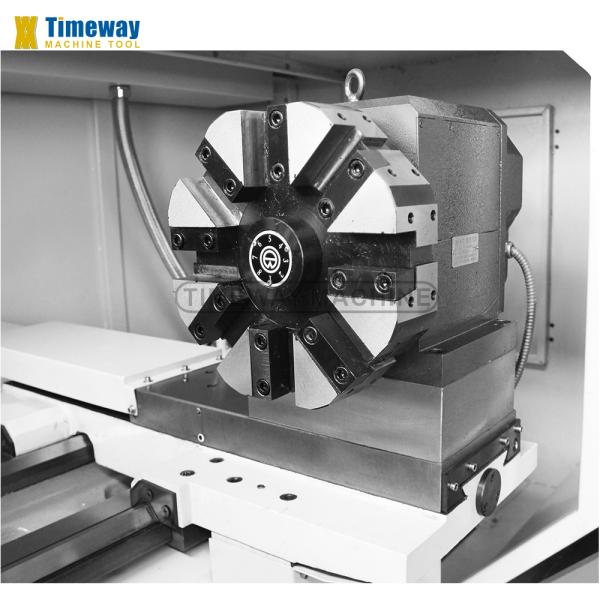

2. Complete with 4-station(standard)/6-station turret(optional), the lathes are available for different cuttings. The sliding door ensures the operators' safety.
3. CNC systems such as FANUC 0i mate TD, Sinumerik 802D or GSK980TD system etc. is provided on request.
4. These lathes can perform internal and external cylindrical turning, arbitrary taper turning, facing and threading.
5. They are suitable for various middle or small batch production, especially for complicated and high accuracy workpieces.
Detail Images
CNC Turning Machine Flat Bed Type CNC Lathe with Max. Spindle Speed r.p.m 1600 r.p.m
CNC Turning Machine Flat Bed Type CNC Lathe with Max. Spindle Speed r.p.m 1600 r.p.m
CNC Turning Machine Flat Bed Type CNC Lathe with Max. Spindle Speed r.p.m 1600 r.p.m
CNC Turning Machine Flat Bed Type CNC Lathe with Max. Spindle Speed r.p.m 1600 r.p.m
Specification
Specification
Unit
CK400
CK500
CK660
Max. swing over bed
mm
420
500
660
Max.. swing over cross slide
mm
210
290
430
Distance between centers
mm
750
1000/1500/2000
1000/1500/2000
Max. turning length
mm
750
1000/1500/2000
1000/1500/2000
Bed width
mm
335
390
390
Spindle nose
mm
A2-6
A2-8
D10
Spindle bore
mm
58
82
105
Spindle taper
-
MT6
Metric 90
Metric 90
Spindle speed (Manual steps)
rpm
60-2000 (3)
45-1600 (3)
45-1600 (3)
Center height
mm
210
250
330
Chuck size
mm
200
250
320
Cross travel (X)
mm
295
295
365
Longitudinal travel (Z)
mm
750
1000/1500/2000
1000/1500/2000
X/Z-axis rapid feed speed
mm/min
8/10
8/12
8/12
X/Z-axis min. feed unit
mm
0.001
0.001
0.001
X/Z-axis feed motor torque
NM
5/7
5/7
7.5/10
Tool post type
-
V4
V4
V4
Tool section size
mm
25x25
25x25
25x25
Tailstock quill diameter
mm
65
75
75
Tailstock quill travel
mm
150
150
150
Tailstock quill taper
-
M4
M5
M5
Main motor power
kw
5.5
7.5
11/15
Coolant pump power
kw
0.12
0.12
0.12
Machine weight
kg
1800
2100/2300/2600
2100/2500/2800
