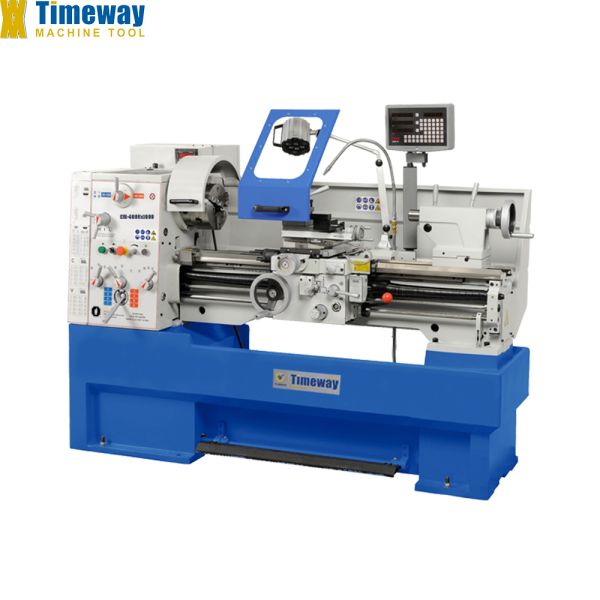

Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Specifications
Max. Length of Workpiece (mm) :
1500
Range of Spindle Speed(r.p.m) :
30 - 550 r.p.m
Machining Capacity :
Medium Duty
Type :
Horizontal
Spindle Motor Power(kW) :
3.2/2.2
Place of Origin :
Henan, China
Brand Name :
TIMEWAY
Model Number :
CM-400V
Weight (KG) :
1555 KG
Warranty :
1 Year
Key Selling Points :
Competitive Price
Marketing Type :
New Product 2024
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Max. swing over bed :
410mm
Max. swing over cross slide :
255mm
Max. swing over gap :
580mm
Center height :
205mm
Distance between centers :
1000/1500mm
Cross slide travel :
210mm
Top slide travel :
140mm
Spindle bore :
52mm
Main motor power :
3.3/2.2kw
Packing size (LxWxH) :
2060/2560x900x1640mm
Condition :
New
Spindle Bore(mm) :
52
Applicable Industries :
Hotels, Building Material Shops, Machinery Repair Shops, Restaurant, Construction works , Energy & Mining
Showroom Location :
Canada, Italy, France, Germany, Brazil, India, Russia, Thailand, Kenya, Algeria, Bangladesh, South Africa, Japan, Malaysia, Australia
Core Components :
Bearing, Gear, Motor, Engine
Max. Turned Length (mm) :
1500 mm
Year :
2024
Price :
$18,800.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Product Description
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2

STANDARD ACCESSORIES:

3-jaw chuck
4-jaw chuck
Face plate
Dead center
Thread chasing dial
Splash guard
Oil gun
Work lamp
Cooling system
Steady rest
Follow rest
Change gears
Reducing sleeve
Foot brake
Leveling wedge
Tool-box &tools
Operation manual.

OPTIONAL ACCESSORIES:

Quick change tool post
2/3-axis digital readout
Living center
Taper turning attachment
Chuck guard
Leadscrew guard
Tool post guard
Specification
SPECIFICATION
UNIT
CM-400V
Max. swing over bed
mm
400
Max. swing over cross slide
mm
255
Max. swing over gap
mm
580
Center height
mm
205
Distance between centers
mm
1000/ 1500
Bed width
mm
250
Tool section size
mm
20x20
Cross slide travel
mm
210
Top slide travel
mm
140
Spindle bore
mm
Φ52
Spindle taper
-
D1-6
Leadscrew
TPI
4
Spindle speed range (steps)
rpm
30-550 or 550-3000 (stepless)
Metric threads range (kinds)
mm
0.1-14 (39)
Inch threads range (kinds)
TPI
2-72 (45)
Module threads range (kinds)
MP
0.3-3.5 (18)
Diametrical threads range (kinds)
DP
8-44 (21)
Longitudinal feed range
mm/rev
0.05-1.7
Cross feed range
mm/rev
0.025-0.85
Tailstock quill diameter
mm
Φ50
Tailstock quill travel
mm
120
Tailstock quill taper
-
MT4
Main motor power
kw
3.3/2.2
Coolant pump power
w
90
Packing size (LxWxH)
mm
2060/2560x900x1640
Net weight
kg
1350/1600
Gross weight
kg
1555/1750
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Factory Display：
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Lathe Machine torno Gap-bed Lathe CM-400V with and Spindle Motor Power kW 3.2/2.2
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
