Specifications
Max. Length of Workpiece (mm) :
5000
Range of Spindle Speed(r.p.m) :
3.15 - 315 r.p.m
Machining Capacity :
Heavy Duty
Type :
Horizontal
Spindle Motor Power(kW) :
22
Place of Origin :
Henan, China
Brand Name :
Timeway/TIMAC
Model Number :
AL-1600C/5000
Dimension(L*W*H) :
8020*1995*2525
Weight (KG) :
10000 KG
Warranty :
1 Year
Key Selling Points :
Easy to Operate
Marketing Type :
Hot Product 2022
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Name :
Heavy Duty Horizontal Lathe
Model :
AL-1600C/5000
CNC or Not :
Nomal
Color :
Customers' Request
Max.swing over bed :
1600mm
Max. swing over cross bed :
1210mm
Distance between centers :
5000mm
Max.turning length :
4800mm
Bed width :
970mm
Spindle bore :
130mm
Condition :
New
Spindle Bore(mm) :
130
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction works , Energy & Mining
Showroom Location :
Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand, Argentina, South Korea, Colombia, Algeria, Romania, Bangladesh, South Africa, Ukraine, Nigeria
Max. Turned Length (mm) :
4800 mm
Core Components :
Bearing, Pump, Gear, Motor, Gearbox, Engine, Other
Packaging Details :
Wooden cases(can be fumigated)
Supply Ability :
150 Set/Sets per Month
Price :
$71,000.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description
Heavy Duty Horizontal Lathe
Model: AL-1250C, AL-1400C, AL-1600C, AL-1800C
5000mm Distance between Centers Manual Lathe for Universal Horizontal Screw-Cutting
Features:
- This series heavy duty lathes adopt 970mm wide rectangular induction hardened and ground bed guide ways, so of excellent stability, high rigidity, and with max. bearing 10tons between centers.
- The main spindle is of precision roller bearing 3-point supporting structure.
- Saddle guide ways with Teflon belt coated, rotating tailstock quill structure to minimize friction and heat generation.
- The machine are suitable for various turning works, such as turning of external and internal cylindrical surfaces, end faces,and turning of metric or inch threads, modular threads and diametrical pitch threads, etc.
- Motorized short taper turning could be done by the top slide independently, and long taper’s motorized turning could be done by top slide combined with longitudinal feed.
- Further more, these lathes can also carry out drilling, trepanning and boring processes, etc.
Detailed Images
5000mm Distance between Centers Manual Lathe for Universal Horizontal Screw-Cutting

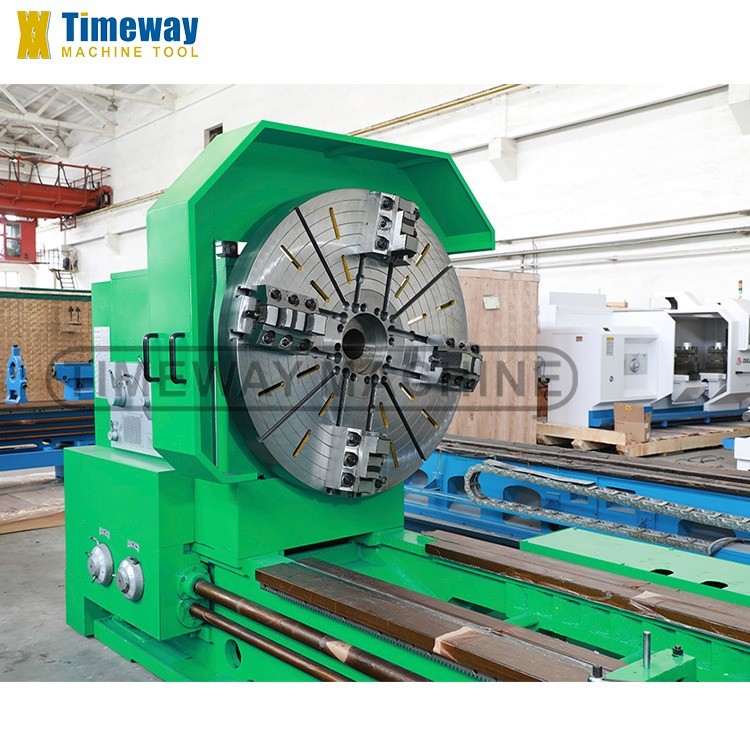

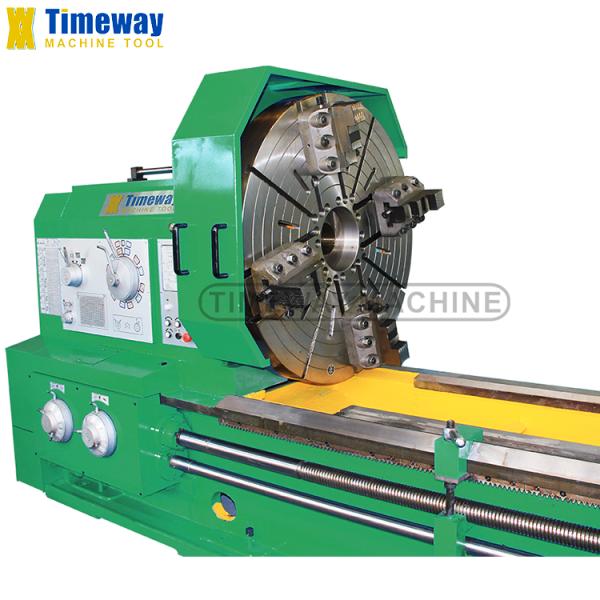

Headstock & Chuck
⇒ The horizontal lathes gain wide-range spindle speed of 3.15-315 rpm with 33 speeds.
⇒ The heavy duty lathes are equipped with 4-jaw heavy lathe chuck, strong clamping force.

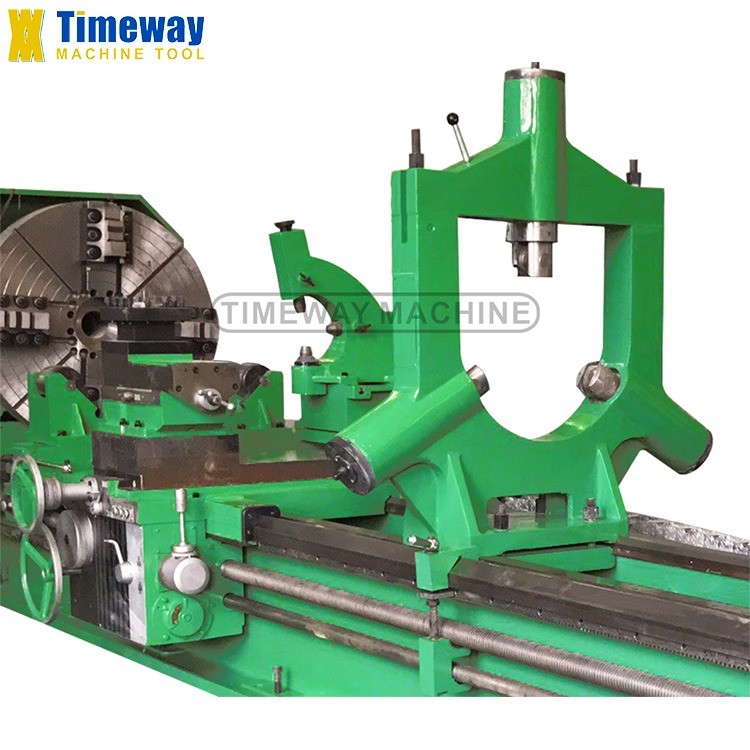

Closed-type Steady Rest
⇒ The steady rest adopts three-point supporting structure, positioning accuracy is higher.
5000mm Distance between Centers Manual Lathe for Universal Horizontal Screw-Cutting
5000mm Distance between Centers Manual Lathe for Universal Horizontal Screw-Cutting

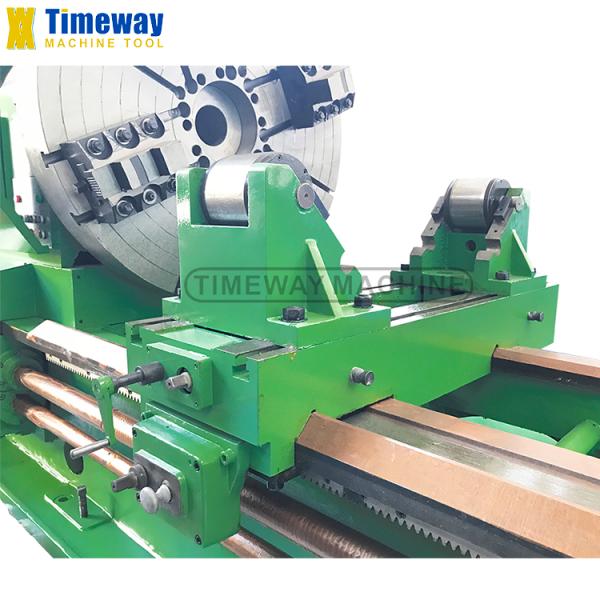

Open-type Steady Rest
⇒ Roller support (open-type steady rest) is standard configuration, make sure cutting bigger parts.
⇒ The roller support move right and left on the rails of lathes through gear and rack, reduce labor intensity.

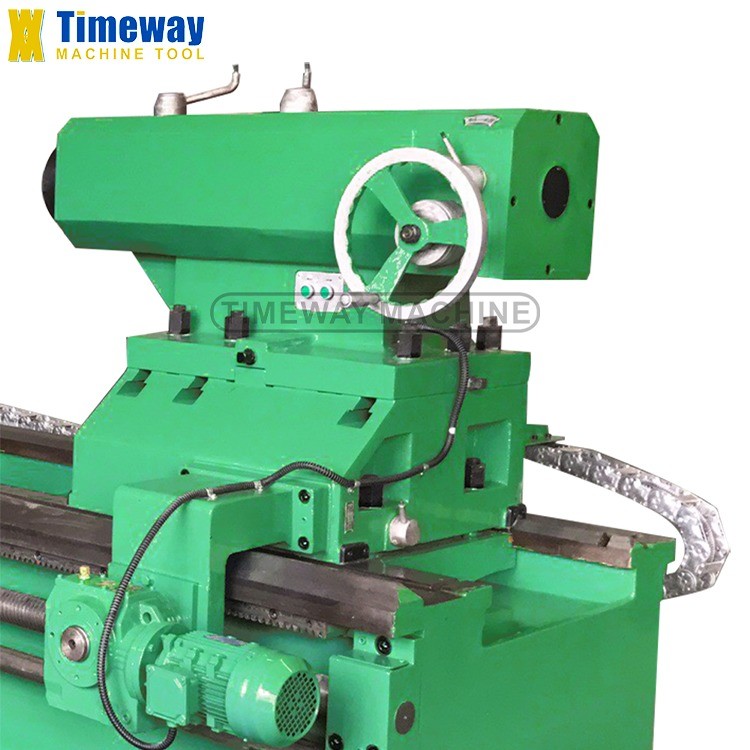

Motorized Tailstock
⇒ Horizontal lathes are equipped with motorized tailstock, movement simple and easy.
⇒ The sleeve of tailstock can rough feed and fine feed.
5000mm Distance between Centers Manual Lathe for Universal Horizontal Screw-Cutting
Specification
Specification
Unit
AL-1250C
AL-1400C
AL-1600C
AL-1800C
Max.swing over bed
mm
1250
1400
1600
1800
Max. swing over cross bed
mm
865
1010
1210
1410
Distance between centers
mm
3000/4000/5000/6000/8000/10000/12000/
Max.turning length
mm
2800/3800/4800/5800/7800/9800/11800
Bed width
mm
970
970
970
970
Max.cutting force
N
45000
45000
45000
45000
Loading capacity
kg
10000
10000
10000
10000
Spindle nose
-
A2-15
A2-15
A2-15
A2-15
Spindle bore
mm
130
130
130
130
Spindle taper
-
Metric 140
Metric 140
Metric 140
Metric 140
Spindle speed range
rpm
Forward:3.15-315,Reverse:3.5-291
Spindle speed step
steps
Forward:21,Reverse:12
56
56
56
X/Z-axis feed kinds
kinds
56
56
56
56
Feed range
mm/r
longitudinal:0.1-12, cross:0.05-6, top tool-post：0.025-3
Metric threads range(kinds)
mm
1-120(44)
1-120(44)
1-120(44)
1-120(44)
Inch threads range(kinds)
TPI
28-1/4(31)
28-1/4(31)
28-1/4(31)
28-1/4(31)
Module threads range(kinds)
MP
0.5-60(45)
0.5-60(45)
0.5-60(45)
0.5-60(45)
Diametrical threads range(kinds)
DP
1/2-56(38)
1/2-56(38)
1/2-56(38)
1/2-56(38)
Cross slide travel
mm
650
650
650
650
Top slide travel
mm
300
300
300
V4
Main motor power
kw
22
22
22
30
Machine length
mm
6020/7020/8020/9020/11020/13020/15020
Machine width
mm
1995
1995
1995
2665
Machine height
mm
2175
2325
2525
2680
Accessories

STANDARD ACCESSORIES

4-jaw heavy independent chuck,
Steady rest (over 3M length),
Follow rest,
Manual moving tailstock,
Dead center,
4-station tool post,
Cooling system,
Work lamp,
Tools & tool-box,
Leveling wedge and bolts,
Operation manual (English).

OPTIONAL ACCESSORIES

2 or 3-axis DRO,
Chuck guard,
Tool-post guard,
Rear splash guard,
Electric moving tailstock,
Grinding attachment.
