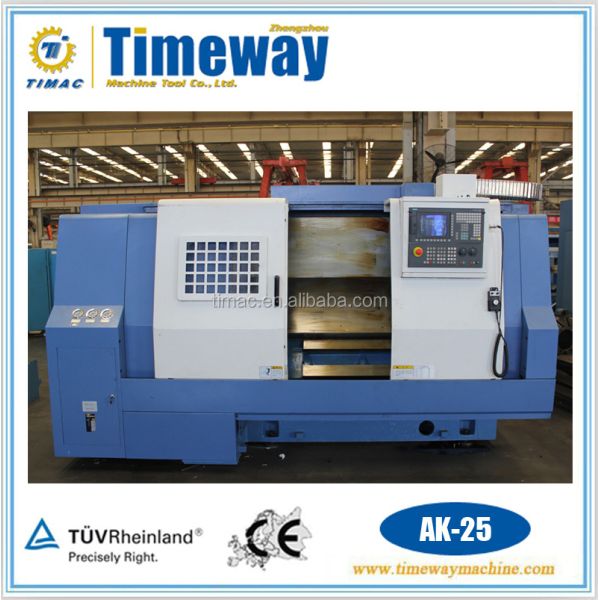

Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations
Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations
Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations
Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations
Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations
Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations
Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations
Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations
Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations
Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations
Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations
Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
3000
Structure :
Slant Bed Lathe
Machining Capacity :
Heavy Duty
Width of bed (mm) :
180 mm
Spindle Motor Power(kW) :
30
No. of Spindles :
Twin
Number of Axes :
3
Travel (X Axis)(mm) :
230 mm
Travel (Z Axis)(mm) :
2965 mm
Positioning Accuracy (mm) :
0.01 mm
Repeatability (X/Y/Z) (mm) :
0.007
Place of Origin :
China
Dimension(L*W*H) :
2270x1470x1650mm
Brand Name :
TIMAC
Model Number :
AK-25
Voltage :
As required
CNC Control System :
FANUC
Tool Post Stations :
12
Weight (KG) :
4500
Warranty :
1 Year
Key Selling Points :
Automatic
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
CNC
Automatic Grade :
Automatic
After-sales Service Provided :
Online support
cnc lathe :
machine tools
Max. Swing Diameter :
520mm
Weight :
4500/5000kg
Power(W) :
30kw
Certification :
ISO9001; CE
Warrany :
1 year
Max. length of workpiece :
3000mm
Condition :
New
Applicable Industries :
Building Material Shops, Manufacturing Plant, Other
Showroom Location :
France, Peru, Russia, Thailand, Malaysia
Marketing Type :
Other
Core Components :
Bearing, Motor, Gear, Gearbox
Max. Turned Length (mm) :
1905
Year :
2022
Max. Spindle Speed (r.p.m) :
3500 r.p.m
Spindle Bore(mm) :
87
Packaging Details :
Wooden cases (fumigated)
Port :
Tianjin Port
Supply Ability :
50 Set/Sets per Month
Price :
$53,000.00/sets 1-2 sets
MOQ :
1 set
Description

Product Description

Full Function CNC Lathe

Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations

Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations

Feature:

1. Universal CNC lathe machine
2. Semi-closed loop CNC machine
3. CNC turning center with C axis
4. Slant Bed Type CNC Lathe

Parameter:

Specification

Unit

AK-25

AK-35

Swing over bed

mm

520

660

Max.turning dia

mm

420

550

Max.turning dia over carriage

mm

360

420

Max.turning length

mm

530/905/1405/1905

780/1530/1890/2890

Distance between centers

mm

625/1000/1500/2000

890/1640/2000/3000

Max.bar capacity

mm

70

80

X-axis travel

mm

230

305

Z-axis travel

mm

590/965/1465/1965

855/1605/1965/2965

Rapid traverse(x-and z-axis)

m/min

12.0/15

12.0/15

Cutting feed(x-and z-axis)

mm/min

5000

5000

Hand feed(x-and z-axis)

mm/min

1260

1260

Spindle speed

rpm

35-3500

25-2500

Spindle nose

mm

A2-8

A2-8

Size of chuck

inch

10"

12"

Spindle front end bearing(dia)

mm

130

160

Spindle bore(dia)

mm

87

92

Number of stations

12

12

Indexing time

s

1

1

Tool shank size

mm

25×25

25×25

Boring bar shank dia

mm

40

50

Main spindle motor

kw

18.5/15

30/22

X-axis servo motor

kw

1.6

3

Z-axis servo motor

kw

3

4

Max travel of tailstock

mm

490/865/1365/1865

760/1500/1900/2900

Tailstock quill dia

mm

85

110

Tailstock travel

mm

80

100

Tailstock quill taper hole

MT-5

MT-5

Power

kw

30

46

Machine weight

kg

5000/5500/6500/7500

8000/10000/11000/15000

Floor space

3000/3380×1545,

4550×1630, 4960×1900

3620×1820, 4725×1840,

5825×1900, 7000×2200

X-axis positioning accruacy R

mm

0.01

0.01

X-axis positioning accruacy B

mm

0.012

0.012

X-axis positioning accruacy A

mm

0.025

0.025

Z-axis positioning accruacy R

mm

0.007

0.007

Z-axis positioning accruacy B

mm

0.006

0.006

Z-axis positioning accruacy A

mm

0.016

0.016


*** Standard accessories:

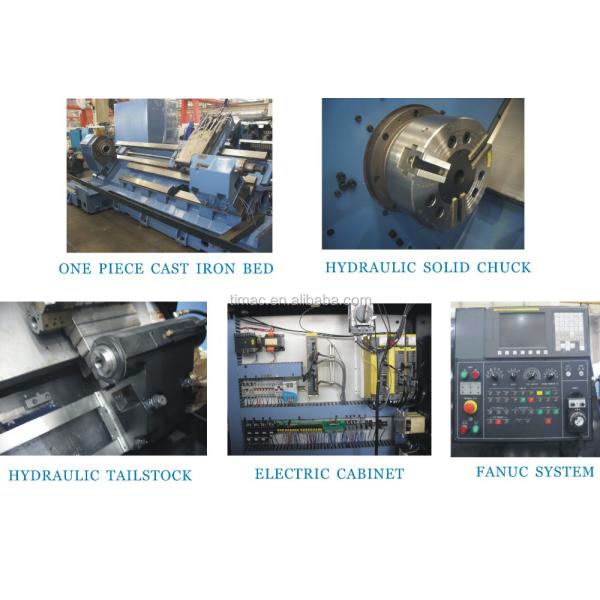

FANUC 0i TD CNC system, Coolant system, Hydraulic system, Standard worklight, Chip splash guard complete, Operation light, Hydraulic slide chuck, Drum type turret, Manual tailstock, C-axis function (M series), Powered turret (M series), Finger chuck (M series), One set of tool kits, Technical documents.

*** Optional accessories:

Chip conveyor, Chip bucket, Tool setter, Hydraulic thru hole chuck, Programming tailstock, Automatic door, Hydraulic steady rest.

Detailed Images

Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations

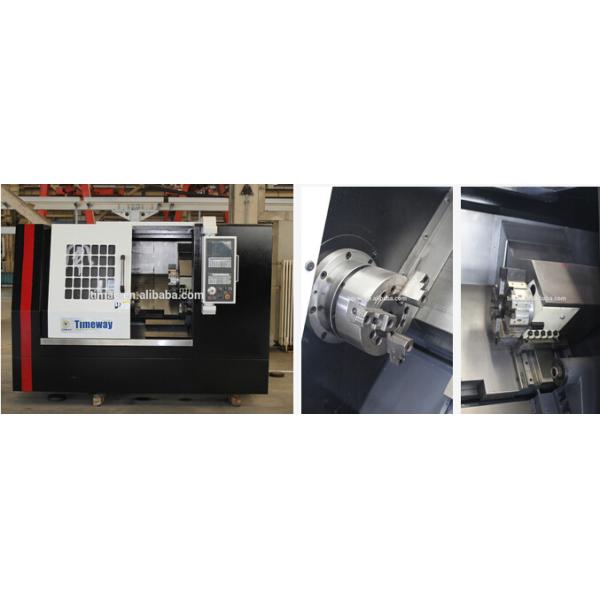

* AKJ-15, AKJ-25 Series Economic Type Slant Bed CNC Lathe

Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations

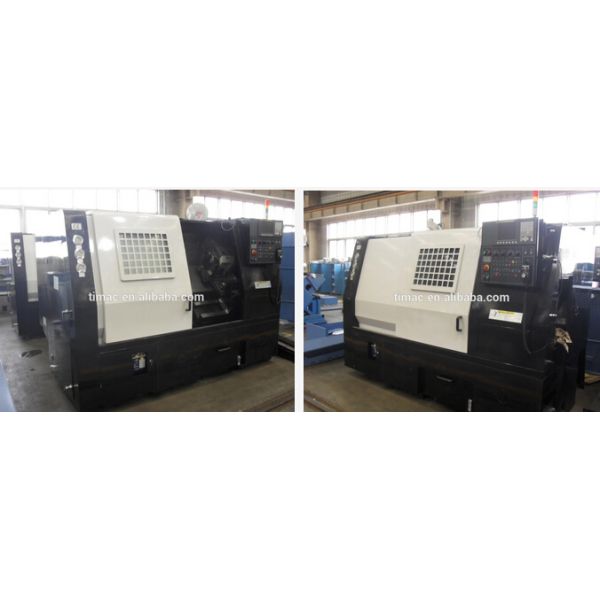

* AK-15B Series Slant Bed CNC Lathe

Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations

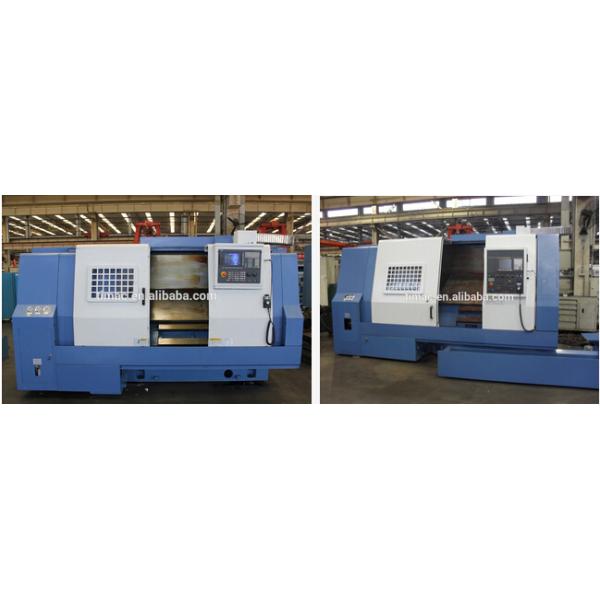

* AK-25 Series Slant Bed CNC Lathe

Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations

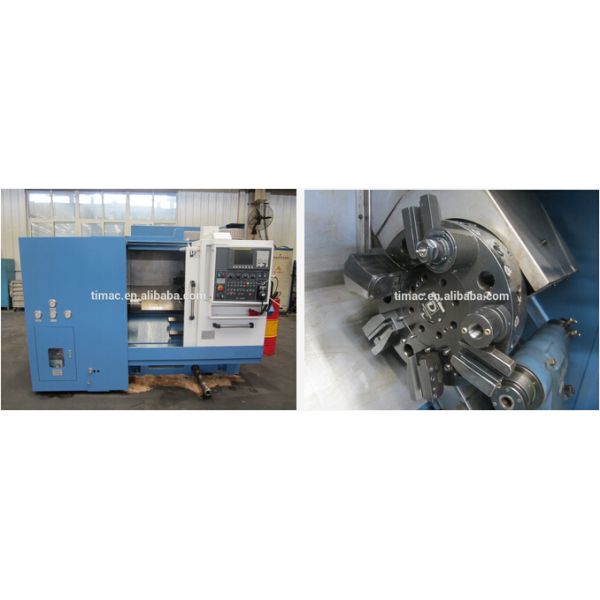

* AK-15M, AK-25M Sereies CNC Turning Center (With C-axis)

Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations

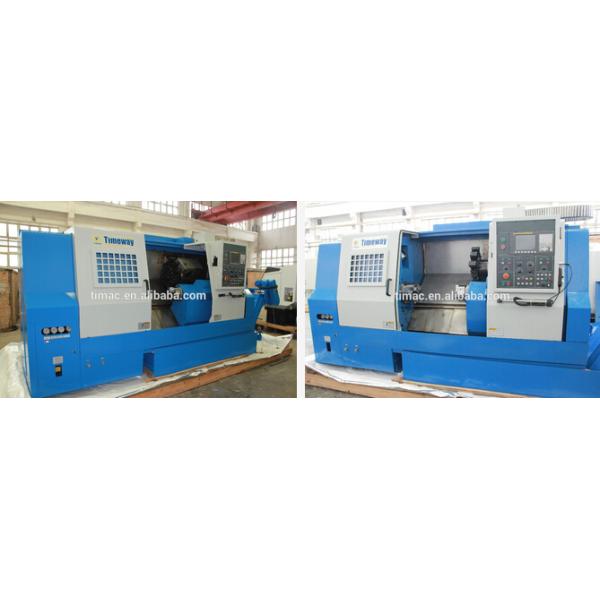

* AK-25DS Sereies Double Spindle CNC Lathe

Packaging & Shipping

Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations

Package: Wooden pallet & plastic cover (Standard)

or Plywood case (Optional)

Packing size:

One piece in one case: 2950*1150*1750MM N.W./G.W.: 1850/2250KG
