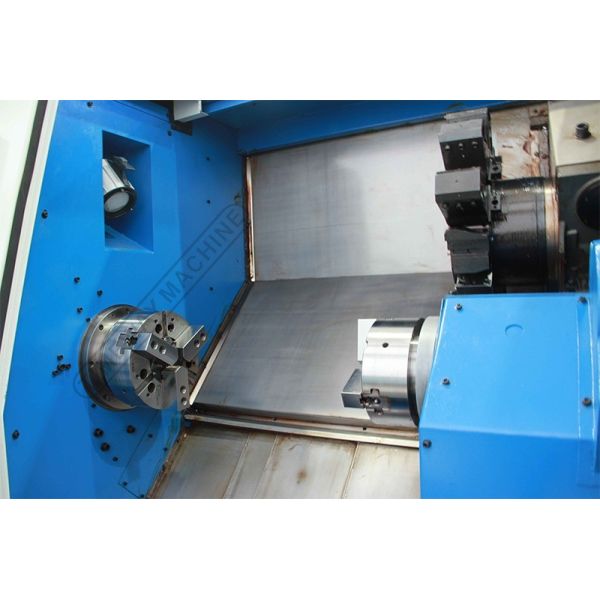

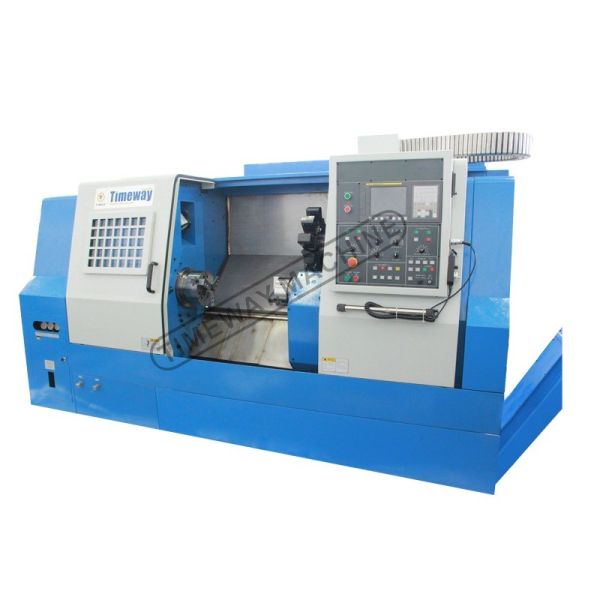

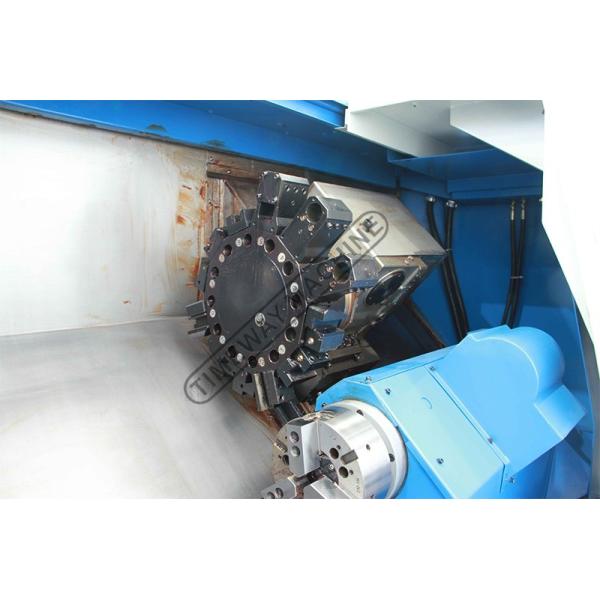

AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining
AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining
AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining
AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining
AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining
AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining
AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining
AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining
AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining
AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
620
Structure :
Slant Bed Lathe
Machining Capacity :
Heavy Duty
Width of bed (mm) :
1000 mm
Spindle Motor Power(kW) :
15
No. of Spindles :
Twin
Number of Axes :
2
Travel (X Axis)(mm) :
250 mm
Travel (Z Axis)(mm) :
650 mm
Positioning Accuracy (mm) :
±0.003
Repeatability (X/Y/Z) (mm) :
±0.003
Place of Origin :
Henan, China
Dimension(L*W*H) :
4800x2200x2300mm
Brand Name :
TIMAC, TIMEWAY
Model Number :
AK-25DS
Voltage :
220V/380V/400V
CNC Control System :
FANUC
Tool Post Stations :
12
Weight (KG) :
5500
Warranty :
1 Year
Key Selling Points :
High-accuracy
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Automatic Grade :
Automatic
After-sales Service Provided :
Engineers available to service machinery overseas
High Precision CNC Lathe :
Double Spindle CNC Lathe
Max. Swing Diameter :
600mm
Power :
18.5/15KW
Weight :
6500kg
Warrany :
1year
Max.length of workable :
620mm
Machine Type :
Slant Bed Cnc Lathe Machine
X travel :
250mm
Condition :
New
Applicable Industries :
Building Material Shops, Manufacturing Plant, Other
Showroom Location :
Viet Nam, Brazil, Peru, Russia, Thailand
Marketing Type :
Ordinary Product
Core Components :
Bearing, Motor, Gear, Gearbox
Max. Turned Length (mm) :
500
Year :
2022
Max. Spindle Speed (r.p.m) :
4500 r.p.m
Spindle Bore(mm) :
87
Packaging Details :
wooden case / plywood case
Port :
China seport
Supply Ability :
50 Set/Sets per Year
Price :
$99,999.00/sets 1-2 sets
MOQ :
1 set
Description

Product Description

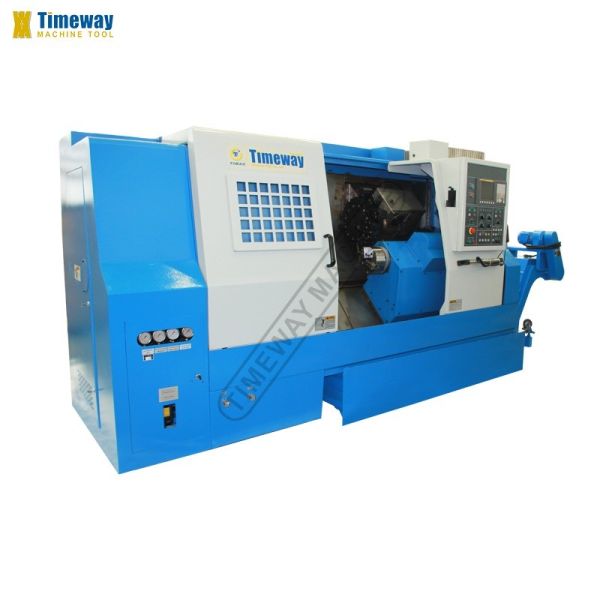

Double Spindle CNC Lathe AK-25DS

AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining

AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining

Specification AK-25DS
Capacity Swing over bed Φ600mm
Swing over saddle Φ420mm
Distance between the end face of two chuck 620mm
Max. turning diameter Φ420mm
Max. turning length 500mm
Travel and feed Sub-spindle travel 550mm
X travel 250mm
Z travel 650mm
X travel speed 18000mm/min
Z travel speed 20000mm/min
Hand wheel 0.001mm/0.01mm/0.1mm
X, Z feeding speed 1260mm/min
Spindle Spindle speed 35-3500rpm, 45-4500rpm
Spindle nose A2-8(main spindle), A2-6(sub-spindle)
Size of chuck 10”(main spindle), 8”(sub-spindle)
Spindle hole 87mm(main spindle), 62mm(sub-spindle)
Front bearing diameter Φ130mm(main spindle), Φ110mm(sub-spindle)
Turret Number 12
Tool shrank size 25x25mm
Drilling diameter 40mm
Tool changing 1.0sec
Motor Spindle motor AC18.5/15KW
X axis feed motor AC1.6KW
Z axis feed motor AC3.0KW
Sub-spindle feed motor AC3.0KW
Sub-spindle motor AC11/9KW
Consumed power 40KVA
Others Coolant fluid volume 200L
Motor 0.18KW(1HP)
Machine weight 5500kg
Machine height 1950mm
Floor space(LxW) 3370x1700mm
Positioning accuracy Z-axis R: 0.006mm, B: 0.008mm, A: 0.010mm
X-axis R: 0.006mm, B: 0.004mm, A: 0.010mm
R: repeat positioning accuracy; B: reverse warp; A: positioning accuracy.

Packaging & Shipping

AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining

Our Services

Related Machines supplied:

***Full Function CNC Lathe (slant bed type)

Model: AK-10, AK-15B, AK-25, AK-35, AK-45

***CNC Turning Center (CNC lathe with C axis for drilling and milling also)

Model: AK-15M, AK-25M, AK-35M

Company Information

AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining

Why Choose Us
Why choose TIMEWAY MACHINE?

1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 70 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving.
AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining

Company Introduction

AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty MachiningAK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining

Customer Visiting

AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining

Exhibition&Training

AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining
