1700KG Weight Metal Horizontal CNC Turning Machine for Large-Scale Manufacturing
1700KG Weight Metal Horizontal CNC Turning Machine for Large-Scale Manufacturing
1700KG Weight Metal Horizontal CNC Turning Machine for Large-Scale Manufacturing
1700KG Weight Metal Horizontal CNC Turning Machine for Large-Scale Manufacturing
1700KG Weight Metal Horizontal CNC Turning Machine for Large-Scale Manufacturing
1700KG Weight Metal Horizontal CNC Turning Machine for Large-Scale Manufacturing
Specifications
Type :
Horizontal
Max. Length of Workpiece (mm) :
1500
Structure :
Flat Bed Lathe
Machining Capacity :
Heavy Duty
Width of bed (mm) :
250 mm
Spindle Motor Power(kW) :
5.5
No. of Spindles :
Twin
Number of Axes :
2
Travel (X Axis)(mm) :
360 mm
Travel (Z Axis)(mm) :
210 mm
Place of Origin :
China
Dimension(L*W*H) :
2170*1540*1950mm
Brand Name :
TIMAC, Timeway
Model Number :
CK-360 CK-400
Voltage :
380V/50HZ/3PH
CNC Control System :
Siemens
Tool Post Stations :
8
Weight (KG) :
1700
Warranty :
1 Year
Key Selling Points :
Automatic
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
CNC
Max. swing diameter over bed :
360mm
Max. swing diameter over carriage :
210mm
Max. length of workpiece :
750/1000/1500mm
Spindle speed range :
150-2000rpm
Diameter of spindle bore :
60
CNC system :
SIEMENS or FANUC or Others
Max. Swing Diameter :
360mm
Weight :
1700kg(750mm)
Power :
5.5KW
Condition :
New
Spindle Bore(mm) :
60
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining
Showroom Location :
Turkey, Germany, Kenya, Chile, Algeria, Uzbekistan, Malaysia, Australia
Marketing Type :
Ordinary Product
Core Components :
Motor, Pump, Gear
Year :
2022
Max. Spindle Speed (r.p.m) :
2000 r.p.m
Max. Turned Length (mm) :
1500
Packaging Details :
Wooden case or pallet
Port :
China Port
Supply Ability :
1000 Set/Sets per Year
Price :
$10,000.00/sets 1-2 sets
MOQ :
1 set
Description

Horizontal CNC Turning Machine (CNC Lathe)

CK-360 CK-400

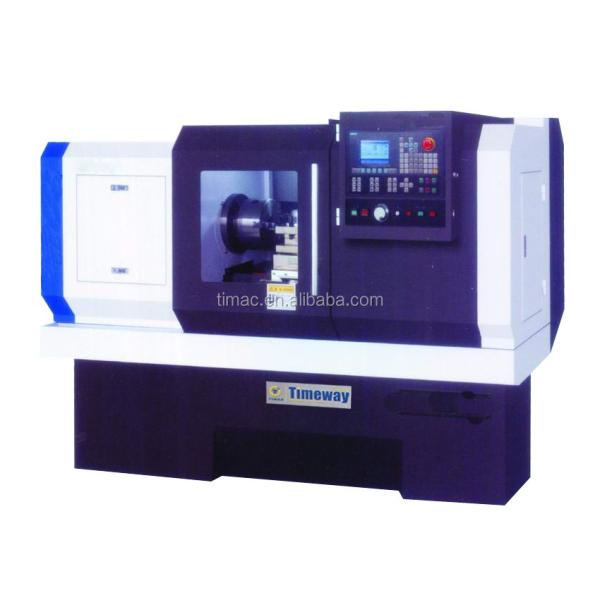

Main Outlook

1700KG Weight Metal Horizontal CNC Turning Machine for Large-Scale Manufacturing

Specifications List

Technical Parameters

Specifications Units CK-360 CK-400
Max. swing diameter over bed mm Φ360 Φ400
Max. swing diameter over carriage mm Φ210 Φ245
Max. length of workpiece mm 750/1000/1500
Range of spindle speed rpm Variable stepless 150-2000;
With 2 change gears 60-600/280-1800
Spindle bore mm Φ60
Spindle taper MT6
Number of tool carrier 4/6/8 or gang-type tool carrier
Transverse min. setting unit of motor mm 0.001
Longitudinal min. setting unit of motor mm 0.001
Transverse moving speed of post(servo/stepper) m/min 8
Longitudinal moving speed of post(servo/stepper) m/min 6
Taper of tailstock quill MT4
Max. range of tailstock quill mm 120
Motor power kw 5.5
Packing size mm 2170/2420/2920*1540*1950
Net weight kg 1700/1900/2200

Optional Accessories
Pneumatic chuck
Hydraulic chuck
Pneumatic tailstock
Hydraulic tailstock
Spring fastener
