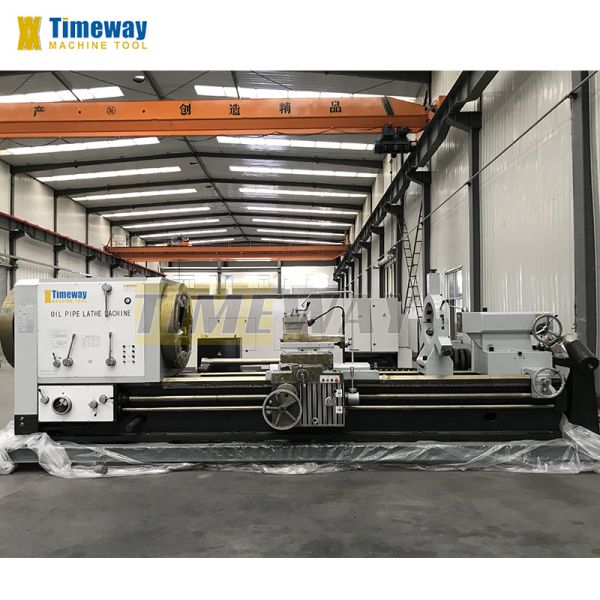

16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
Specifications
Max. Length of Workpiece (mm) :
3000
Range of Spindle Speed(r.p.m) :
0 - 1870 r.p.m
Machining Capacity :
Medium Duty
Width of bed (mm) :
780
Type :
Horizontal
Place of Origin :
China
Brand Name :
TIMAC
Model Number :
Q-520
Voltage :
220V/380V
Dimension(L*W*H) :
5000/6500x2100x1800 mm
Weight (KG) :
16500 KG
Warranty :
1 Year
Key Selling Points :
Multifunctional, Automatic, High Safety Level, High-accuracy, Easy to Operate
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Max. Weight of Workpiece(kg) :
6000 kg
Spindle Taper :
ISO40
Cutting torque :
456 N.m
Rapid Feed Speed(mm/min) :
0 - 1870 mm/min
Feed Speed(mm/min) :
0 - 1870 mm/min
Tool Post Stations :
4
CNC or Not :
Not
Machine Type :
Oil Country Lathe
Max. swing over bed :
1200 mm
Max. swing over cross slide :
710 mm
Distance between centers :
1500/3000 mm
X-axis travel :
520 mm
Max. load capacity :
6000 kg
Spindle bore :
520 mm
Chuck size :
1000 mm
Main motor power :
22 kw
Price :
$47,890.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description

Oil country lathe Q-390,Q-440,Q-520

* After years of improvement and running-in, this pipe threading lathe is already a high-performance lathe with mature structure and stable performance.
* The lathe is mainly used in oil field, suitable for processing and repairing drill pipe, drill collar, coupling, casing, and so on. * At the same time suitable for processing complex shape of the shaft, disk parts, such as turning inner and outer cylindrical surface, conical surface, end face.
* The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle.
16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
Specification
Unit
Q-390
Q-440
Q-520
Max. swing over bed
mm
1000
1000
1200
Max. swing over cross slide
mm
610
610
710
Distance between centers
mm
1500/3000
1500/3000
1500/3000
Pipe threading range
mm
190-380
270-430
330-510
Bed width
mm
755
755
755
X-axis travel
mm
520
520
520
Z-axis travel
mm
1350/2850
1350/2850
1350/2850
Max. load capacity
kg
6000
6000
6000
Spindle bore
mm
390
440
520
Spindle speed steps
steps
9
9
9
Spindle speed
rpm
6-205
4.9-180
4.9-180
Chuck size
mm
850
1000
1000
Chuck type
-
4-jaw electric
4-jaw electric
4-jaw electric
Turret type (manual)
-
V4
V4
V4
Tool shank size
mm
45x45
45x45
45x45
X-axis feed range (steps)
mm/r
0.05-0.75(32)
0.05-0.75 (32)
0.05-0.75 (32)
X-axis rapid feed speed
mm/min
1870
1870
1870
Z-axis feed range (steps)
mm/r
0.1-1.5(32)
0.1-1.5 (32)
0.1-1.5 (32)
Z-axis rapid feed speed
mm/min
3740
3740
3740
No. of Metric thread and range
mm
1-15(23)
1-15 (23)
1-15 (23)
No. of Inch thread and range
TPI
2-28(22)
2-28 (22)
2-28 (22)
Tailstock quill diameter
mm
140
160
160
Tailstock quill taper
-
MT6
MT6
MT6
Tailstock quill travel
mm
300
300
300
Main motor power
kw
22
22
22
Rapid motor power
kw
1.5
1.5
1.5
Coolant motor power
kw
0.125
0.125
0.125
Machine dimensions (LxWxH)
mm
4900/6400x2100x1700
5000/6500x2100x1700
5000/6500x2100x1800
Machine weight
kg
12800/14300
13000/14500
15000/16500
16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
· Electric chuck
· Follow rest
· Dead center
· 4-station tool post
· Taper turning attachment
· Cooling system
· Work lamp
· General tools
· Leveling wedge and bolts
· Operation manual (English).
· 2 or 3-axis digital indicator
· Chuck guard
· Tool-post guard
· Rear support for long pipe
Why Choose Us
16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
