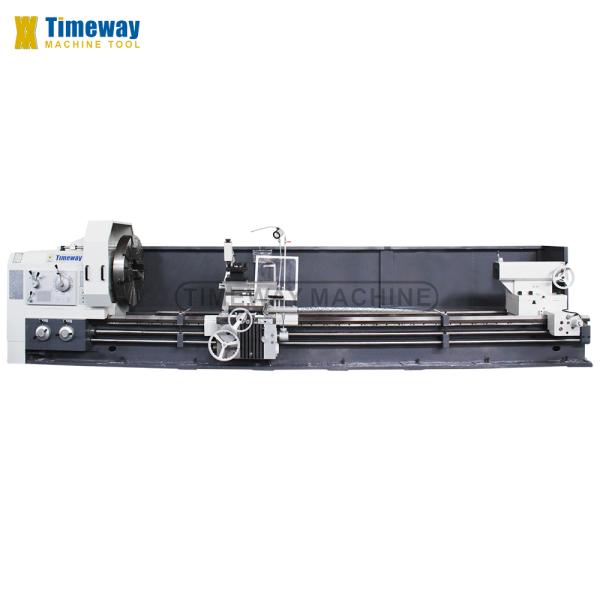

High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
Specifications
Max. Length of Workpiece (mm) :
1300
Range of Spindle Speed(r.p.m) :
3.15 - 315 r.p.m
Machining Capacity :
Heavy Duty
Type :
Horizontal
Place of Origin :
Henan, China
Brand Name :
TIMEWAY
Model Number :
AL-1250B
Dimension(L*W*H) :
4600 2150 1825
Weight (KG) :
6000 KG
Warranty :
1 Year
Key Selling Points :
Automatic, Competitive Price, High Safety Level, High-accuracy, Energy saving, Sustainable, High Productivity, Long Service Life, Easy to Operate, High Rigidity
Marketing Type :
Hot Product 2024
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Max. Weight of Workpiece(kg) :
6000
Spindle Taper :
Metric140
Cutting torque :
0 N.m
Rapid Feed Speed(mm/min) :
935 - 3740 mm/min
Feed Speed(mm/min) :
935 - 3740 mm/min
Tool Post Stations :
4
CNC or Not :
Normal
Machine Type :
Flat Bed Lathe
Product name :
Horizontal Turning Machine
Name :
Bench Lathe
Keyword :
Universal Metal Lathe
After-sales Service Provided :
12 Months
Function :
Machining Metal
Automatic Grade :
Normal
Precision :
High Precision High Accuracy
Color :
Customrized
Price :
$40,000.00/sets 1-1 sets
MOQ :
1 set
Description
Product Description
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
Specification
Max. swing over bed
1250mm
Max. swing over cross slide
865mm
Distance between centers
1500mm
Max. turning length
1300mm
Bed width
755mm
Loading capacity
6000(opt: 8000)kg
Spindle nose
A2-15 (8xM22)
Spindle bore
130mm
Spindle taper
Metric 140
Spindle speed range
Forward: 3.15-315, Reverse: 3.5-291rpm
Spindle speed step
Forward: 21, Reverse: 12steps
X/Z-axis feed kinds
56/56kinds
Feed range
Longitudinal: 0.1-12; Cross: 0.05-6; Top tool-post: 0.025-3mm
Metric threads range (kinds)
1-120 (44)mm
Inch threads range (kinds)
28-1/4 (31)TPI
Module threads range (kinds)
0.5-60 (45)MP
Diametrical threads range (kinds)
1/2-56 (38)DP
Distance spindle center to tool base
48mm
Tool post swivel angle
±90°
Cross slide travel
580mm
Top slide travel
300mm
Tool section size
45x45mm
Rapid feed speed
Longitudinal: 3740; Cross: 1870; Top tool-post: 935mm/min
Tailstock quill diameter
160mm
Tailstock quill travel
300mm
Tailstock quill taper
MT6
Main motor power
22kw
Machine length
4600mm
Machine width
2150mm
Machine height
1825mm

STANDARD ACCESSORIES:

4-jaw independent chuck, Steady rest (over 3M length), Follow rest, Manual moving tailstock, Dead center, 4-station tool post,Cooling system, Work lamp, Tools & tool-box, Leveling wedge and bolts, Operation manual (English).

optional ACCESSORIES:

2 or 3-axis DRO, Chuck guard, Tool-post guard, Rear splash guard, Electric moving tailstock, Grinding attachment.
One-Stop Shopping
You can click on the picture to view the products you are interested in
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
Factory Display：
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
High Accuracy Metal Flat Bed/Bench Lathe/ 6000 KG AL-1250B Horizontal Turning Machine
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
