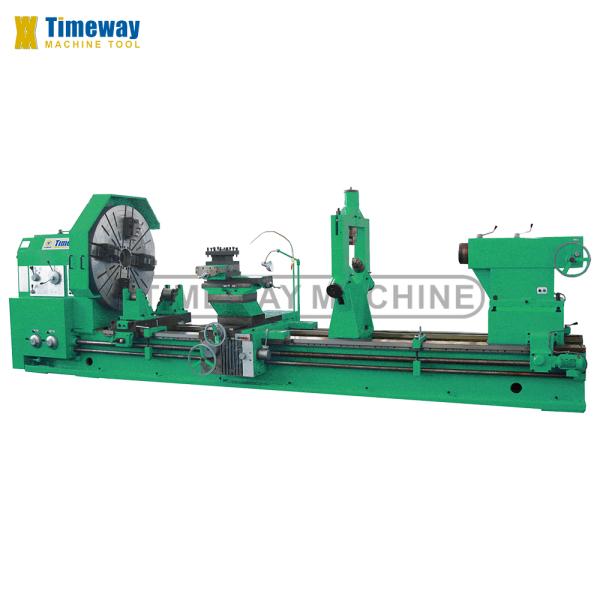

Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Specifications
Max. Length of Workpiece (mm) :
2800
Range of Spindle Speed(r.p.m) :
3.15 - 315 r.p.m
Machining Capacity :
Heavy Duty
Type :
Horizontal
Place of Origin :
Henan, China
Brand Name :
TIMEWAY
Model Number :
AL-1600
Dimension(L*W*H) :
6120 2130 2380
Weight (KG) :
20000 KG
Warranty :
1 Year
Key Selling Points :
Automatic, Competitive Price, High Safety Level, High-accuracy, Energy saving, Sustainable, High Productivity, Long Service Life, Other, Easy to Operate, Flexible Manufacturing, High Rigidity, Low Maintenance Cost
Marketing Type :
Hot Product 2024
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Max. Weight of Workpiece(kg) :
160000
Spindle Taper :
Metric140
Cutting torque :
0 N.m
Rapid Feed Speed(mm/min) :
0 - 6000 mm/min
Feed Speed(mm/min) :
0 - 4000 mm/min
Tool Post Stations :
4
Name :
Bench Lathe
Machine Type :
Horizontal Metal Turning Lathe Machine
Product Name :
Manual Metal Lathe Machine
Keyword :
Universal Metal Lathe
After-sales Service Provided :
Spare Parts
CNC or Not :
Normal Lathe Machine
Function :
Machining Metal
Automatic Grade :
Normal
Product type :
Horizontal Universal Lathe
Precision :
High Precision High Accuracy
Price :
$140,000.00/sets 1-1 sets
MOQ :
1 set
Description
Product Description
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Specification
Max. swing over bed
1600mm
Max. swing over cross slide
1250mm
Distance between centers
3000mm
Max. turning length
2800mm
Bed width
1100mm
Loading capacity
16(opt: 20)tons
Spindle nose
A2-15
Spindle bore
100mm
Spindle taper
Metric 140
Spindle speed range
Forward: 3.15-315, Reverse: 3.5-291rpm
Spindle speed step
Forward: 21, Reverse: 12steps
X/Z-axis feed kinds
56kinds
Feed range
Longitudinal:0.1-12; Cross:0.05-6; Top tool-post: 0.025-3mm/r
Metric threads range (kinds)
1-120 (44)mm
Inch threads range (kinds)
28-1/4 (31)TPI
Module threads range (kinds)
0.5-60 (45)MP
Diametrical threads range (kinds)
1/2-56 (38)DP
Distance from spindle center to tool base
53mm
Tool post swivel angle
±90°
Cross slide travel
850mm
Top slide travel
360mm
Tool section size
50x50mm
Tool post feed per gar
0.05mm
Tailstock quill diameter
260mm
Tailstock quill travel
300mm
Tailstock quill taper
Metric 80
Main motor power
30kw
Machine length
6120mm
Machine width
2130mm
Machine height
2380mm

STANDARD ACCESSORIES:

4-jaw heavy duty independent chuck, Steady rest, Dead center, 4-station tool post, Cooling system, Work lamp, Electric moving tailstock, Tools & tool-box, Leveling wedge and bolts, Operation manual (English).

OPTIONAL ACCESSORIES:

Face plate, 2 or 3-axis DRO, Chuck guard, Tool-post guard, Rear splash guard, Roller support, Grinding attachment.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Factory Display：
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Universal Metal Lathe CNC or Not Loading 16-tons Heavy Duty Horizontal Lathe
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
