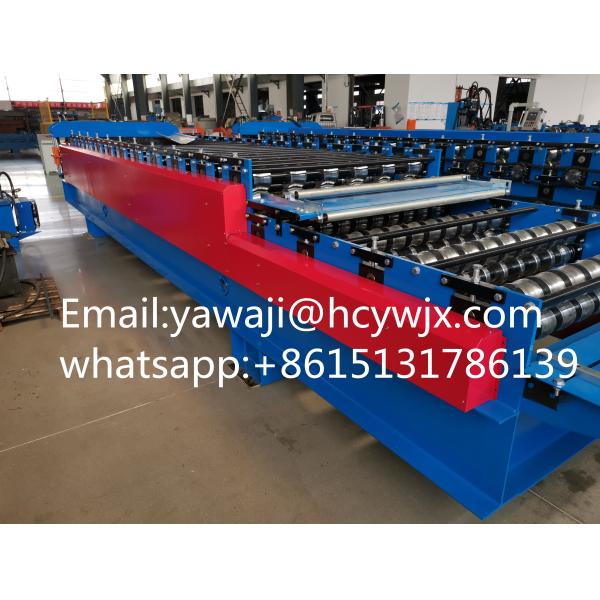

Plate Rolling Double Deck Roll Forming Machine
Plate Rolling Double Deck Roll Forming Machine
Specifications
Brand Name :
HC
Model Number :
HC25-18-1220
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
20set per month
Delivery Time :
20-30 work days
Packaging Details :
Main machine is nude，The workbench is packed with plastic stretch film
Material Type :
PPGI/GI
Material Thickness :
0.3-0.6mm
Material Width :
1220mm
Roller Stations :
11/12 Stations
Roller & Shaft Material :
45# Steel Quenching and Plating
Diameter of Shaft :
Φ70mm
Cutter Material :
CR12
Drive Type :
Chain Drive
Speed :
15m/min
Total Power :
5.5+5.5KW
Voltage :
380v 50Hz 3phases
Description

Product Description
The double-layer tile pressing machine can produce two different specifications of tiles at the same time with its efficient production capacity, greatly shortening the production cycle and meeting the needs of rapid construction of industrial plants. Moreover, the tiles it produces are of reliable quality, with high dimensional accuracy after precise molding process, which can provide stable and durable roof covering for industrial plants and adapt to various climate and mechanical stresses that may be faced in industrial environments.

Main Technical Parameters

MaterialTypePPGI/GI
Thickness0.3-0.6mm
Width1220mm
Roller Stations11/12Stations
Roller & Shaft Material45# Steel Quenching and Plating
Diameter of ShaftΦ70mm
Cutter MaterialCR12
Drive TypeChain Drive
Speed15m/min
Total Power5.5+5.5KW
Voltage380V 50Hz 3Phases

Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

Component & Technical Parameters

Plate Rolling Double Deck Roll Forming Machine


This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm

Uncoilers play an indispensable role in the production process of tile presses. In the production process of tile presses, metal sheets are usually supplied in the form of coils, and the primary function of the uncoiler is to smoothly and steadily unwind these tightly wound metal sheets.

Hydraulic Pump Station
Plate Rolling Double Deck Roll Forming Machine
When the equipment encounters abnormal resistance or excessive pressure, it can automatically adjust the pressure of the hydraulic system to avoid damage to the equipment due to overload, thereby improving the reliability and stability of the floor deck forming machine.

Touch Screen Control Cabinet

Plate Rolling Double Deck Roll Forming Machine

The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.

Feeding Table & Pre-Cutter
Plate Rolling Double Deck Roll Forming Machine
The positioning accuracy of the feeding table is extremely high, which can ensure the accurate position of the plate when it enters the forming area, thus ensuring that the final formed floor deck meets strict standards in size and shape.

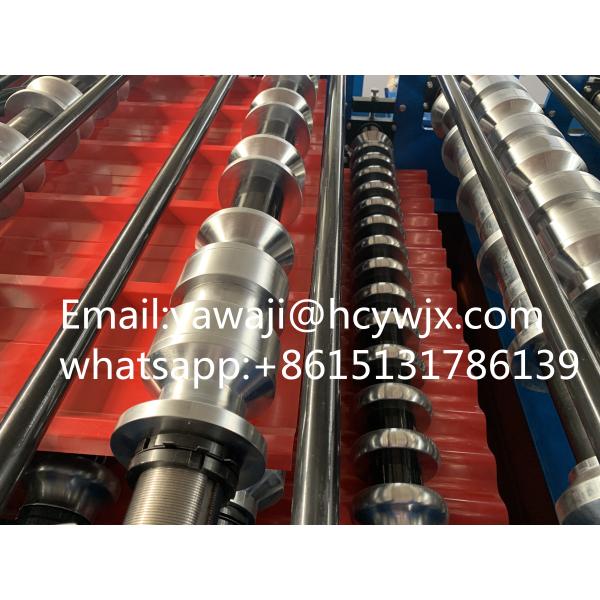

Shaft & Roller
Plate Rolling Double Deck Roll Forming Machine
Inside the molding machine, multiple shafts work together to support the rollers and other components, ensuring that they maintain a stable position and posture during operation.

Pressing Section & Cutter
Plate Rolling Double Deck Roll Forming Machine
The cutter can cut the edge of the glazed tile blank neatly and smoothly with its sharp blade and stable cutting action, avoiding problems such as burrs, rough edges or jagged edges, and improving the appearance quality and overall texture of the glazed tile.

It can realize continuous and uninterrupted production, and complete the processes from plate loading, profiling to cutting in one go, reducing the pause and waiting time in the production process, and effectively improving the utilization rate of equipment and production efficiency.
