Specifications
Brand Name :
HC
Model Number :
HC23-18-1000
Certification :
ISO/CE
Place of Origin :
Botou Hebei China
MOQ :
1set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets/month
Delivery Time :
25-30days
Packaging Details :
Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.
Material Type :
PPGI/GI
Material Thickness :
0.3-0.6mm
Material Width :
1000mm
Roller Stations :
Upper:11stations ; Down:12stations
Roller & Shaft Material :
45# Steel Quenching and Plating
Diameter of Shaft :
φ70mm
Cutter Material :
Cr12
Drive Type :
Chain Drive
Speed :
15m/min
Total Power :
5.5+5.5kw
Voltage :
380V 50Hz 3phases(Customizable)
Description
Most Popular Metal Roofing Double Layer Sheet Metal Roll Forming Machines For Industrial

Today the Chinese manufactured panel roll formers are making most world's steel fabricators dreams come true, it is no longer a non-affordable business by using many panel roll formers in workshop to produce in large quantity and a variety of different profiles.

However, the quality of Chinese panel roll formers are always on the a huge debate, and hundreds of different online offers make a decision even more difficult, as you may need to visit lots of different factories to find out the real quality they are making.

Now you don't have to be worried that we offer you a balanced solution with decent quality make you business to another level, meanwhile a customized configuration make the price more transparent and affordable.

Product Capabilities

What we can offer is a versatility and meanwhile quality assurance for any panel machines from economic basic production speed to fast panel lines up to 50m/min:

  • We offer a range different panel roll formers for wall, roof, steel decks, step tiles & standing seam profiles
Technical Overview

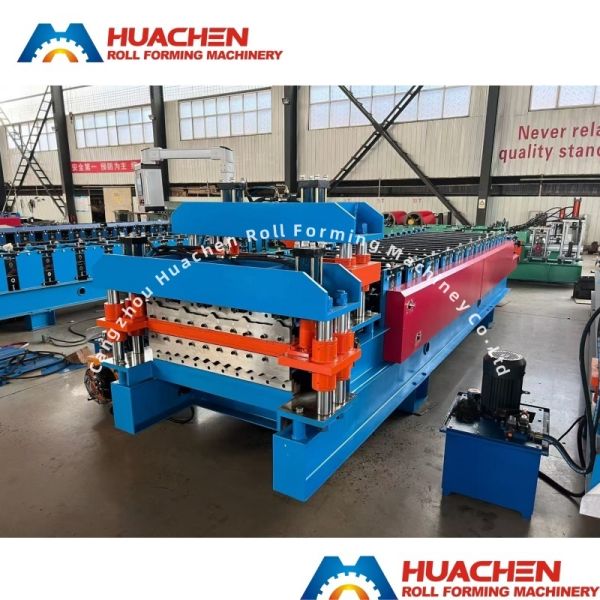

This tile forming machine is the special roll forming machine for steel sheet cold-form industries. It can continuous form the steel sheet according to customer's requirement, automatically cut to length. This equipment has many advantages, like high forming speed, low noise, stable transmission, easy operation, good look and so on.

Main Technical Parameters
Parameter Specification
Material Type PPGI/GI
Thickness 0.3-0.6mm
Width Upper:1200mm; Down:1220mm
Roller Stations Upper: 12 Stations; Down: 15 Stations
Roller & Shaft Material 45# Steel Quenching and Plating
Diameter of Shaft Φ70mm
Cutter Material CR12
Drive Type Chain Drive
Speed 15m/min
Total Power 5.5+5.5KW
Voltage 380V 50Hz 3Phases (can be customized)
Component Specifications
Component Description & Specifications
5T Manual Decoiler Double Layer Roll Forming Machine for Metal Roofing with 15m/min Speed 0.3-0.6mm Thickness and Chain Drive This part is used to support coil and make the coil in a rotary way.
  • Bearing capacity: 5T
  • Inner diameter: 470-530mm (adjustable according to demand)
  • Equipped with brake device to prevent machine damage from impact

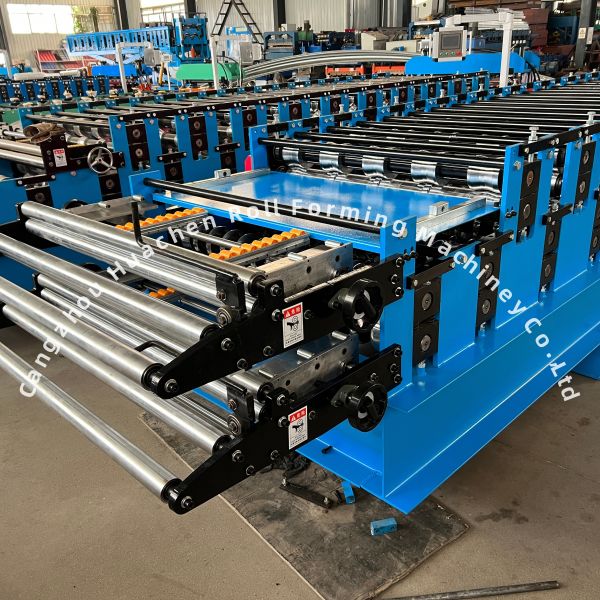

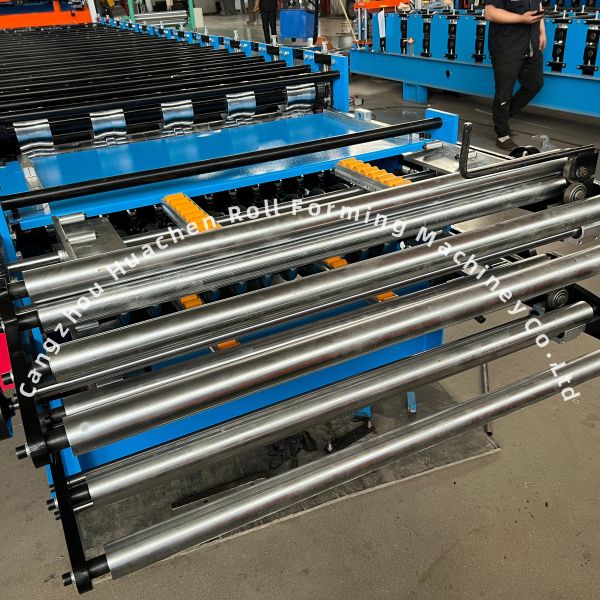

Feeding Table & Pre-Cutter Double Layer Roll Forming Machine for Metal Roofing with 15m/min Speed 0.3-0.6mm Thickness and Chain Drive Guides the coil into correct position and directs it to the roll forming part. Includes a hand pull cutting device for convenient pre-cutting when changing color or thickness.

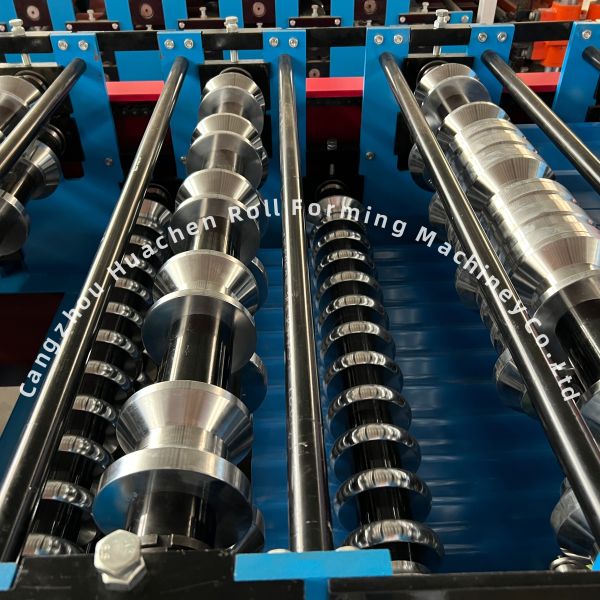

Shaft & Roller Double Layer Roll Forming Machine for Metal Roofing with 15m/min Speed 0.3-0.6mm Thickness and Chain Drive Material is 45# Steel Quenching and Plating. The processed rollers are smooth, hard and will not rust. Will not leave any scratches on the sheet when working.
Hydraulic Pump Station Double Layer Roll Forming Machine for Metal Roofing with 15m/min Speed 0.3-0.6mm Thickness and Chain Drive Drives the cutter to start cutting works. The hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to ensure the oil pump station will not be affected by high oil temperature during working.

Solenoid valve brand: Huade
Touch Screen Control Cabinet Double Layer Roll Forming Machine for Metal Roofing with 15m/min Speed 0.3-0.6mm Thickness and Chain Drive The control cabinet has two modes: automatic and manual. The unit length of the targeted sheet and quantity can be set in the touchscreen. The system is simple and easy to operate.

Electrical Component Brands:

  • VFD: Delta
  • Circuit breaker: Delixi
  • Contactor: Delixi
  • Relay: Xinling
  • PLC: Delta
  • Transformer: Delixi

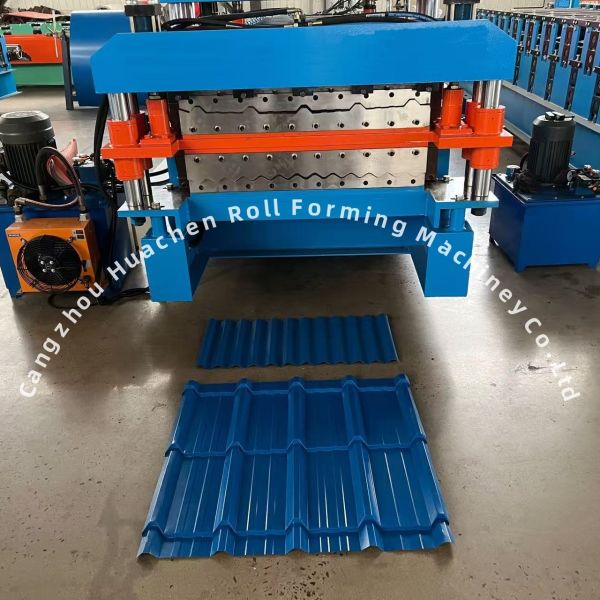

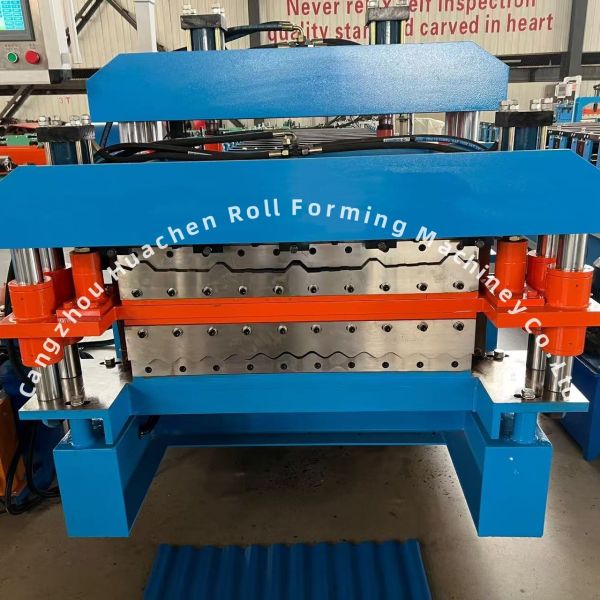

Pressing Section & Cutter Double Layer Roll Forming Machine for Metal Roofing with 15m/min Speed 0.3-0.6mm Thickness and Chain Drive The material of blade is CR12. With high strength, better hardenability and good wear resistance.
Output Table This part is used to collect the formed products. The bracket is equipped with rollers to facilitate product forwarding without being scratched.
Spare Parts Included
Part Quantity
Chains 2 Sets
Solenoid Valve 1 Set
Travel Switch 2 Sets
Open-End Wrenches 2 Sets
Hexagon Wrench 2 Sets
Counter 1 Set
Wrench 2 Sets
Oil Seals 1 Set
Working Process

Decoil -> Guiding system -> Roll forming -> Punch to length -> Cut to length -> Output the finished products

Frequently Asked Questions
Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
Once we've bought a machine from you, are you able to supply us with material?
We can assist you in finding the appropriate materials to suit your machine.
Do you sell only standard machines?
No, most of our machines are built according to customers specifications, using top brand name components.
What size decoiler can you supply us with?
From 5-ton decoiler to a 25-ton motorised hydraulic decoiler.
Do you have a warranty on your machines?
One year warranty excluding electrical components.
What sales terms do you have?
Terms mutually agreed on and we do accept Letter of Credit by pre arrangement.
Do you have instruction manuals?
We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings.
Once a machine arrives at our factory what happens then?
We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
What do I need to offload my machine from the container?
You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
My current machine rollers need to be replaced. Would you be able to assist me?
Yes. Send us your profile and specifications then we will manufacture the rollers for you.
What kind of controls do you use on your machines?
AMS, Delta, Schneider, Siemens, and Mitsubishi.
What is your delivery time?
Depending on the type of machine, duration of 25 days to 185 days from date of order.
Do we receive any updates while machine is in the manufacturing process?
Yes. Regular updates on progress will be sent to you.
