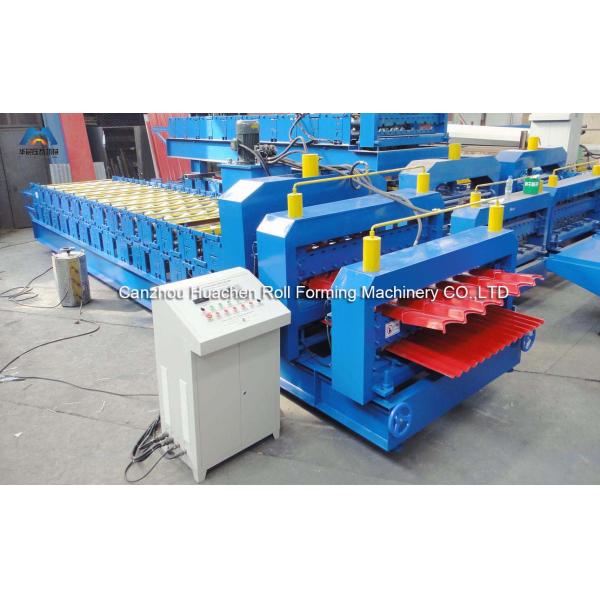

Electrical 1250MM Width Double Deck Roll Forming Machine
Electrical 1250MM Width Double Deck Roll Forming Machine
Electrical 1250MM Width Double Deck Roll Forming Machine
Electrical 1250MM Width Double Deck Roll Forming Machine
Electrical 1250MM Width Double Deck Roll Forming Machine
Electrical 1250MM Width Double Deck Roll Forming Machine
Specifications
Brand Name :
HC
Model Number :
HC 31 - 18
Certification :
ISO
Place of Origin :
Botou Hebei China
MOQ :
1set
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
Main machine is nude,the computer control box is packed by carton box
type :
Honduras style
width :
1250MM
rollers :
15 and 12 rollers
machine's color :
bule and yellow
Thickness :
0.3 - 0.6 mm
speed :
1-3 m/min 10-20 m/min
Description

Electrical 4 + 4 kW Double Layer Roll Forming Machine Wholesale

Machine details

No

1

 Suitable Material q235

2

 The width of the raw material 750/1200mm
3 Rows of rollers

Upper level: 11Rows

Down-level: 12 Rows
4 Appearance size 7200*1550*1910mm
5

Total power

 4 + 4 KW
6 The thickness of the raw material 0.3-0.6mm
7 Productivity

Upper level: 1-3 m/min

Down-level:15-20m/min
8 Diameter of shaft ￠70mm

9

 Voltage 380V 50Hz 3phases

Electrical 1250MM Width Double Deck Roll Forming Machine

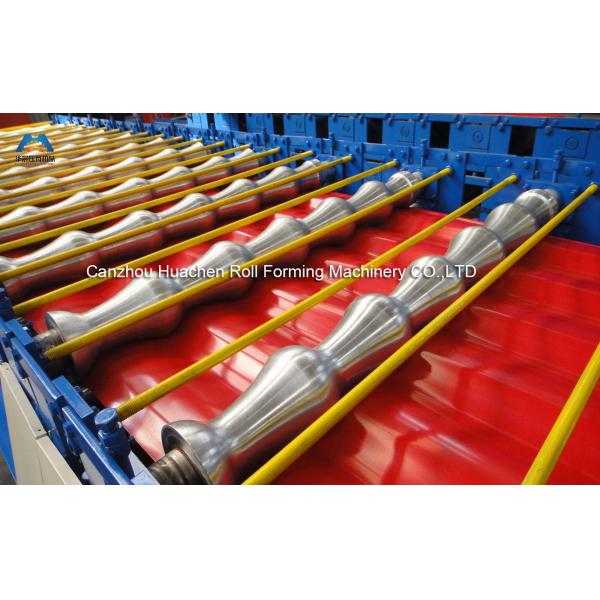

Machine Roller

  1. This machine is made up of roll forming machine, molding press, cutting machine, PLC computer control and hydraulic system
  2. This machine is applied to roof fortification
  3. The machine is stable, no noise and no shake.
  4. the cutting machine is characterized by stable driving, easy operation
  5. Controlling by computer, PLC display, the operation is easy and running is steady and reliable, endurable, maintenance-free
  6. Hydraulic system use the CDF-10 hydraulic pump, long operating life, no noise

Electrical 1250MM Width Double Deck Roll Forming Machine

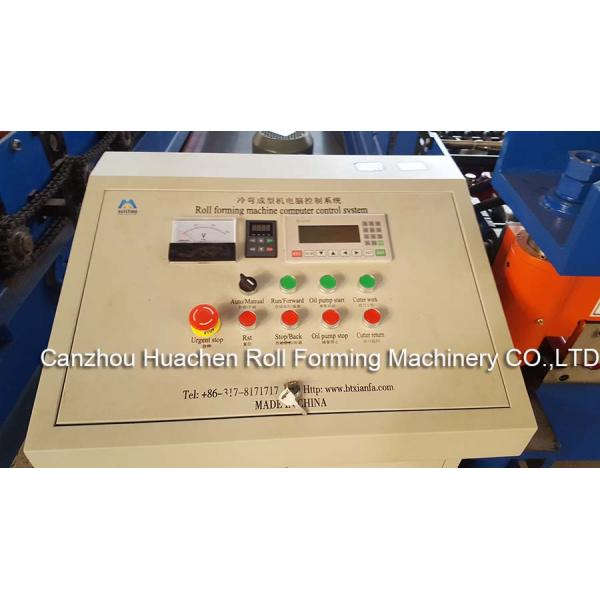

Control

1. Manually put colored steel coil into the feeding table.

2, manually press the forward button on the top of the control box, this is the start of the operation of the equipment, until the plate out of the cutting knife part, stop pressing the forward button, press the cutting knife down, cut out the exposed part.

3. Set the number of meters and sheets to be processed on the display screen, adjust the control to the automatic upper part, press the start button, and the device will automatically press the plate

4. After each plate is cut off, manually remove the plate from the cutting edge

Electrical 1250MM Width Double Deck Roll Forming Machine

Product tags

double deck roll forming machine

,

metal deck roll forming machine

,

panel roll forming machine
