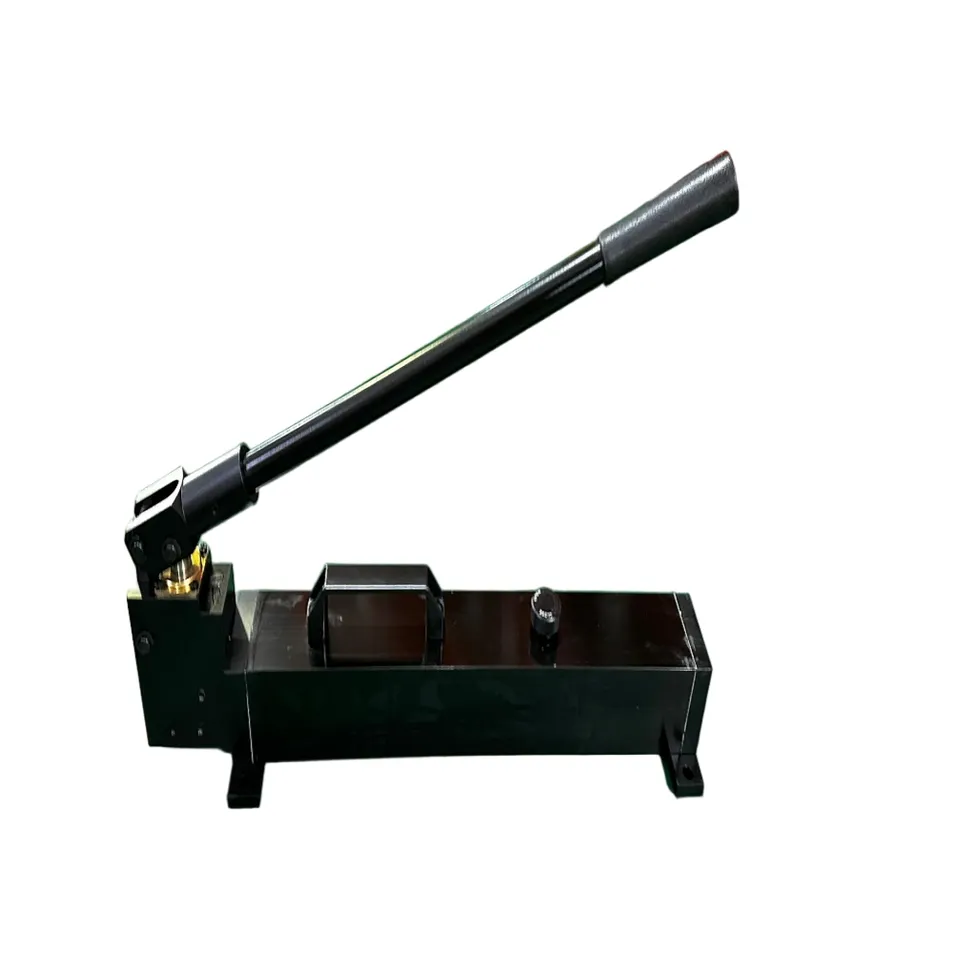

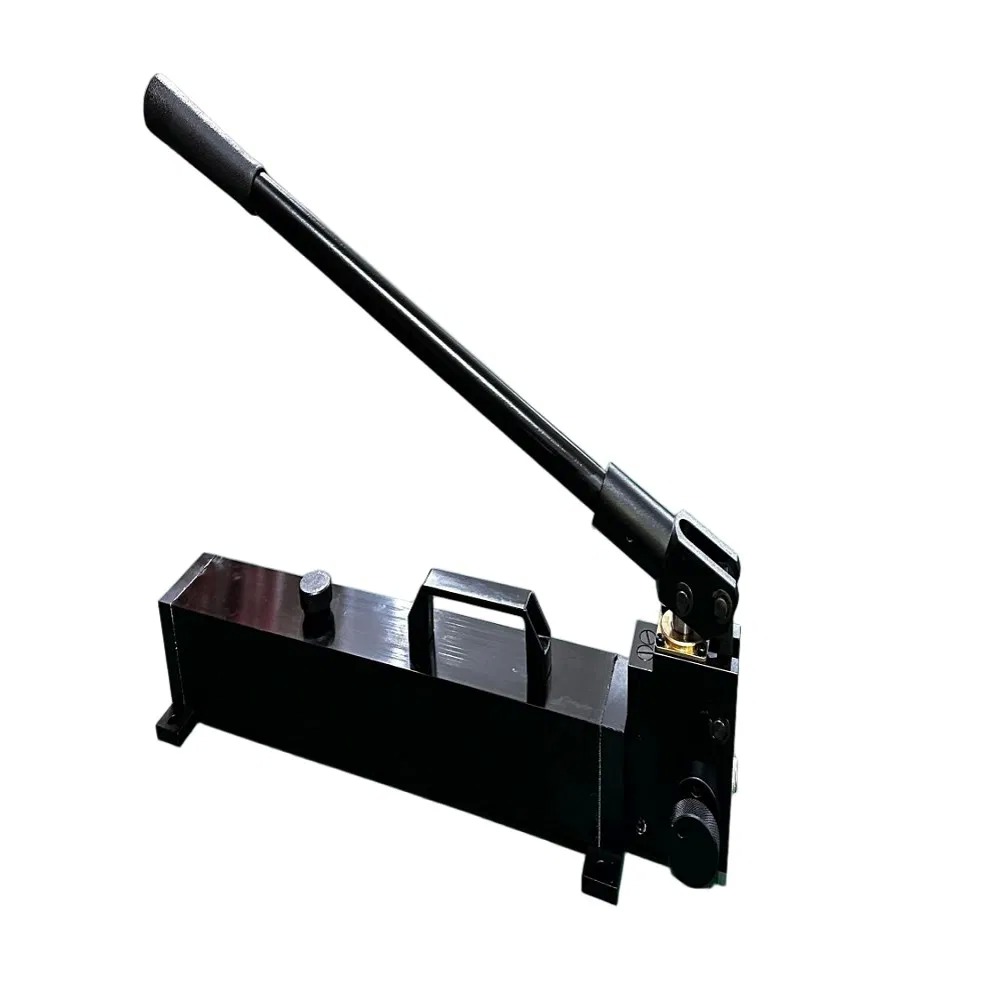

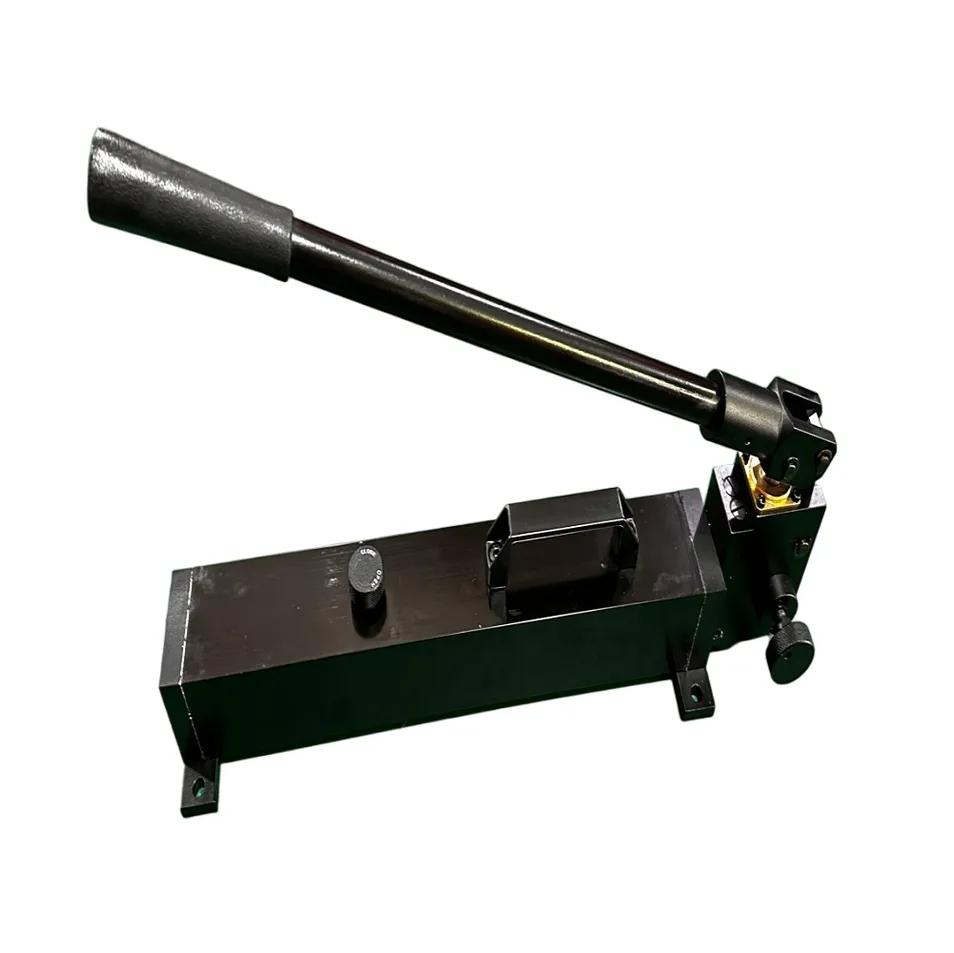

Flange Bolting Hydraulic Hand Pump 2000bar Hand Hydro Pump
Flange Bolting Hydraulic Hand Pump 2000bar Hand Hydro Pump
Specifications
Transport Package :
Carton
Production Capacity :
50000PCS/Year
Specification :
222*222*222
HS Code :
841320000
Payment Terms :
T/T
Type :
Hydraulic Pump
Packaging Details :
Standard packaging is determined by your requirements and the actual dimensions of the quantity
Pump Type :
Two Speed
Trademark :
SCHMIDT
Warranty :
12month
MOQ :
1
Origin :
Wuhan China
Supply Ability :
Standard supply quantity 1–50 units, standard delivery lead time 15-30 working days
MOQ :
1PC
Delivery Time :
8-10 work days
Maximum Operating Pressure (Bar) :
3000bar
Place of Origin :
CHINA
Usage :
Petroleum, Construction, Metallurgy
Description
Schmidt 2000bar Flange Bolting Hydraulic Torque Wrench Pump for Wind Industry
Product Description

Schmidt lightweight hydraulic hand pumps are a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. Each model is rated up to 3000bar.

Specification
Flange Bolting Hydraulic Hand Pump 2000bar Hand Hydro Pump
Model Number
Usable Oil Capacity
(cm³)
Pressure Rating

(bar)
OH Displacement per Stroke
(cm³)
Dimensions(mm)
Weight
(kg)
1st stage
2nd stage
1st stage
2nd stage
A
B
C
7P-392
1440-3240
25
700
32
2.5
590
120
170
7.5-12
10P-392
1440
15
1000
32
2.5
590
140
180
7.5
15P-392
1440
15
1500
32
2.5
636
120
170
7.5
20P-392
1440
15
2000
32
2.5
636
120
170
7.5
30P-392
1440
20
3000
32
2.5
636
140
190
7.5
Features
  • Made of aerospace materials (aluminum-titanium alloy), it is lightweight, high-strength, corrosion-resistant, impact-resistant, and adaptable to various harsh environments.
  • Dual-speed operation, equipped with a built-in precision high and low pressure switching valve, increases the flow rate at low pressure, saves operation time and improves work efficiency.
  • The product's surface has undergone anodic oxidation treatment, which is aesthetically pleasing and has stronger corrosion resistance.
  • The pressure gauge and the gauge base are designed as an integrated unit to reduce leakage.
  • The working pressure can be as high as 3000Bar, and the two-stage design increases the flow rate.
  • The built-in pressure switching valve saves time and effort in use.
  • It is suitable for pressure tests of tensioners, hydraulic nuts, and various component valves and containers.
Flange Bolting Hydraulic Hand Pump 2000bar Hand Hydro Pump
Flange Bolting Hydraulic Hand Pump 2000bar Hand Hydro Pump
Company Profile
Flange Bolting Hydraulic Hand Pump 2000bar Hand Hydro Pump
Hubei Schmidt Machinery Manufacturing Co., Ltd.

Hubei Schmidt Machinery Manufacturing established in 2011. We've grown into a leading force in hydraulic tool innovation and manufacturing. Driven by continuous advancement, we specialize in precision-engineered hydraulic torque wrenches, jacks, pumps, and related tools, with many achieving world-class accuracy standards.

Our growth is fueled by a dedicated team of engineers offering expert OEM/ODM design and maintenance, plus significant annual R&D investment. This commitment to development has powered our participation in over 50+ landmark projects, including the monumental West-East Gas Pipeline (Lines 2 & 3) and the Hong Kong-Zhuhai-Macao Bridge.

Today, Schmidt leverages this expertise to reliably tackle large-scale bolt tightening and loosening for critical industrial applications globally, building on over a decade of focused progress.

Flange Bolting Hydraulic Hand Pump 2000bar Hand Hydro Pump
Flange Bolting Hydraulic Hand Pump 2000bar Hand Hydro Pump
Flange Bolting Hydraulic Hand Pump 2000bar Hand Hydro Pump
FAQ
1. who are we?

We are based in Hubei, China, start from 2009,sell to Southeast Asia(40.00%),Eastern Europe(40.00%),South America(10.00%),Oceania(10.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. what can you buy from us?

Hydraulic tools (Hydraulic wrench,Hydraulic jacks,Hydraulic pullers,Hydraulic pump)

4. why should you buy from us not from other suppliers?

We are a professional hydraulic tools manufacture with more than 10 years experience in the design, production, sale and service of hydraulic wrench, electric wrench, hydraulic jack, hydraulic puller,bolt tensioner.

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English
