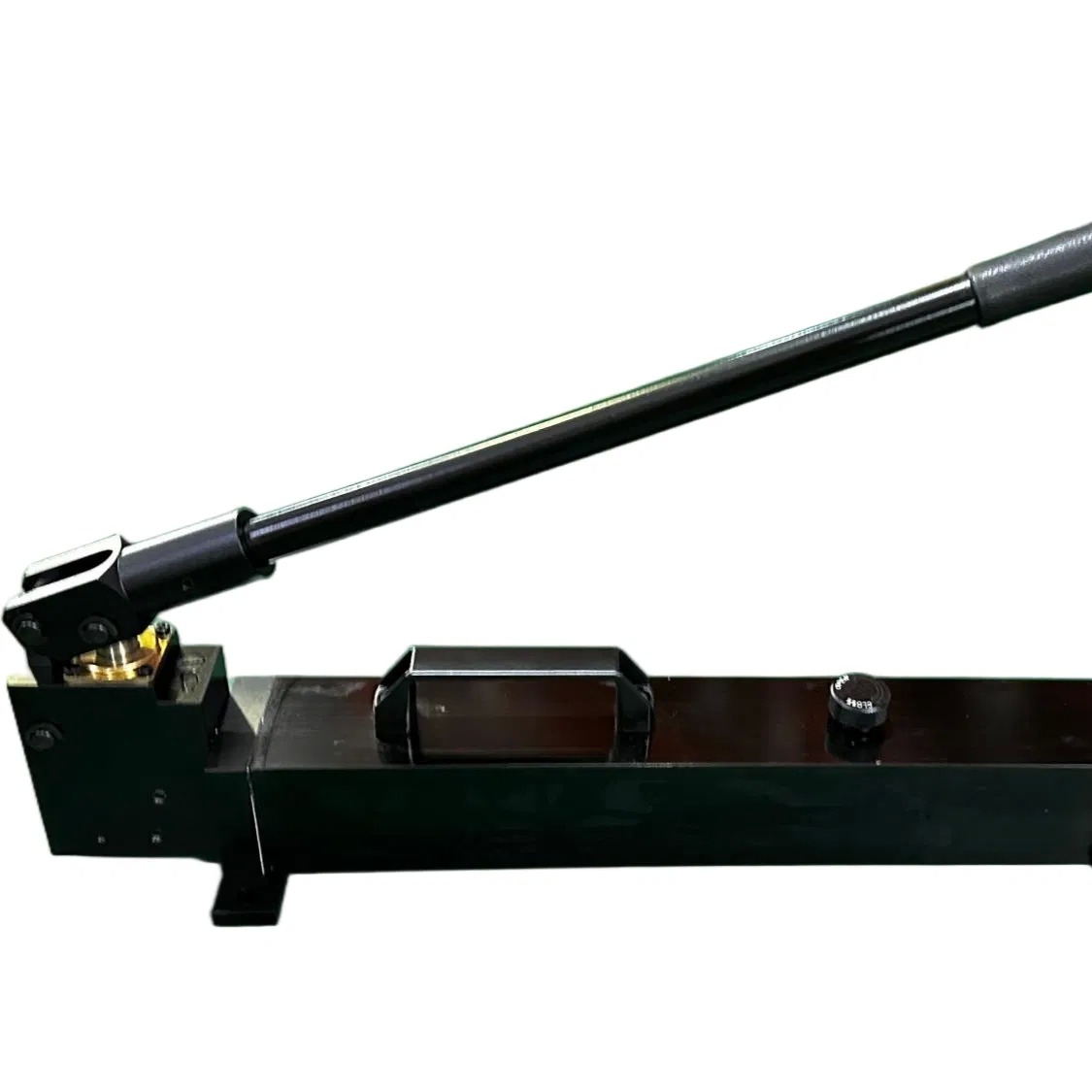

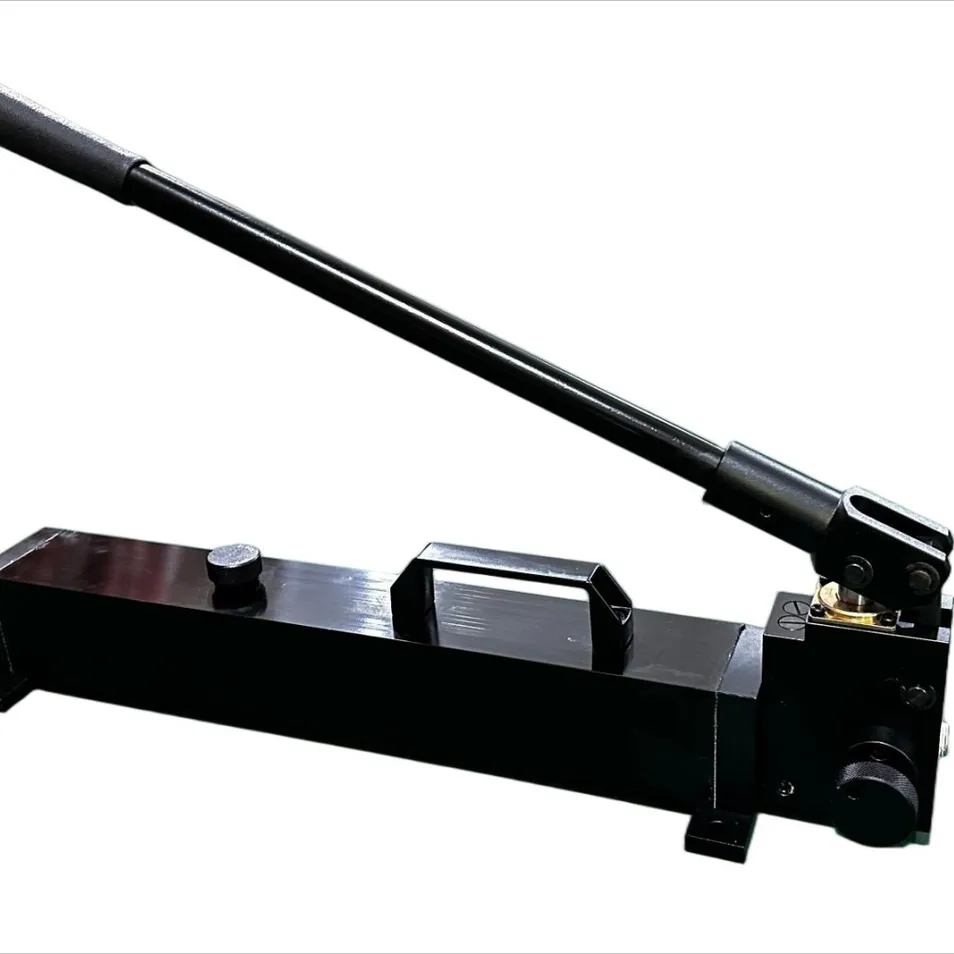

Schmidt lightweight hydraulic hand pumps are a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. Each model is rated up to 3000bar.



| Model Number | Usable Oil Capacity (cm³) |
Pressure Rating (bar) |
OH Displacement per Stroke (cm³) |
Dimensions(mm) | Weight (kg) |
||||
| 1st stage | 2nd stage | 1st stage | 2nd stage | A | B | C | |||
| 7P-392 | 1440-3240 | 25 | 700 | 32 | 2.5 | 590 | 120 | 170 | 7.5-12 |
| 10P-392 | 1440 | 15 | 1000 | 32 | 2.5 | 590 | 140 | 180 | 7.5 |
| 15P-392 | 1440 | 15 | 1500 | 32 | 2.5 | 636 | 120 | 170 | 7.5 |
| 20P-392 | 1440 | 15 | 2000 | 32 | 2.5 | 636 | 120 | 170 | 7.5 |
| 30P-392 | 1440 | 20 | 3000 | 32 | 2.5 | 636 | 140 | 190 | 7.5 |

Hubei Schmidt Machinery Manufacturing established in 2011. We've grown into a leading force in hydraulic tool innovation and manufacturing. Driven by continuous advancement, we specialize in precision-engineered hydraulic torque wrenches, jacks, pumps, and related tools, with many achieving world-class accuracy standards.
Our growth is fueled by a dedicated team of engineers offering expert OEM/ODM design and maintenance, plus significant annual R&D investment. This commitment to development has powered our participation in over 50+ landmark projects, including the monumental West-East Gas Pipeline (Lines 2 & 3) and the Hong Kong-Zhuhai-Macao Bridge.
Today, Schmidt leverages this expertise to reliably tackle large-scale bolt tightening and loosening for critical industrial applications globally, building on over a decade of focused progress.
