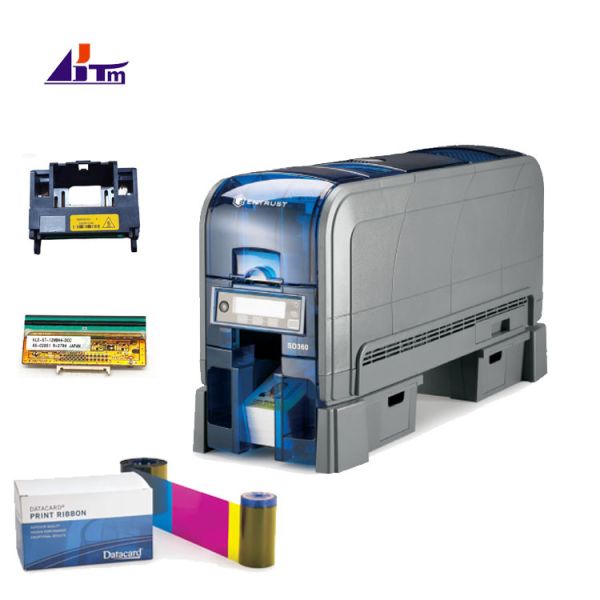

Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts
Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts
Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts
Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts
Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts
Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts
Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts
Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts
Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts
Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts
Specifications
Brand Name :
Datacard
Model Number :
SD360
Certification :
ISO9001
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 Pieces Per Year
Delivery Time :
It depends on the quantity of your order
Packaging Details :
Carton / Pallet
Brand :
Datacard
Model :
SD360
Type :
Datacard SD360 Card Printer Accessories
Warranty :
90 Days
Printing Material :
PVC, Composite PVC, PET, Etc
Description
Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts

High quality, high valueThe SD360 card printer deliversoutstanding print quality, reliability,easy operation, and efficiency in a smallfootprint. SD Series printers outperform intheir categories so you can do the samein yours. Whether you need a more secureworkplace or a convenient solution forcustomer, student, or staff identification,SD series card printers are the affordableway to print cards for many types ofapplications, including:
Corporate IDs
Healthcare IDs
Student, visitor, or staff IDs
Retail, hospitality, and
loyalty cards
Local government IDs
Visitor IDs


Supplies

Description Part Number
Cleaning Swab – 5 Pack 507377-001
Cleaning Card - 10 Pack 552141-002
Cleaning Sleeve Kit - 5 Pack 569946-001
Cleaning Sleeve Kit - 10 Pack 570113-001
Cleaning Spindle 572880-001
Ribbon Cartridge Assembly 509204-999
Thermal Printhead Assembly 546504-999
Color Ribbon Kit - YMCKT (250 Yield) 534000-002
Color Ribbon Kit - YMCKT (500 Yield) 534000-003
Color Ribbon Kit - YMCKT (250 Yield Short Panel) 534000-004
Color Ribbon Kit - kt (1000 Yield) 534000-005
Color Ribbon Kit – YMCKT-KT (300 Yield) 534000-006*
Color Ribbon Kit – YMCKT-K (375 Yield) 534000-007*
Color Ribbon Kit – KTT (750 Yield) 534000-010*
Monochrome Ribbon Kit - Dark Blue (1500 yield) 532000-003
Monochrome Ribbon Kit - White (1500 yield) 532000-004
Monochrome Ribbon Kit - Red (1500 yield) 532000-005
Monochrome Ribbon Kit - Silver (1500 yield) 532000-006
Monochrome Ribbon Kit - Green (1500 yield) 532000-007
Monochrome Ribbon Kit - Gold (1500 yield) 532000-008
Monochrome Ribbon Kit -Scratch Off (1500 Yield) 532000-009
Monochrome Ribbon Kit - Black HQ (500 yield) 532000-052
Monochrome Ribbon Kit - Black HQ (1500 yield) 532000-053
Monochrome Ribbon Kit - Metallic Silver (1500 yield) 532000-054
Monochrome Ribbon Kit - Metallic Gold (1500 yield) 532000-055
Stickicards (100 cards per box) 597640-001

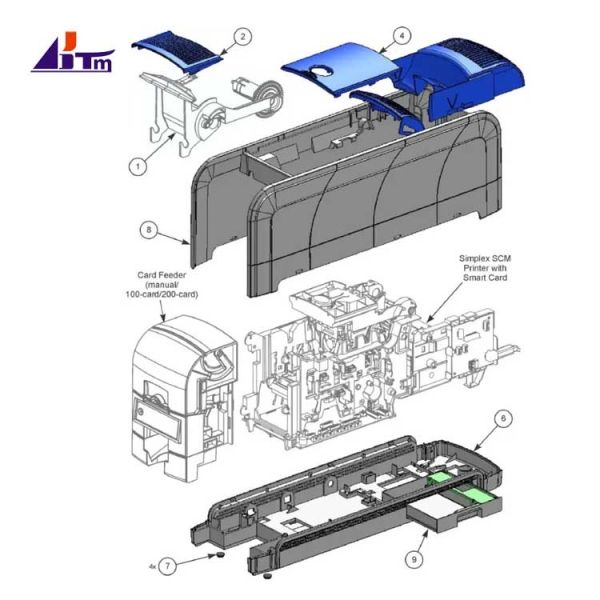

Model SD360

Part Number Description Quantity
509204-999 Ribbon Cartridge Assembly 1
504789-001 Ribbon Cartridge Lid 1
508812-001 Swingarm Lid 1
534090-001 Extended Base 1
803349-201 Enclosure Base Foot (Adhesive) 4
504804-001 Extended Enclosure 1
537009-001 Tray Base 1



100-Card Input Tray

Part Number Description Quantity
504802-001 100 Card Input Assembly (Includes Cover and Lid) 1
504784-001 25 Card Output Cover 1
543057-001 Interface Panel with LCD 1
504785-029 Front Bezel (Blank) 1
N/A See Input Hopper Frame on page 13. 1



200-Card Input Tray

Part Number Description Quantity
504805-001 200 Card Input Cover (Includes Cover and Lid) 1
504784-001 25 Card Output Cover 1
543057-001 Interface Panel with LCD 1
504785-029 Front Bezel (Blank) 1
N/A See Input Hopper Frame on page 13. 1



Input Hopper Frame

Part Number Description Quantity
543759-001 Pick Block Assembly 1
543871-001 Pick Roller Assembly 1
553949-001 Gate Spring 1
504660-001 Input Hopper Frame 1
572868-001 Pick Gate Assembly 1
572871-999 Picker (Includes Crankshaft, Clutch and Drive Pick Gear) 1
535859-001 Pick Ribbon Motor 1
589060-001 Ribbon Drive Gear 1
810421-008 Screw Torx PH M2X8 2
538904-001 Right Angle Photocell Assembly (SD360 only) 1



Swingarm

Part Number Description Quantity
504229-001 Swingarm Assembly 1
535859-001 Pick/Ribbon Motor 1
589060-001 Ribbon Drive Gear 1
810421-008 Screw Sems Torx PH M2X8 2

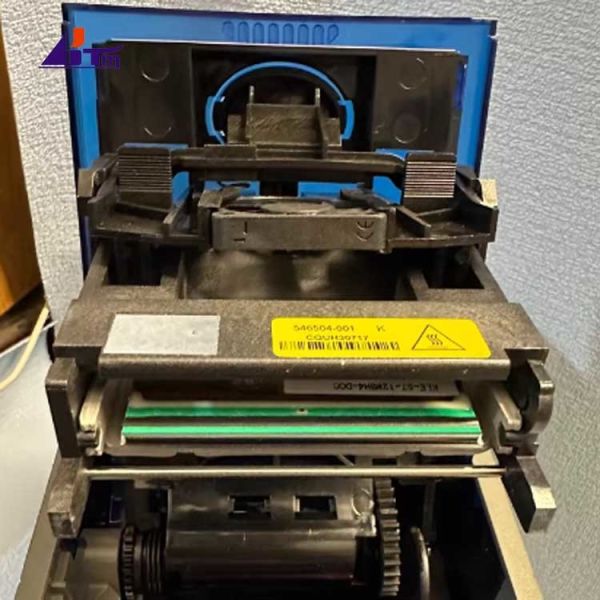

546504-999 Thermal Printhead Assembly 1
538862-001 Fan, 35x35x6 1



Drive Train, Right Side

Part Number Description Quantity
810450-001 Damper, Size 2 1
572888-001 Spring, Torsion, Swingarm 1
572770-001 Backup Roller 1
572762-001 Gear Cam 1
572763-001 Cam Idler Gear 1
572773-001 Cam Slide 1
572760-001 Cam Shaft 1
572771-001 Registration Backup Roller 1
572764-001 Backup Roller Bracket 3
505560-001 Backup Spring 3
572768-001 Top Cleaning Roller 1
551471-001 Card Guide Spring 1
505542-001 Card Guide 1
558323-005 Capstan, Roller Sleeve (Non Magnetic Stripe Only) 1



Drive Train, Left Side

Part Number Description Quantity
572773-001 Cam Slide 1
568093-001 Belt Tensioner Spring 1
572765-001 Cleaning Drive Roller 1
505560-001 Backup Spring 3
572764-001 Backup Roller Bracket 3
544482-001 Flanged Drive Pulley 35T 2
572772-001 Belt Tensioner 1
554202-001 Timing Belt 6MM W 334T P 2MM STD 1
574459-001 Belt Plate 1
572766-001 Registration Drive Assembly 1
544584-001 Idler Pulley 5
572767-001 Drive Roller 1
572761-001 Cam 1
572758-001 Platen Roller Assembly 1
542820-001 Platen Roller Plate 1



Miscellaneous Components

Part Number Description Quantity
552143-002 Adhesive Static Brush 2
566406-001 RFID Antenna Board 1
566752-001 Head Latch Sensor, Ribbon Reflective 1
566751-001 Card Input, Card Exit, and Cam Home Sensors, Wide Slot 3
569419-001 Gate Roller 1
809428-206 Screw Sems Torx PH M3X8 4
504226-001 Wire Retaining Clip 5
572789-001 Cam Drive Assembly 1
809561-005 Ferrite Bead 1
506335-994 Print Engine PWB Assembly (SD260L Standard D3) 1
506339-994 Print Engine PWB Assembly (SD360 Standard D3)
506339-995 Print Engine PWB Assembly (SD360 Open Card D3)
507428-998 Print Engine PWB Assembly (SD460 Standard D3)
572786-001 Transport Motor Assembly 1
504228-999 Transport Assembly 1
572899-001 Magnetic Encoder Board (Ribbon Motion) 1
Cables
Part Number Description Connection Quantity
574154-001 TPH Cable Assembly Printhead to Print Engine PWB 1
535644-001 Sensor Encoder Cable Assembly RFID Board to Print Engine PWB 1
535644-001 Sensor Encoder Cable Assembly Magnetic Encoder to Print Engine PWB 1
809519-001 6FT USB Cable Assembly (with Ferrite) Printer USB to PC USB. 1
809561-005 Ferrite Bead Ferrite bead installs around Printhead Fan and Ribbon Motor cables.
Power Supply and Cord
Part Number Description Quantity
804517-003 US/NA Power Cord. 10A, 18GA 3CND, 125VAC 1
809440-001 International Power Cord – Europe, 10A 1
809440-003 International Power Cord – U.K., 10A 1
809440-004 International Power Cord – Denmark, 10A 1
809440-005 International Power Cord – India, 10A 1
809440-007 International Power Cord – Italy, 10A 1
809440-008 International Power Cord – Switzerland, 10A 1
809440-009 International Power Cord – China, 10A 1
809440-010 International Power Cord – Australia, 10A 1
809440-011 International Power Cord – Israel, 10A 1
809440-012 International Power Cord – Brazil, 10A 1
809445-001 International Power Cord – Japan, 7A, 125V 1
810499-001 Power Supply 1


Non-Magnetic Stripe

Part Number Description Quantity
572774-001 Ribbon Bridge 1
552143-002 Adhesive Static Brush 1
572764-001 Backup Roller Bracket 1
543346-001 Backup Spring 1
558323-005 Capstan Roller Sleeve 1
572771-001 Registration Backup Roller 1
566753-001 Ribbon Index Sensor, Ribbon Reflective Photocell 1

Magnetic Stripe Option, ISO (IAT), JIS (NTT)

Part Number Description Quantity
543346-001 Backup Spring 1
538849-001 Encoder Mounting Bracket 1
806850-410 Torx Screw 1
811312-001 Optical Encoder 1
809429-108 Phillips Screw 2
538819-001 Magstripe Encoder Cable Assembly 1
807519-104 Standoff 2
569585-001 Magnetic Stripe Board 1
543829-001 Read/Write MS Head 3-Track Gimbal ISO 1
543830-001 Read/Write MS 1-Track Gimbal JIS
538891-001 Magstripe Rocker Assembly 1
SD360 Duplex Frame
Part Number Description Quantity
588345-001 Smart Card Base Lid 1
541756-001 Cable Assembly, Smart Card Option to Main Board 1
535349-001 Contact Smart Card Mount 1
588304-001 Smart Card Card Guide 1
574318-001 Option Interface PWA Assembly 1
566751-001 Wide Slot Photocell (Smart Card Registration) 1
552143-002 Adhesive Static Brush 1
588296-001 Smart Card Base, Duplex 1
569419-001 Gate Roller 1
503396-001 Smart Card Station Spring 1


Smart Card Reader Options


Item Part Number Description Quantity
Identive Dual Contact/Contactless Smart Card Only


Item Part Number Description Quantity
3 566348-001 Smart Card Contact Block Board 1
-- 503185-001 Cable Assembly, Dual Smart Card 1
14 80759-011 Standoff 2
15 509443-999 Dual Smart Card Reader 1




iCLASS or pcProx Card Reader/Writer Only


Item Part Number Description Quantity
16 810040-001 iCLASS Read/Write, USB 1
810040-002 iCLASS Read Only, USB 1
810280-001 pcProx Read Only, USB 1
811158-001 pcProx Plus Read Only, USB 1




Duali Single Wire Smart Card Only


Item Part Number Description Quantity
3 566348-001 Smart Card Contact Block Board 1
-- 506265-001 Cable Assembly, Duali Smart Card 1
-- 504502-001 Cable Assembly, Duali USB 1
17 810726-001 Duali Single Wire Dual Smart Card Reader 1
18 504328-001 USB Host Board 1
19 807519-102 Spacer, Mini Push-In 2
20 810129-102 Standoff, Mini 1




Duplex Assembly


Item Part Number Description Quantity
1 554279-002 Duplex Drive Roller 2
2 538693-001 Option Frame Assembly 1
3 807407-021 Wire Routing Standoff 7
4 566751-001 Wide Slot Photocell Assembly (Duplex Home) 1
5 571703-001 Flipper Control PWA 1
6 538272-001 Back Idler Roller Spring 2
7 800257-060 Dowel Pin 2
8 538271-001 Backup Idler Roller 2
9 538617-001 Stepper Motor Assembly 2
-- 503016-001 Duplex Option Cable Assembly (to Main Board) 1




100-Card Output Tray


Item Part Number Description Quantity

See Price Pages 100 Card Output Assembly
1 504795-001 Output, 100 capacity 1
2 803349-201 Self Adhesive Bumper 4
3 545495-001 Pedestal Tray 2




Lock Option


Item Part Number Description Quantity

See Price Pages Kensington Lock Option
Product Images

Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts

Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts

Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts


Order & Support
  • Minimum order quantity (MOQ) available for both small businesses and bulk buyers
  • Fast shipping worldwide with tracking provided for every order
  • Our technical support team is ready to assist with installation guidance and troubleshooting
Contact us today to place your order or learn more about our full range of Datacard printer accessories!
Send your message to this supplier
Send Now

Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts

Ask Latest Price
Product Detail
Brand Name :
Datacard
Model Number :
SD360
Certification :
ISO9001
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T
Contact Supplier
Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts
Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts
Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts
Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts
Datacard SD360 Plastic ID Card Printer Accessories Replacement Parts

Tiger Spare Parts Co., Ltd

Verified Supplier
2 Years
guangdong, hong kong
Since 1998
Business Type :
Manufacturer, Distributor/Wholesaler, Trading Company
Main Products :
Diebold Nixdorf ATM Parts, NCR ATM Parts, Wincor ATM Parts
Total Annual :
500-1000
Employee Number :
50~100
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Card Printer
MachineU China Products Service Equipment
Contact Supplier
Submit Requirement
