Automatic Roll Forming Machine
Automatic Roll Forming Machine
Automatic Roll Forming Machine
Automatic Roll Forming Machine
Specifications
Brand Name :
Thronch
Place of Origin :
China
MOQ :
1set
Price :
100000~300000 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100 units per year
Delivery Time :
Arrange according to the order details
Packaging Details :
Container
Power Supply :
380V/50Hz
Cutting Tolerance :
±1mm
Cutting Blade Material :
Cr12 With Quenched Treatment 58-62 °
Power :
7.5kW
Material :
Cold Rolled Steel / Galvanized Steel
Shaft Material :
GCr15
Application :
Roofing Sheets, Wall Panels, Door Frames
Cutting Length :
Adjustable
Use :
Steel metal profile roll forming
Punching Speed :
300 Punches Per Minute
Description

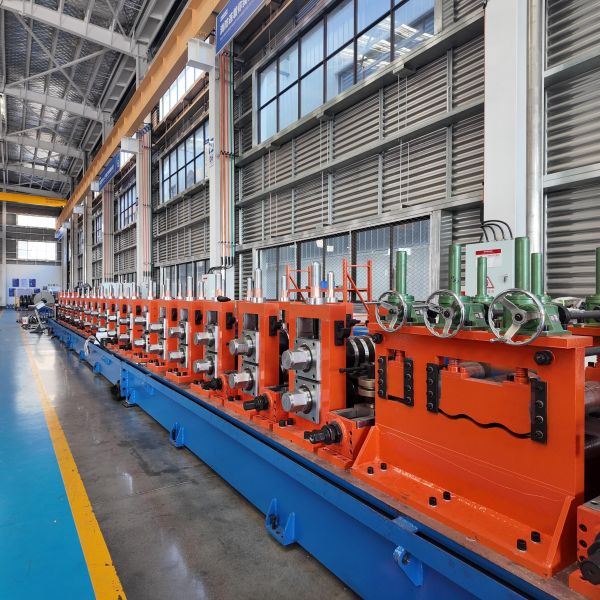

Automatic Roll Forming Machine

Our Automatic Roll Forming Machine is a high-precision, intelligent cold-forming line that continuously converts metal coils (galvanized steel, aluminum, etc.) into custom profiles such as C/Z/U purlins, roof sheets, and wall panels.

Key Features (Concise):

  • Fully automatic process: uncoiling → leveling → servo feeding → punching/cutting → roll forming → output

  • PLC touchscreen control with recipe storage for quick changeover (3–5 minutes)

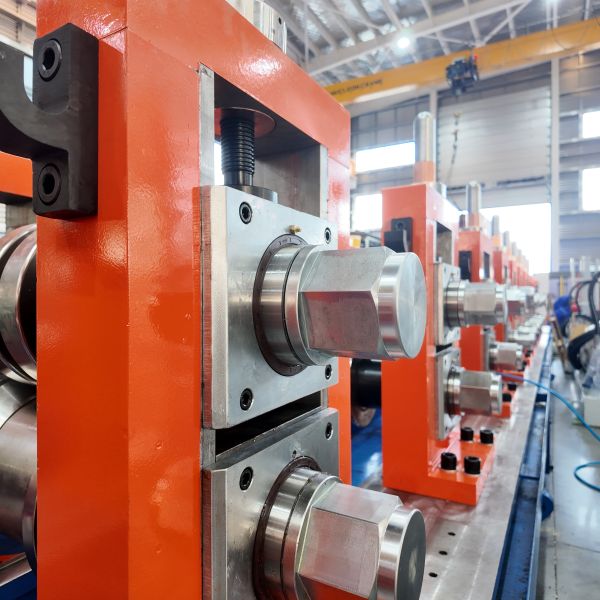

  • High accuracy: GCr15 hardened rollers, 16–24 forming stations, speed 10–25 m/min, thickness 0.8–3.0 mm

  • Flexible options: C/Z interchangeable, hydraulic punching, embossing, remote IoT monitoring

  • Applications: steel structures, solar brackets, storage racks, prefab buildings

Machines Regular Technical Parameter (Customization is available)

Model NO.

C80~300&Z120~300

Thickness

1.5-3.0mm

Decoiler

Manual/Hydraulic for Options

Shaft

75/90mm

Cutter Material

Cr12 Tool Steel

Specification

About 11.2M*2.5M*1.8M

Origin

China

Yield Strength

245-550MPa


Automatic Roll Forming Machine
