Specifications
Brand Name :
THRONCH
Certification :
CE/ISO9001,CE,BV,Ce Bv Iso Sgs,CE$ISO
Place of Origin :
China
MOQ :
1 SET
Price :
USD 100000-200000 PER SET
Payment Terms :
TT / LC,Western Union,MoneyGram
Supply Ability :
10 SET / MONTH
Delivery Time :
Depends on the items and the quantity of your order.
Packaging Details :
Main body of High Speed Metal Stud and Track Roll Forming Machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in 1x40GP container suitable for long-distance transportation, spare parts are
Product :
Automatic Profile Production Line with PLC
Use :
Roof,Wall,dooor frame,house structure,cable tray
Condition :
New
Weight :
10T,3.5T,5 Tons,5.5 tons,12tons
Tile type :
Steel,Colored Glaze Steel
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Field maintenance and repair service,Field installation,commissioning and training
Warranty :
1 Year,5 Years,Forever,2 years,12months
Control system :
PLC(imported Brand),PLC,XINJIE,PLC Delta Inverter,Taiwan Delta
Power(w) :
4+3KW,7.5 Kw,Hydraulic,11KW,5.5KW
Shaft material :
GCr15
Cutting blade material :
SKD11,Cr 12Mov with quenched treatment
Raw material :
Color Steel Sheet,Galvanized Sheet,aluminum sheet,ppgi,PPGI/Galvanized sheet
Thickness :
0.8- 3 mm
Color :
according your request,Client's Request,blue/red/yellow/and so on,Customized
Description
Automatic Profile Production Line with PLC
Key Specifications
Attribute Value
Material Compatibility Steel, Aluminum, ZAM
Control System Servo Motor And PLC
Horizontal deviation ± 0.5 mm
Longitudinal deviation of hole ± 0.5 mm
Warranty 1 year
Power Supply 220V, 380V
Punching Speed 300 Punches Per Minute
Operation Mode Automatic
Key Selling Points Long Service Life
Product Features
  • Produces different purlin sizes without changing rollers or spacers
  • No need to change cutter for different sizes
  • Easy operation with low maintenance cost
  • Infinite sizing capability within machine range helps save material
  • Optional punch hole at any position of purlin web side and flange side
Technical Parameters
Parameter Value
Suitable material Carbon steel, Color steel sheet, galvanized steel sheet
Main motor power 37 or 55 kW with Cycloidal reducer
Hydraulic station power 55kW, 37 kW
Hydraulic oil 40#
Thickness 1.0mm~8.0 mm
Diameter Φ70mm, Φ80mm, Φ90mm...
Electric tension 220V/380V 3phase 50HZ
Material of roller Cr12MoV (Equivalent to SKD11, STD11, D2)
Rolling galvanization thickness 1-3 mm
Processing speed 10-40 m/min
Processing precision within 10m±1.00mm
Material of cutting blade Cr12MoV quenched

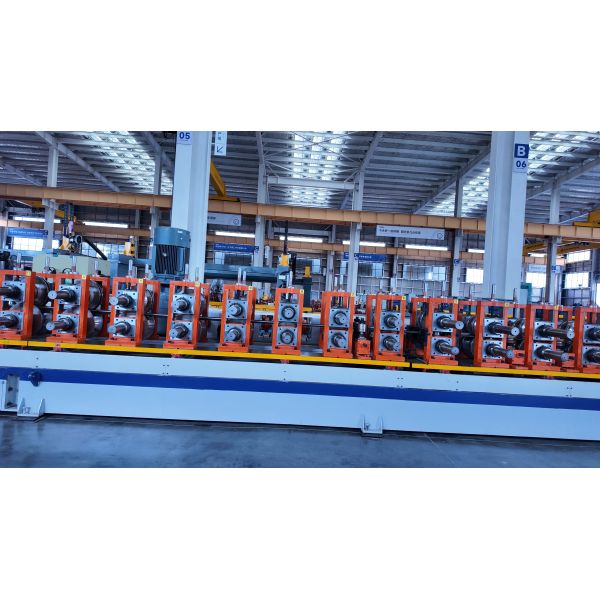

Production Display
Automatic Profile Production Line with PLC
Applications
Automatic Profile Production Line with PLC Automatic Profile Production Line with PLC
Production Process
Automatic Profile Production Line with PLC
Packing and Shipping
Automatic Profile Production Line with PLC
Frequently Asked Questions
Q1. What are the main key points for selecting right machines?
A1: Whole structure, Roller Shaft, Roller Material, Motor & Pump, and Control system. As the new buyer, please kindly know that price is not the final point. Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machines need to be customized as per detailed request, because raw material, size, production usage, machine speed, and machine specification will be different.
Q3. What's your standard trade terms?
A3: We can provide the technical offer with FOB, CFR, CIF, Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE, TUV/BV Certificate.
Q5. How about the after-sale service?
A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
