Specifications
Brand Name :
Betterfuse
Model Number :
720
Certification :
TUV
Place of Origin :
Dongguan,Guangdong,China
MOQ :
10000PCS
Price :
0.25~0.3 USD/PC
Payment Terms :
T/T
Supply Ability :
5KKPCS Per month
Delivery Time :
2 Weeks
Packaging Details :
Bulk
Name :
High Voltage Fuse
Size :
6.5*40mm
Characteristics :
Quick- Acting(F)
Standard :
IEC-60127-2/Ⅳ
Fuse body :
Glass Tube
End Caps :
Nickel plated brass
Spring :
Ag plated brass
Operating Temperature :
-55℃ to +125℃
Rated current :
400mA~1A
Voltage Rating :
5KV
Description

720 Quick-Acting High Voltage Fuse 600/650/700/750/800/850/900mA 5KV For Micro-wave Oven

Main Characteristics Of The High Voltage Fuse


- High voltage fuse;Quick- Acting(F)
- Standard:IEC-60127-2/Ⅳ
- Materials
Fuse body: Glass Tube
End Caps: Nickel plated brass
Spring: Ag plated brass
- Operating Temperature:-55℃ to +125℃
- Storage Conditions:+10℃ to +60℃
Relative humidity:≤75% yearly average Without dew, maximum 30 days at 95%
- Vibration Resistance
24 cycles at 15 min. each (60068-6)
10-60Hz at 0.75mm amplitude
60-2000Hz at 10g acceleration
- Soldering Parameters
260℃.≤5 sec (Wave Soldering)
350℃.≤3 sec (Hand Soldering)
- Soldering Peak:260℃. 10 sec. (IEC 60068-20)

Quick Acting High Voltage Fuse 800 / 850 / 900mA 5KV For Microwave Oven

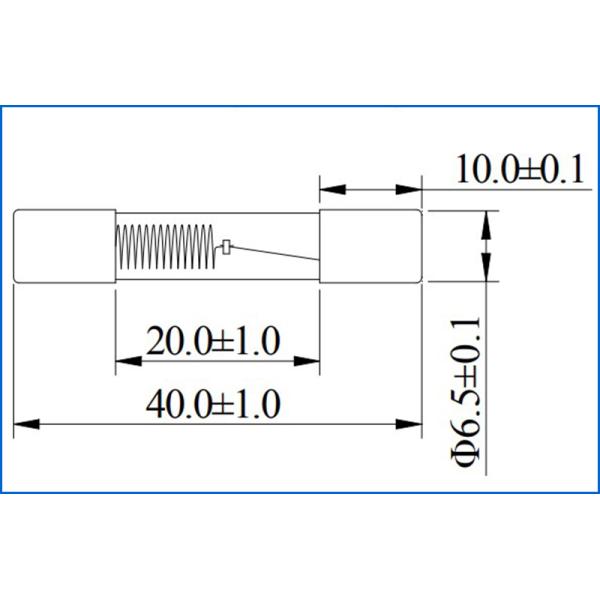

Dimensions Of The High Voltage Fuse (unit: mm)

Quick Acting High Voltage Fuse 800 / 850 / 900mA 5KV For Microwave Oven

Time vs Current Characteristics: IEC-60127-2/Ⅳ Of The High Voltage Fuse

Rated current 115% 150% 200% 275% 400% 1000%
400mA~1A >4h <300s <20s 20ms~1500ms 8ms~400ms ≤80ms

Electrical Characteristics Of The High Voltage Fuse

Amp

Code

Rated

Current

 Voltage Rating Voltage Drop(mV) Max

Nominal

Melting I²t(A²sec)

Approvals

TUV
0400 400mA 5KV 1500 0.70 ○
0500 500mA 5KV 1500 0.76 ○
0550 550mA 5KV 1500 0.81 ○
0600 600mA 5KV 1500 0.96 ●
0650 650mA 5KV 1500 1.00 ●
0700 700mA 5KV 1500 0.90 ●
0750 750mA 5KV 1500 1.56 ●
0800 800mA 5KV 1000 1.69 ●
0850 850mA 5KV 1000 1.90 ●
0900 900mA 5KV 1000 2.22 ●
1100 1A 5KV 1000 2.34 ○

Note: Permissible continuous operating current is ≤100% at ambient temperature of 23°C (73.4°F)

Other Model Of The High Voltage Fuse

Quick Acting High Voltage Fuse 800 / 850 / 900mA 5KV For Microwave Oven

Quick Acting High Voltage Fuse 800 / 850 / 900mA 5KV For Microwave Oven

Quick Acting High Voltage Fuse 800 / 850 / 900mA 5KV For Microwave Oven
