Bolt-on LV HRC High Rupturing Capacity Slotted Tag Fuse NH000 AR 315A 690V SITOR Fuse Link for Semiconductor Device Protection
Bolt-on LV HRC High Rupturing Capacity Slotted Tag Fuse NH000 AR 315A 690V SITOR Fuse Link for Semiconductor Device Protection
Bolt-on LV HRC High Rupturing Capacity Slotted Tag Fuse NH000 AR 315A 690V SITOR Fuse Link for Semiconductor Device Protection
Bolt-on LV HRC High Rupturing Capacity Slotted Tag Fuse NH000 AR 315A 690V SITOR Fuse Link for Semiconductor Device Protection
Bolt-on LV HRC High Rupturing Capacity Slotted Tag Fuse NH000 AR 315A 690V SITOR Fuse Link for Semiconductor Device Protection
Bolt-on LV HRC High Rupturing Capacity Slotted Tag Fuse NH000 AR 315A 690V SITOR Fuse Link for Semiconductor Device Protection
Bolt-on LV HRC High Rupturing Capacity Slotted Tag Fuse NH000 AR 315A 690V SITOR Fuse Link for Semiconductor Device Protection
Bolt-on LV HRC High Rupturing Capacity Slotted Tag Fuse NH000 AR 315A 690V SITOR Fuse Link for Semiconductor Device Protection
Bolt-on LV HRC High Rupturing Capacity Slotted Tag Fuse NH000 AR 315A 690V SITOR Fuse Link for Semiconductor Device Protection
Bolt-on LV HRC High Rupturing Capacity Slotted Tag Fuse NH000 AR 315A 690V SITOR Fuse Link for Semiconductor Device Protection
Specifications
Brand Name :
CNAMPFORT
Model Number :
AMPWR180M1372
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
500PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100,000,000pcs per month
Delivery Time :
1-2 weeks
Packaging Details :
Bulk
Name :
Slotted Tag Fuse
Operating class :
aR
Breaking Capacity :
200KA
Rated Current :
315A
Rated Voltage :
690VAC
I2t Pre-arcing :
1.15x104A2S
Description

Bolt-on LV HRC High Rupturing Capacity Slotted Tag Fuse NH000 AR 315A 690V SITOR Fuse Link for Semiconductor Device Protection

Description

Speed fuses are specialized fuses designed for protecting electrical circuits, particularly in semiconductor applications. Here are some key points:

-Function: High-speed fuses are thermal, current-controlled devices that protect semiconductor circuits from overcurrent conditions by interrupting the circuit quickly.
-Design: They feature a specially designed element profile and body construction to ensure fast-acting performance with low energy let-through and low arc voltage.
-Applications: Commonly used in applications involving IGBTs and other sensitive power semiconductor devices, they help prevent damage from thermal and electrical overloads.

Electrical Specifications

- Rated Voltage: 690V AC
- Rated Current: 315A
- Breaking Capacity : 200KA
- Operating class: aR
- I2t Pre-arcing: 1.15x104A2S
- I2tTotal: 8.0x104A2S

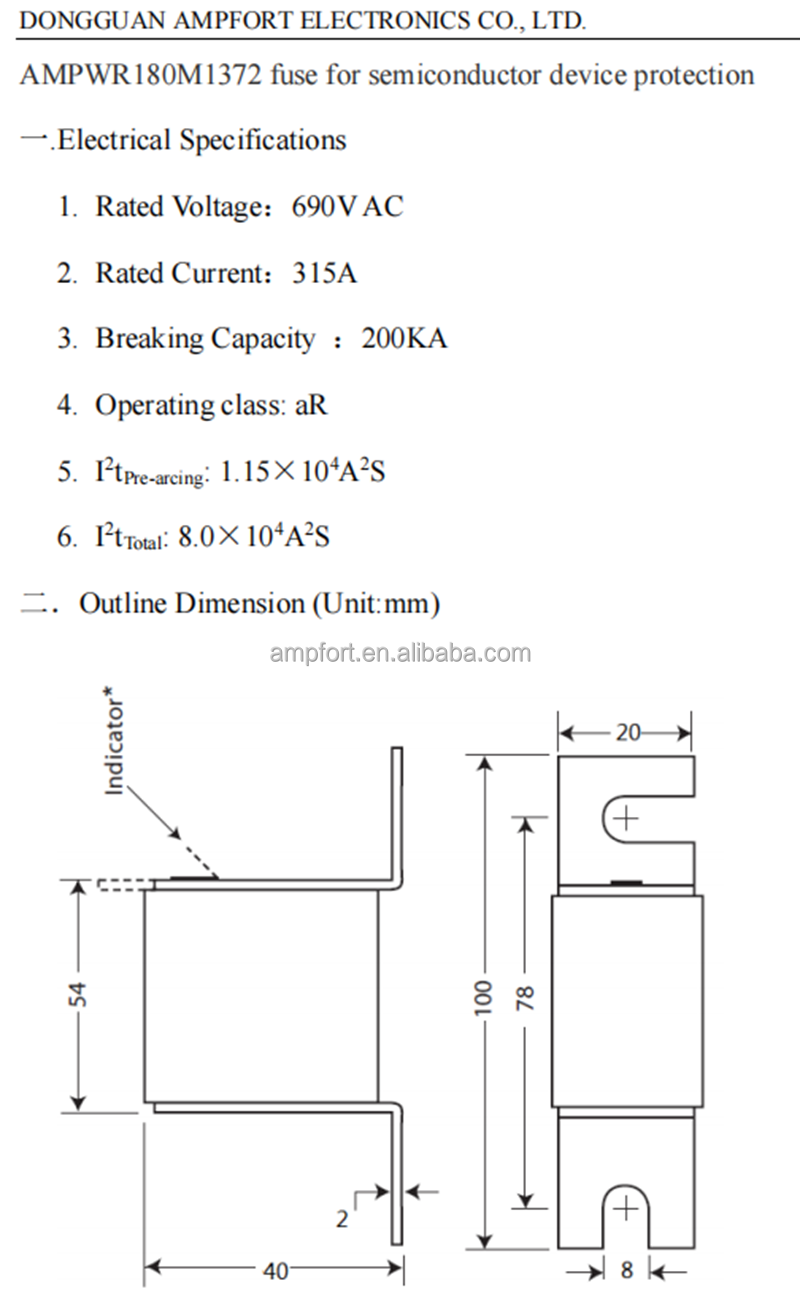

Outline Dimension (Unit:mm)

Bolt-on LV HRC High Rupturing Capacity Slotted Tag Fuse NH000 AR 315A 690V SITOR Fuse Link for Semiconductor Device Protection

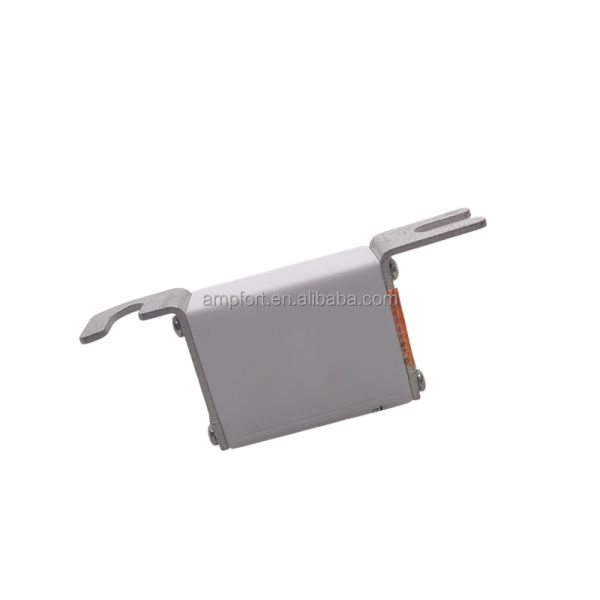

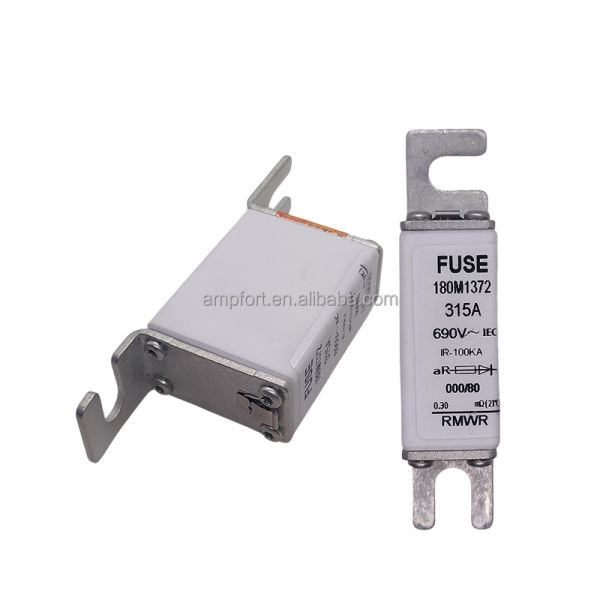

Photos

Bolt-on LV HRC High Rupturing Capacity Slotted Tag Fuse NH000 AR 315A 690V SITOR Fuse Link for Semiconductor Device ProtectionBolt-on LV HRC High Rupturing Capacity Slotted Tag Fuse NH000 AR 315A 690V SITOR Fuse Link for Semiconductor Device Protection
