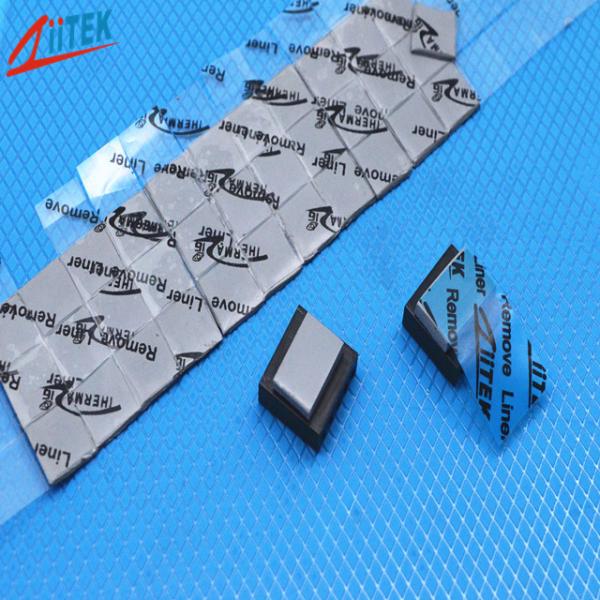

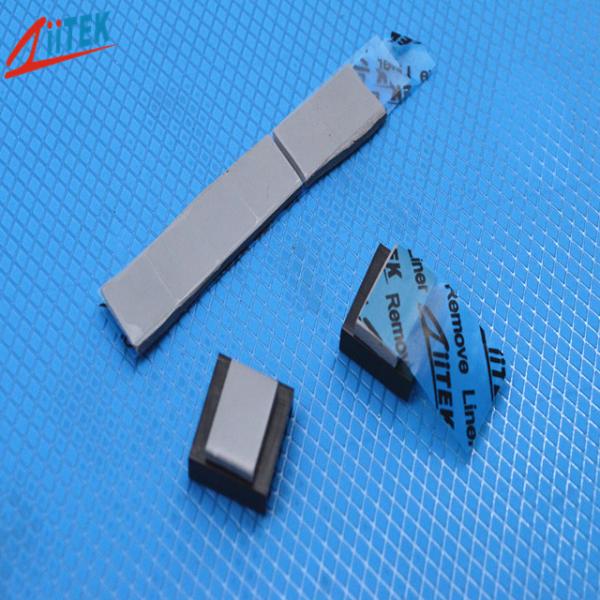

Factory Custom Size Battery Led Laptop Termal Pad 2W 1.5mm Silicone Themals Conductive Pads
Factory Custom Size Battery Led Laptop Termal Pad 2W 1.5mm Silicone Themals Conductive Pads
Factory Custom Size Battery Led Laptop Termal Pad 2W 1.5mm Silicone Themals Conductive Pads
Factory Custom Size Battery Led Laptop Termal Pad 2W 1.5mm Silicone Themals Conductive Pads
Specifications
Brand Name :
Ziitek
Model Number :
TIF560-20-11US
Certification :
UL & RoHS
Place of Origin :
China
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
1000000 pcs/month
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Products name :
Factory Custom Size Battery Led Laptop Termal Pad 2W 1.5mm Silicone Themals Conductive Pads
Thickness :
1.5mmT
Keywords :
Led Termal Pad
Specific Gravity :
2.5g/cc
Dielectric Breakdown Voltage :
>5500 VAC
Thermal conductivity :
2.0W/m-K
Color :
Dark Gray
Operating Temp :
-40~200℃
Application :
LED CPU GPU MOS Laptop
Description

Factory Custom Size Battery Led Laptop Termal Pad 2W 1.5mm Silicone Themals Conductive Pads

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

Product introduction


TIF®560-20-11US Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely_sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.

Features
> Good thermal conductive: 2.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Easy release construction
> Electrically isolating
> High durability

Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

Typical Properties of TIF®500-20-11US Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.5 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.0)
Hardness 65 Shore 00 20 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL94 (E331100)
Thermal conductivity 2.0 W/m-K ASTM D5470
2.0 W/m-K ISO22007

Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mm×406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
