Thermal Conductive Silica Gel High Thermal Conductivity 7.0W CPU Heat Dissipation Manufacturer
Thermal Conductive Silica Gel High Thermal Conductivity 7.0W CPU Heat Dissipation Manufacturer
Thermal Conductive Silica Gel High Thermal Conductivity 7.0W CPU Heat Dissipation Manufacturer
Thermal Conductive Silica Gel High Thermal Conductivity 7.0W CPU Heat Dissipation Manufacturer
Specifications
Brand Name :
Ziitek
Model Number :
TIF070-11
Certification :
UL
Place of Origin :
China
MOQ :
1000tube
Price :
0.1-100USD/KG
Payment Terms :
T/T
Supply Ability :
10000KG/MONTH
Delivery Time :
3-8 WORK DAYS
Packaging Details :
30cc/PCS
Products Name :
Thermal Conductive Silica Gel High Thermal Conductivity 7.0W CPU Heat Dissipation Manufacturer
Application :
For CPU Heat Dissipation
SPecific Gravity :
3.5g/cc
Color :
Gray
flame rating :
UL 94 V-0
Certifications :
RoHS
Thermal conductivity :
7.0 W/m-K
Keywords :
Thermal Conductive Silica Gel
Description

Thermal Conductive Silica Gel High Thermal Conductivity 7.0W CPU Heat Dissipation Manufacturer

Products description

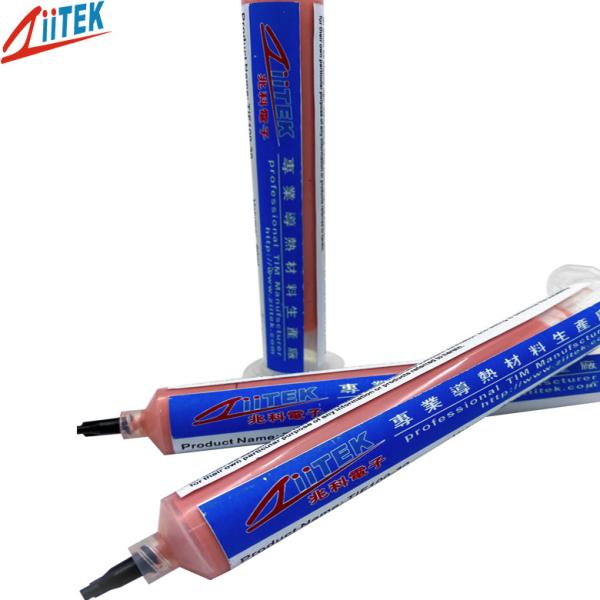

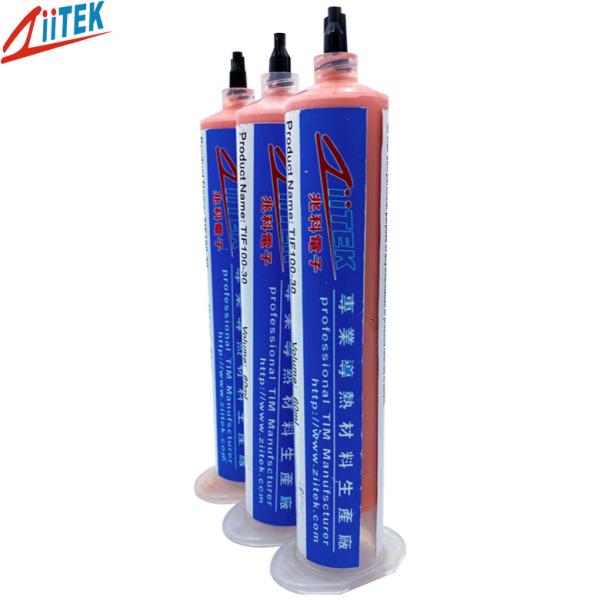

TIF®070-11 is a soft silicone gel-based gap filler pad, formulated with a special blend of fillers to provide both excellent thermal conductivity and superior softness. Compared to conventional thermal greases, TIF®070-11 has a higher viscosity, which effectively prevents filler separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment. Typical applications include flip-chip microprocessors, PPGAs, micro BGA packages, BGA packages, DSP chips, circular silicon chips, LED lighting, and other high-power electronic components.
Thermal Conductive Silica Gel High Thermal Conductivity 7.0W CPU Heat Dissipation Manufacturer

Feature


> Thermal conductivity :7.0W/mK
> Soft, very low compression
> Low thermal inpedance
> Operate automaticly
> Proven long-term reliability

Application


> Heat-sink & frame
> LED backlight module,LED lighting
> High speed hardware driver
> Micro heat pipe
> Vihicel enginee controler
> Telecom industry
> Semiconductor 'automatic laboratory equipment.

TIF®070-11 Typical Properties
Property Value Test method
Color Gray Visual
Construction & Composition Ceramic filled silicon material -
Flow Rate(g/min) 30 Ziitek Test Method (30 cc syringe/ 2.5 mm orifice/ 90 psi)
Density(g/cc) 3.50g/c ASTM D297
Thermal conductivity 7.0W/mK ASTM D5470
Thermal Impedance @10psi (℃.in²w) 0.142 ASTM D5470
Thermal Impedance @50psi (℃.in²w) 0.12 ASTM D5470
Recommended Operating Temp -45 ~200°C Ziitek Test Method
Dielectric Strength(V/mm) ≥4000 ASTM D149
Bond Line Thickness(mm) 0.2 Ziitek Test Mothod
Flame Rating V-0 UL 94
Shelf Life 12 months -
Packing details

30 cc/pc, 98 pc/box; 300 cc/pc 6 pc/box
Custom packaging available for automation use. Please contact us for confirming.
If you want to know our thermal products, please visit our website.

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Thermal Conductive Silica Gel High Thermal Conductivity 7.0W CPU Heat Dissipation Manufacturer
FAQ:

Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
