UL 94 V-0 Good Performance 6W/MK Heat Transfer Thermal Silicone Gel For Heat Sink
UL 94 V-0 Good Performance 6W/MK Heat Transfer Thermal Silicone Gel For Heat Sink
UL 94 V-0 Good Performance 6W/MK Heat Transfer Thermal Silicone Gel For Heat Sink
UL 94 V-0 Good Performance 6W/MK Heat Transfer Thermal Silicone Gel For Heat Sink
Specifications
Brand Name :
Ziitek
Model Number :
TIF060-16
Certification :
UL
Place of Origin :
China
MOQ :
1000tube
Price :
0.1-100USD/KG
Payment Terms :
T/T
Supply Ability :
10000KG/MONTH
Delivery Time :
3-8 WORK DAYS
Packaging Details :
300cc/tube
Products name :
UL 94 V-0 Good Performance 6W/MK Heat Transfer Thermal Silicone Gel For Heat Sink
Application :
Heat-sink & frame
Color :
Purple
Keywords :
Thermal Silicone Gel
Flame rating :
UL 94 V-0
Certifications :
RoHS
Thermal conductivity :
6.0W /mK
Density :
3.4g/cc
Description

UL 94 V-0 Good Performance 6W/MK Heat Transfer Thermal Silicone Gel For Heat Sink​

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Products description

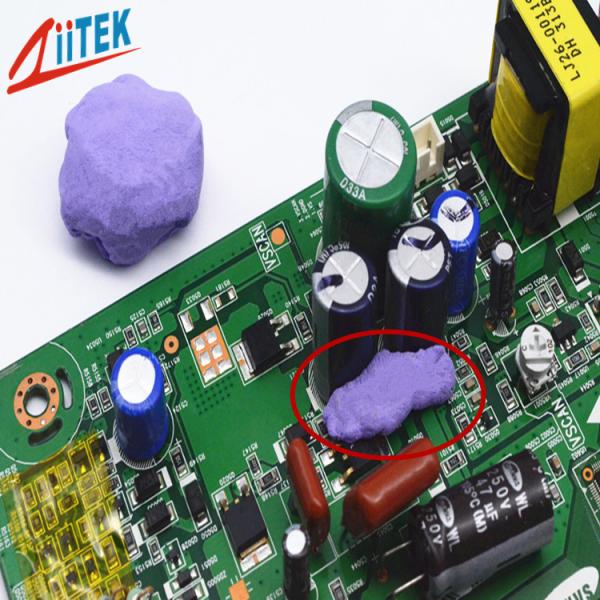

TIF®060-16 is a soft silicone gel-based gap filler pad, formulated with a special blend of fillers to provide both excellent thermal conductivity and superior softness. Compared to conventional thermal greases, TIF®060-16 has a higher viscosity, which effectively prevents filler separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment. Typical applications include flip-chip microprocessors, PPGAs, micro BGA packages, BGA packages, DSP chips, circular silicon chips, LED lighting, and other high-power electronic components.

Feature

> Thermal conductivity: 6.0 W/mK
> Soft, very low compression
> Low thermal impedance
> Operate automatically
> Proven long-term reliability


Application

> Heat-sink & frame
> LED backlight module, LED lighting
> High speed hardware driver
> Micro heat pipe
> Vihicel enginee controller
> Telecom industry
> Semiconductor automatic laboratory equipment

TIF®060-16 Typical Properties
Property Value Test method
Color Purple Visual
Construction & Composition Ceramic filled silicon material -
Flow Rate(g/min) 36 Ziitek Test Method (30 cc syringe/ 2.5 mm orifice/ 90 psi)
Density(g/cc) 3.40g/c ASTM D297
Thermal conductivity 6.0W/mK ASTM D5470
Thermal Impedance @10psi (℃.in²w) 0.071 ASTM D5470
Thermal Impedance @50psi (℃.in²w) 0.055 ASTM D5470
Recommended Operating Temp -45 ~200°C Ziitek Test Method
Dielectric Strength(V/mm) ≥4000 ASTM D149
Bond Line Thickness(mm) 0.2 Ziitek Test Mothod
Flame Rating V-0 UL 94
Shelf Life 12 months -

Product Specification:

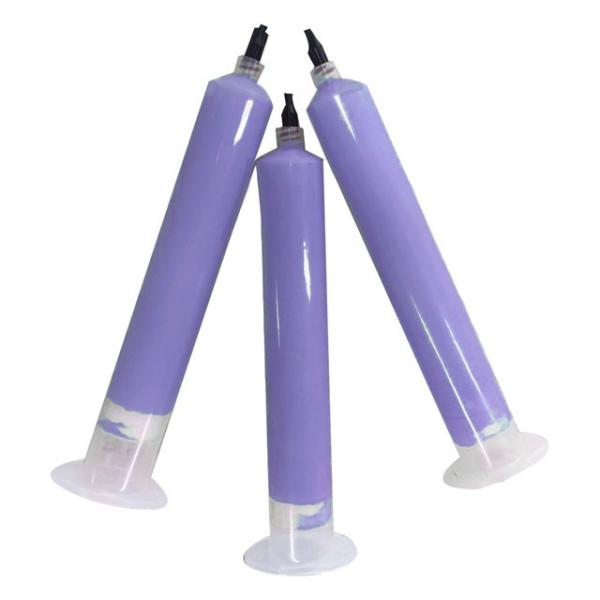

30 cc/pcs, 98 pcs/box; 300 cc/pcs, 6 pcs/box.
Custom packaging available for automation use. Please contact us for confirming.
If you want to know our thermal products, please visit our website.

UL 94 V-0 Good Performance 6W/MK Heat Transfer Thermal Silicone Gel For Heat Sink

Our services

Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

FAQ:

Q:How can we get detailed price list?

A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.

Q:Do big buyers have promotional prices?

A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
