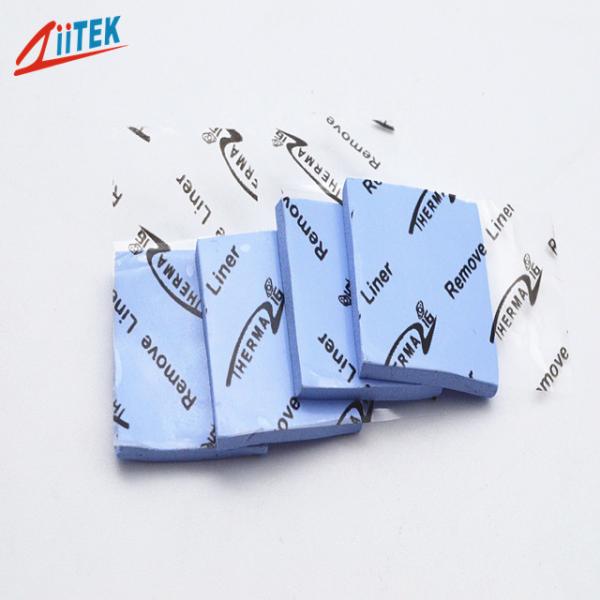

1.5mmt CPU Thermal Pad High Tack Surface Reduces Contact Resistance For IT Infrastructure
1.5mmt CPU Thermal Pad High Tack Surface Reduces Contact Resistance For IT Infrastructure
1.5mmt CPU Thermal Pad High Tack Surface Reduces Contact Resistance For IT Infrastructure
1.5mmt CPU Thermal Pad High Tack Surface Reduces Contact Resistance For IT Infrastructure
Specifications
Brand Name :
Ziitek
Model Number :
TIF160-30-05US thermal pad
Certification :
UL
Place of Origin :
China
MOQ :
1000 pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/month
Delivery Time :
3-8 work days
Packaging Details :
24*13*12cm cartons
Products Name :
1.5mmt CPU Thermal Pad High Tack Surface Reduces Contact Resistance For IT Infrastructure
Application :
IT infrastructure
Dielectric constant :
7.0 MHz
Continuos Use Temp :
-40 to 200℃
Specific gravity :
3.0 g/cm³
Color :
Blue
Keywords :
CPU Thermal Pad
Construction :
Ceramic filled silicone elastomer
Description

1.5mmT thermal pad High tack surface reduces contact resistance for IT infrastructure

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

TIF®160-30-05US is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

Features:


> Good thermal conductive: 3.0 W/mK
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance


Applications:


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

Typical Properties of TIF®100-30-05US Series
Property Value Test method
Color Blue Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.0 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.00)
Hardness 50 Shore 00 20 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 7.0 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 3.0 W/m-K ASTM D5470
3.0 W/m-K ISO22007

Product Specification

Product Thicknesses: 0.010"(0.25mm)~ 0.200" (5.00mm) with increments of 0.010"(0.25mm).
Product Sizes: 16" x 16" (406mm x 406mm)

Component Codes:


Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

1.5mmt CPU Thermal Pad High Tack Surface Reduces Contact Resistance For IT Infrastructure

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

1.5mmt CPU Thermal Pad High Tack Surface Reduces Contact Resistance For IT Infrastructure
FAQ

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online.
