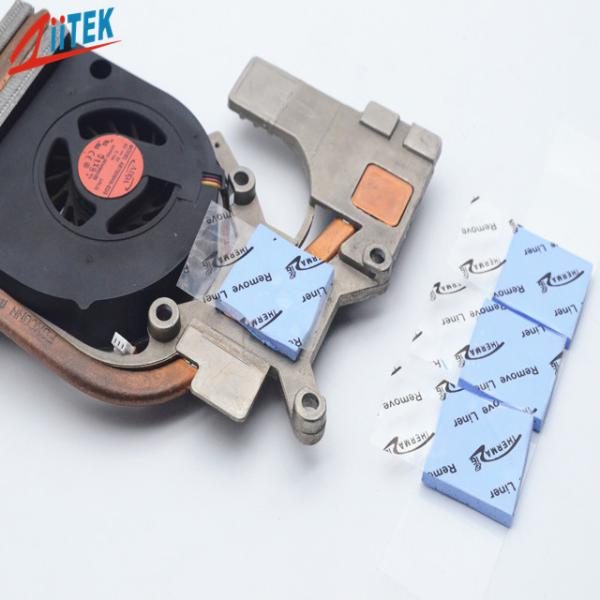

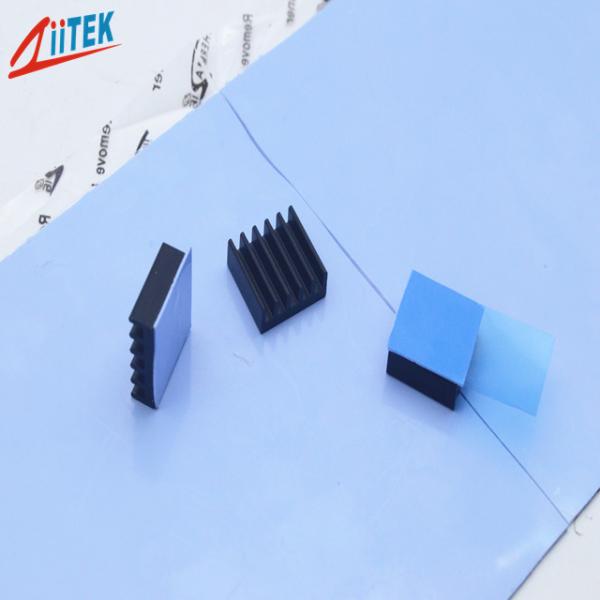

Rohs Compliant 1.2 W/Mk Cpu Thermal Pad For Heat Pipe Thermal
Rohs Compliant 1.2 W/Mk Cpu Thermal Pad For Heat Pipe Thermal
Rohs Compliant 1.2 W/Mk Cpu Thermal Pad For Heat Pipe Thermal
Rohs Compliant 1.2 W/Mk Cpu Thermal Pad For Heat Pipe Thermal
Rohs Compliant 1.2 W/Mk Cpu Thermal Pad For Heat Pipe Thermal
Rohs Compliant 1.2 W/Mk Cpu Thermal Pad For Heat Pipe Thermal
Specifications
Brand Name :
Ziitek
Model Number :
TIF160-12-05US thermal pad
Certification :
UL
Place of Origin :
China
MOQ :
1000 pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/month
Delivery Time :
3-8 work days
Packaging Details :
24*13*12cm carton
Products name :
Rohs Compliant 1.2 W/Mk Cpu Thermal Pad For Heat Pipe Thermal
Hardness :
65/20 shore00
Keywords :
CPU Thermal Pad
Color :
Blue
Construction :
Ceramic filled silicone elastomer
Thermal conductive :
1.2W/mK
Application :
LED CPU GPU MOS
Density :
2.0 g/cm³
Description

Rohs Compliant 1.2 W/Mk Cpu Thermal Pad For Heat Pipe Thermal


Company Profile


Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Products description
TIF®160-12-05US is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features
>Good thermal conductive:1.2W/mK
>Thickness:1.5mmT
>Hardness:20±5 Shore 00
>Colour: blue

>Good thermal conductive

>Moldability for complex parts

>Soft and compressible for low stress applications

Applications

>Monitoring the Power Box

>AD-DC Power Adapters

>Rainproof LED Power

>Waterproof LED Power

>SMD LED module

>LED Flesible strip, LED bar

Typical Properties of TIF®100-12-05US Series
Property Value Test method
Color Blue Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.0 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.00)
Hardness 65 Shore 00 20 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 1.2 W/m-K ASTM D5470
1.2 W/m-K ISO22007

Product Specifications


Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Rohs Compliant 1.2 W/Mk Cpu Thermal Pad For Heat Pipe Thermal

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Our services

Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

Rohs Compliant 1.2 W/Mk Cpu Thermal Pad For Heat Pipe Thermal
FAQ

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
