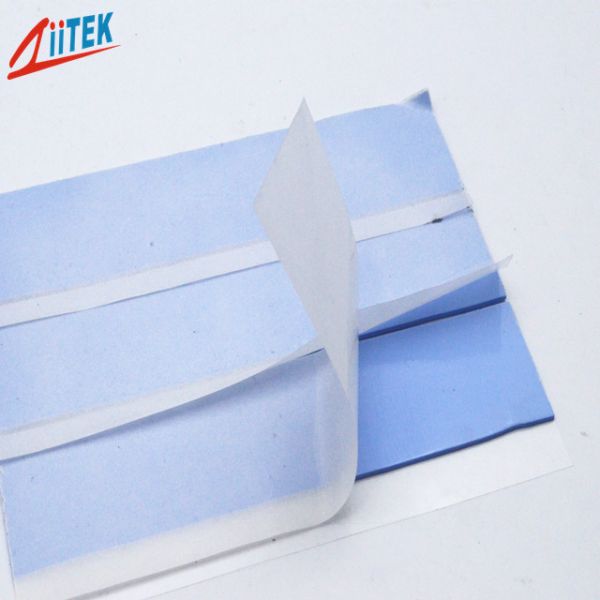

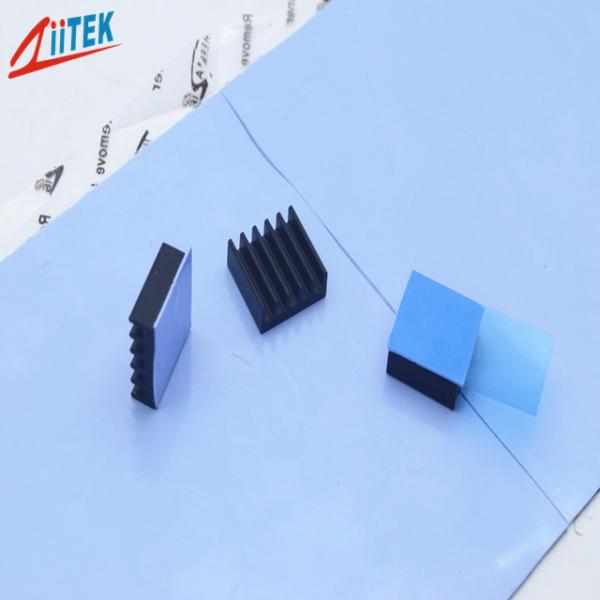

Hardness 20 Shore 00 Good Insulation Performance 4.5mmt Thermal Conductive Gap Filler Pad For Video Capture Board
Hardness 20 Shore 00 Good Insulation Performance 4.5mmt Thermal Conductive Gap Filler Pad For Video Capture Board
Hardness 20 Shore 00 Good Insulation Performance 4.5mmt Thermal Conductive Gap Filler Pad For Video Capture Board
Hardness 20 Shore 00 Good Insulation Performance 4.5mmt Thermal Conductive Gap Filler Pad For Video Capture Board
Specifications
Brand Name :
Ziitek
Model Number :
TIF1180-12-05US thermal pad
Certification :
UL
Place of Origin :
China
MOQ :
1000 pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/month
Delivery Time :
3-8 work days
Packaging Details :
24*13*12cm cartons
Prodcuts name :
Hardness 20 Shore 00 Good Insulation Performance 4.5mmt Thermal Conductive Gap Filler Pad For Video Capture Board
hardness :
20±5 shore00
Keywords :
Thermal Conductive Gap Filler Pad
Color :
Blue
Material :
Ceramic filled silicon material
thermal conductive :
1.2W/mK
Thickness :
4.5mmT
Application :
Video Capture Board
Description

Hardness 20 Shore 00 Good Insulation Performance 4.5mmt Thermal Conductive Gap Filler Pad For Video Capture Board


Company Profile

Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.

TIF®1180-12-05US use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

Features
>Good thermal conductive:1.2W/mK
>Thickness:4.5mmT
>Colour: blue

>Good thermal conductive

>Moldability for complex parts

>Soft and compressible for low stress applications

Applications

>Waterproof LED Power

>SMD LED module

>LED Flesible strip, LED bar

>LED PanelLight

>LED floor light

>Routers

Typical Properties of TIF®100-12-05US Series
Property Value Test method
Color Blue Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.0 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.00)
Hardness 65 Shore 00 20 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 1.2 W/m-K ASTM D5470
1.2 W/m-K ISO22007

Product Specifications


Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Hardness 20 Shore 00 Good Insulation Performance 4.5mmt Thermal Conductive Gap Filler Pad For Video Capture Board

Our services

Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

Hardness 20 Shore 00 Good Insulation Performance 4.5mmt Thermal Conductive Gap Filler Pad For Video Capture Board
FAQ

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
