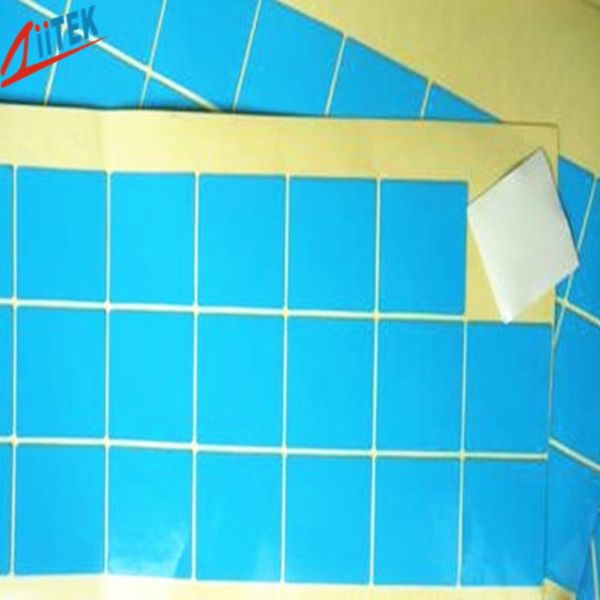

Fiberglass Backing Thermal Adhesive Tape Easy To Stamping Processing For LED Mount Heat Sink
Fiberglass Backing Thermal Adhesive Tape Easy To Stamping Processing For LED Mount Heat Sink
Fiberglass Backing Thermal Adhesive Tape Easy To Stamping Processing For LED Mount Heat Sink
Fiberglass Backing Thermal Adhesive Tape Easy To Stamping Processing For LED Mount Heat Sink
Fiberglass Backing Thermal Adhesive Tape Easy To Stamping Processing For LED Mount Heat Sink
Fiberglass Backing Thermal Adhesive Tape Easy To Stamping Processing For LED Mount Heat Sink
Fiberglass Backing Thermal Adhesive Tape Easy To Stamping Processing For LED Mount Heat Sink
Fiberglass Backing Thermal Adhesive Tape Easy To Stamping Processing For LED Mount Heat Sink
Fiberglass Backing Thermal Adhesive Tape Easy To Stamping Processing For LED Mount Heat Sink
Fiberglass Backing Thermal Adhesive Tape Easy To Stamping Processing For LED Mount Heat Sink
Specifications
Payment Terms :
T/T
Thickness(inch/mm) :
0.008"/0.20mm
Brand Name :
Ziitek
Model Number :
TIA808FG
Certification :
RoHs
Place of Origin :
China
MOQ :
10SQM
Supply Ability :
1000SQM/Day
Delivery Time :
3-7 Work days
Packaging Details :
10RL/bag
Thermal Conductivity :
0.8 W/mK
Price :
Negotiation
Products name :
Fiberglass Backing Thermal Adhesive Tape Easy To Stamping Processing For LED Mount Heat Sink
Application :
LED Mount Heat Sink
180° Peel Adhesion (gf/inch) Steel, Immediate :
≥1000
Adhesive Type :
Acrylic Adhesive
Backing Type :
Fiberglass
Description
Fiberglass Backing Thermal Adhesive Tape Easy To Stamping Processing For LED Mount Heat Sink

The TIA®808FG Series is widely used for bonding heat sinks to microprocessors and other power consuming semiconductors. These tapes have strong adhesive strength and good thermal conductivity, aiming to replace traditional mechanical fixation and thermal conductive silicone grease, simplify assembly processes, improve product reliability, and are an ideal choice for solving the heat dissipation challenges of modern compact electronic devices.

Features
  • High bonding strength
  • Good thermal conductivity efficiency
  • Easy to apply and can be die-cut into custom sizes
  • Stable operation over a wide temperature range
Applications
  • LED module
  • Power device
  • Consumer electronics
  • Communication equipment
Typical Properties of TIA®800FG Series
Product Name TIA®808FG Test Method
Color White Visual
Adhesive Type Acrylic Adhesive -
Backing Type Fiberglass -
Recommended Operating Temperature(℃) -40 ~ 125 -
Composite Thickness(inch/mm) 0.008/0.20 ASTM D374
Voltage Breakdown(V) ≥3500 ASTM D149
Thermal Conductivity(W/mK) 0.8 ASTM D5470
180° Peel Adhesion (gf/inch) Steel, Immediate ≥ 1000 ASTM D3330
180° Peel Adhesion (gf/inch) Steel, Steel 24 hrs ≥ 1200 ASTM D3330
Holding Power (H/inch) @25℃ ≥ 48 ASTM D3654
Holding Power (H/inch) @80℃ ≥ 48 ASTM D3654
Product Specifications

Standard Thickness: 0.005" (0.13 mm), 0.006" (0.15 mm), 0.008" (0.20 mm), 0.010" (0.25 mm), 0.012" (0.30 mm), 0.015" (0.38 mm), 0.020" (0.51 mm)

Standard Size: 16" × 100" (406 mm × 30.48 m)

Reinforcing Carrier: TIA®800FG Series rolls can be reinforced with fiberglass.

The TIA® Series can be provided with die-cutting into various shapes. For different thicknesses or more information about thermally conductive materials, please contact our company.

Fiberglass Backing Thermal Adhesive Tape Easy To Stamping Processing For LED Mount Heat Sink
Company Profile

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:

  • Thermal gap pad
  • Thermal graphite sheet/film
  • Thermal double-sided tape
  • Thermal insulation pad
  • Thermal grease
  • Phase change material
  • Thermal gel

All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
