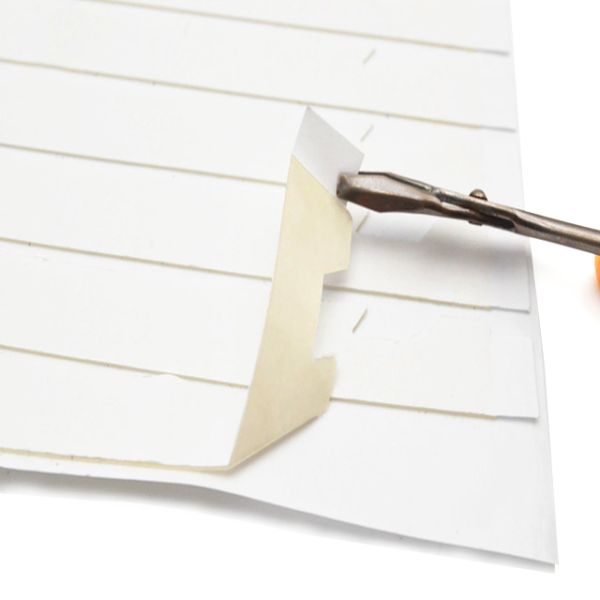

High Performance Conductive Acrylic TIA800 Series 0.8W/MK Thermal Adhesive Tape With Double-Sided Adhesive
High Performance Conductive Acrylic TIA800 Series 0.8W/MK Thermal Adhesive Tape With Double-Sided Adhesive
High Performance Conductive Acrylic TIA800 Series 0.8W/MK Thermal Adhesive Tape With Double-Sided Adhesive
High Performance Conductive Acrylic TIA800 Series 0.8W/MK Thermal Adhesive Tape With Double-Sided Adhesive
Specifications
Brand Name :
Ziitek
Model Number :
TIA800 Series
Certification :
RoHs
Place of Origin :
China
MOQ :
10SQM
Supply Ability :
1000SQM/Day
Delivery Time :
2-3Work day
Packaging Details :
10RL/bag
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Products name :
High Performance Conductive Acrylic TIA800 Series 0.8W/MK Thermal Adhesive Tape With Double-Sided Adhesive
Thickness :
0.002"~0.015(0.05mm~0.38mm)
Adhesive Type :
Acrylic Adhesive
180° Peel Adhesion (gf/inch) Steel, Immediate :
1200
Thermal Conductivity :
0.8W/mK
Continuous Use Temp :
-40~125℃
Keywords :
Thermal Adhesive Tape
Application :
LED module ,Power device
Description

High Performance Conductive Acrylic TIA800 Series 0.8W/MK Thermal Adhesive Tape With Double-Sided Adhesive

The TIA®800 Series is filled with good thermal conductivity ceramic particles, featuring excellent thermal conductivity, strong adhesion and electrical insulation. It is suitable for bonding and fixing electronic components to heat sinks or housings, such as LED modules, power devices, communication equipment and other scenarios. The product is solvent-free, pollution-free, easy to construct, and can replace the traditional combination scheme of screw fixation and thermal conductive grease.


Features

> Thermal Conductivity: 0.8 W/mK

> High bonding strength
> Good thermal conductivity efficiency
> Easy to apply and can be die-cut into custom sizes
> Stable operation over a wide temperature range

Applications


> Heat sink onto BGA graphic processor
> Heat sink to computer processor
> Heat sink onto drive processor
> LED Power Supply
> LED Controller
> LED Lights
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power Supply
> Waterproof LED Power Supply
> Piranha wroof and common lED module
> LED module for Channelletters

Typical Properties of TIA®800 Series
Product Name TIA®802 TIA®804 TIA®806 TIA®808 TIA®810 TIA®812 TIA®815 Test Method
Color White Visual
Adhesive Type Acrylic Adhesive ******
Continuous Use Temp -40℃ to 125℃ ******
Thickness 0.002" 0.05mm 0.004" 0.10mm 0.006" 0.15mm 0.008" 0.20mm 0.010" 0.25mm 0.012" 0.30mm 0.015" 0.38mm ASTM D374
Voltage Breakdown ≥600 ≥1200 ≥1800 ≥2500 ≥2700 ≥3000 ≥4000 ASTM D149
Thermal Conductivity 0.8 W/mK ASTM D5470
180° Peel Adhesion (gf/inch) Steel, Immediate ≥ 1200 ASTM D3330
180° Peel Adhesionk (gf/inch) Steel, 24 hrs ≥ 1400 ASTM D3330
Holding Power (H/inch) @25℃ ≥ 48 Hours ASTM D3654
Holding Power (H/inch) @80℃ ≥ 48 Hours ASTM D3654
Product Specifications

Standard Thickness:
0.002"(0.05 mm), 0.004"(0.10 mm), 0.006"(0.15 mm),
0.008"(0.20 mm), 0.010"(0.25 mm),0.012"(0.30mm), 0.015"(0.38mm)

Standard Size: 16" x 100" (406 mm x 30.48 M)
Reinforcing Carrier: TIA®800 Series rolls can be reinforced with glass fiber.

The TIA® series can be provided with die-cutting into vaious shapes, For different thicknesses or more information about
thermally conductive materials, please contact our company.
High Performance Conductive Acrylic TIA800 Series 0.8W/MK Thermal Adhesive Tape With Double-Sided Adhesive
Company profile
Ziitek Technology Company is dedicated to providing a comprehensive range of thermal management products and services to meet various demand scenarios. Ziitek Technology offers prompt and flexible services. Our thermal conductive materials are widely used in the fields of new energy, electronic appliances, transportation, industry, healthcare, communication, etc. Ziitek has obtained ISO9001, ISO14001 and IECQ certifications, which indicate our commitment to producing high-quality products and adopting excellent management methods. Our products comply with RoHS, REACH and UL standards, ensuring safety and reliability.

Our services

Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
