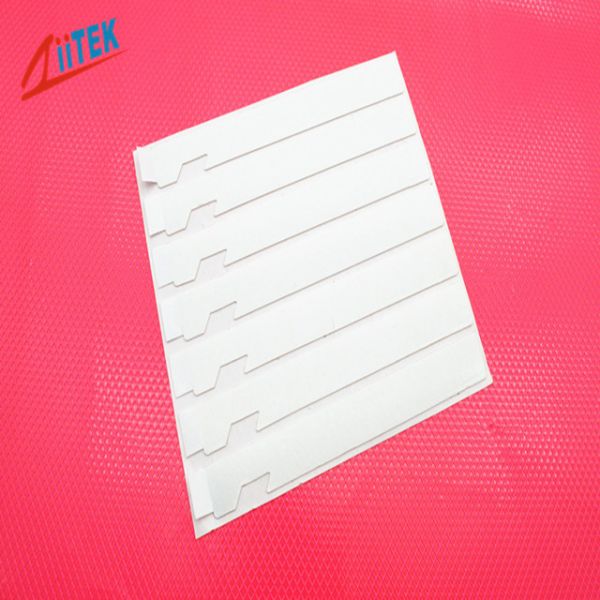

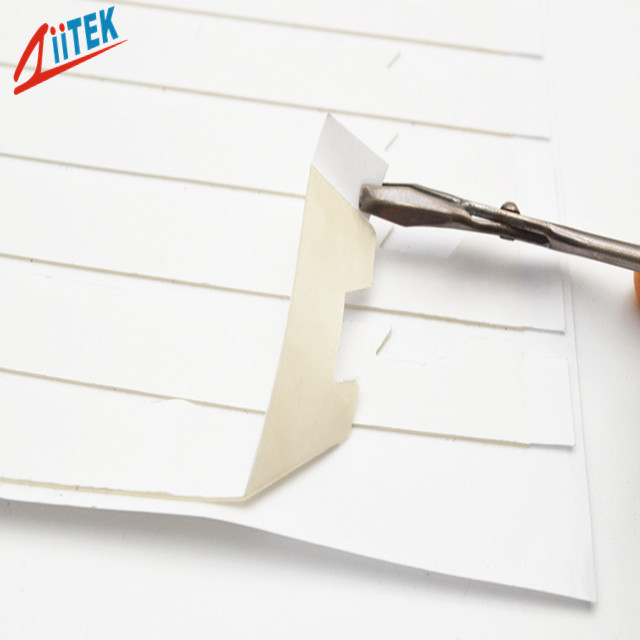

High Performance 1.6W/mK Aluminum Foil Double Sided Thermal Adhesive Tape For Power Converter PCB Heat Spreader
High Performance 1.6W/mK Aluminum Foil Double Sided Thermal Adhesive Tape For Power Converter PCB Heat Spreader
High Performance 1.6W/mK Aluminum Foil Double Sided Thermal Adhesive Tape For Power Converter PCB Heat Spreader
High Performance 1.6W/mK Aluminum Foil Double Sided Thermal Adhesive Tape For Power Converter PCB Heat Spreader
Specifications
180°Peel Adhesion (gf/inch) Steel,Immediate :
≥1200
Keywords :
Thermal Adhesive Tape
Adhesive Type :
Acrylic adhesive
Color :
White
Backing Type :
Aluminum Foil
Payment Terms :
T/T
Recommanded Operating Temperature（℃） :
-40~125
Thermal Conductivity :
1.6 W/mK
Thickness :
0.006"/0.15mm
Brand Name :
Ziitek
Model Number :
TIA806AL
Certification :
RoHs
Place of Origin :
China
MOQ :
10SQM
Supply Ability :
1000SQM/Day
Delivery Time :
3/7 Work days
Packaging Details :
10RL/bag
Prodcuts name :
High Performance 1.6W/mK Aluminum Foil Double Sided Thermal Adhesive Tape For Power Converter PCB Heat Spreader
Price :
Negotiation
Application :
Power Converter PCB Heat Spreader
Description

High Performance 1.6W/mK Aluminum Foil Double Sided Thermal Adhesive Tape For Power Converter PCB Heat Spreader


The TIA®800AL Series is widely used for bonding heat sinks to microprocessors and other power consuming semiconductors. These tapes have strong adhesive strength and good thermal conductivity, aiming to replace traditional mechanical fixation and thermal conductive silicone grease,simplify assembly processes,improve product reliability,and are an ideal choice for solving the heat dissipation challenges of modern compact electronic devices.

Features

>High bonding strength
>Good thermal conductivity efficiency
>Easy to apply and can be die-cut into custom sizes
>Stable operation over a wide temperature range

Applications

>LED module
>Power device
>Consumer electronics
>Communication equipment

Typical Properties of TIA®806AL Series
Products Name TIA®806AL Test Method
Color White Visual
Adhesive Type Acrylic Adhesive -
Backing Type Aluminum Foil -
Recommanded Operating Temperature(℃) -40~125 -
Thickness (inch/mm) 0.006/ 0.15 ASTM D374
Breakdown Voltage(V) ≥ 1000 ASTM D149
Thermal Conductivity (W/mK) 1.6 ASTM D5470
180°Peel Adhesion (gf/inch) Steel, Immediate ≥ 1200 ASTM D149
180°Peel Adhesion (gf/inch) Steel, 24hrs ≥ 1400 JIS K02378
Holding Power (H/inch) @25℃ ≥ 48 JIS K023711
Holding Power (H/inch) @80℃ ≥ 48 JIS K023711

Product Specifications

Standard Thickness:0.006"(0.15 mm),0.008"(0.20 mm),0.010" (0.25 mm)
Standard Size: 16"×100" (406 mmx 30.48 m)
Reinforcing Carrier:TIAB80oAL Series rolls can be reinforced with aluminum foil

The TIA Series can be provided with die-cutting into various shapes.
For different thicknesses or more information about thermally conductive materials,please contact our company.

High Performance 1.6W/mK Aluminum Foil Double Sided Thermal Adhesive Tape For Power Converter PCB Heat Spreader
Company Profile
Dongguan Ziitek Electronic Material and Technology Ltd. is a professional manufacturer of thermal interface materials with many years of industry experience. Integrating R&D, production, sales, and technical services, the company offers a comprehensive product line covering thermally conductive silicone pads, thermal conductive grease/paste,thermally conductive graphite sheets, phase change materials, thermally conductive plastics, thermal gel , silicone foam, silicone-free thermal pads etc.We adhere to strict quality standards and provide customized solutions based on customer requirements. Our products are widely used in electronics, new energy, telecommunications, industrial control, and other fields, earning the trust of customers both domestically and internationally through our proven capabilities.

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
