25Ah Forklift Lithium Battery 2000 Cycles LiFePO4 Forklift Battery Lithium Ion
25Ah Forklift Lithium Battery 2000 Cycles LiFePO4 Forklift Battery Lithium Ion
25Ah Forklift Lithium Battery 2000 Cycles LiFePO4 Forklift Battery Lithium Ion
25Ah Forklift Lithium Battery 2000 Cycles LiFePO4 Forklift Battery Lithium Ion
25Ah Forklift Lithium Battery 2000 Cycles LiFePO4 Forklift Battery Lithium Ion
25Ah Forklift Lithium Battery 2000 Cycles LiFePO4 Forklift Battery Lithium Ion
Specifications
Weight :
2.70kg
Capacity :
20Ah
Price :
price in negotiation
Discharge rate :
1c
Operating Temperature(℃) :
-20-60
Type :
LFP
Delivery Time :
15-25 Working Days
Cathode Materials :
LiFePO4
Packaging Details :
Standard Packaging
MOQ :
3units
Cycle Life :
2000 cycles
Battery Size :
26650
Voltage :
12.8v
Payment Terms :
T/T
OEM/ODM :
Accepatable
Brand Name :
THLB
Model Number :
12.8V20Ah
Place of Origin :
China
Description
25Ah Golf trolley Lithium Battery - 1500 Cycles LiFePO4 Power Solution
High-performance Grade A 12.8V 20Ah/22Ah/25Ah cylindrical LFP lithium ion battery designed for electric golf trolleys, featuring exceptional cycle life and reliability.
Product Specifications
25Ah Forklift Lithium Battery 2000 Cycles LiFePO4 Forklift Battery Lithium Ion

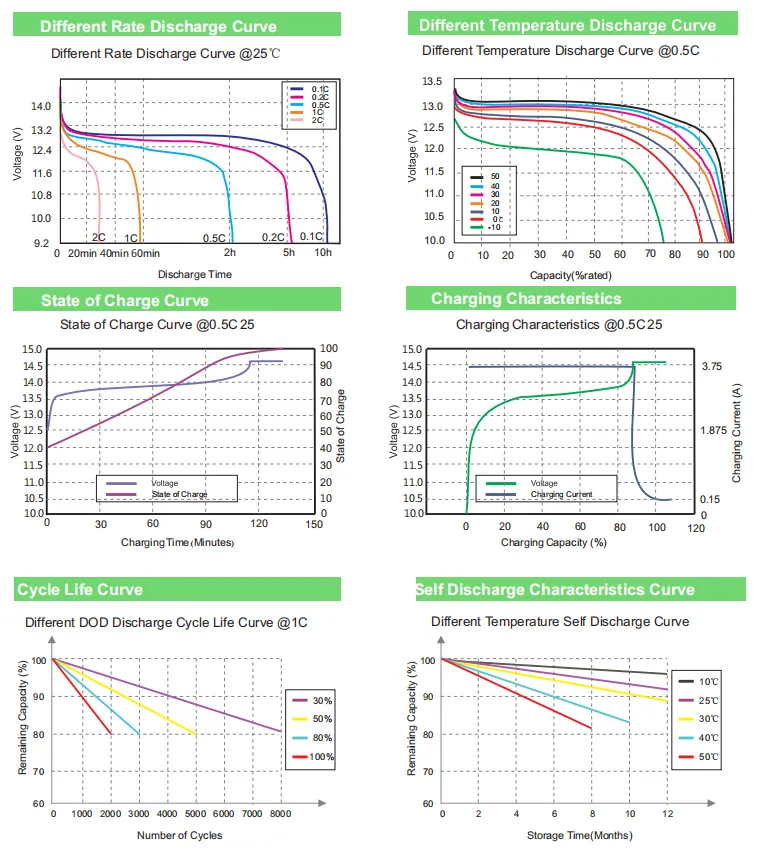

Electrical Characteristics
Parameter Specification
Nominal Voltage 12.8V
Nominal Capacity 20Ah (25℃)
Energy 256Wh
Internal Resistance ≤50mΩ
Cycle Life >2000 cycles @1C 100%DOD
Months Self Discharge <3%
Efficiency of Charge 100% @0.5C
Efficiency of Discharge 96-99% @1C
Standard Charge
Parameter Specification
Charge Voltage 14.6±0.2V
Charge Mode 0.2C to 14.6V, then 14.6V charge current
Charger Current 20A
Max. Charge Current 30A
Charge Cut-off Voltage 15.6V±0.2V
Standard Discharge
Parameter Specification
Continuous Current 30A
Max. Pulse Current 60A (<3s)
Discharge Cut-off Voltage 8V
Environmental Specifications
Parameter Specification
Charge Temperature 0℃ to 45℃ (32F to 113F) @60+25% Relative Humidity
Discharge Temperature -20℃ to 60℃ (-4F to 140F) @60+25% Relative Humidity
Storage Temperature 0℃ to 40℃ (32F to 104F) @60+25% Relative Humidity
Water Dust Resistance IP56
Mechanical Specifications
Parameter Specification
Cell & Method 26650 4S6P
Plastic Case ABS
Dimensions 181*77*167mm (7.13"*3.03"*6.57")
Weight 2.70kg (5.958lbs)
Terminal T3
Protocol (optional) SMBUS/RS485/RS232
SOC (optional) LED
25Ah Forklift Lithium Battery 2000 Cycles LiFePO4 Forklift Battery Lithium Ion
Packing & Delivery
25Ah Forklift Lithium Battery 2000 Cycles LiFePO4 Forklift Battery Lithium Ion
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

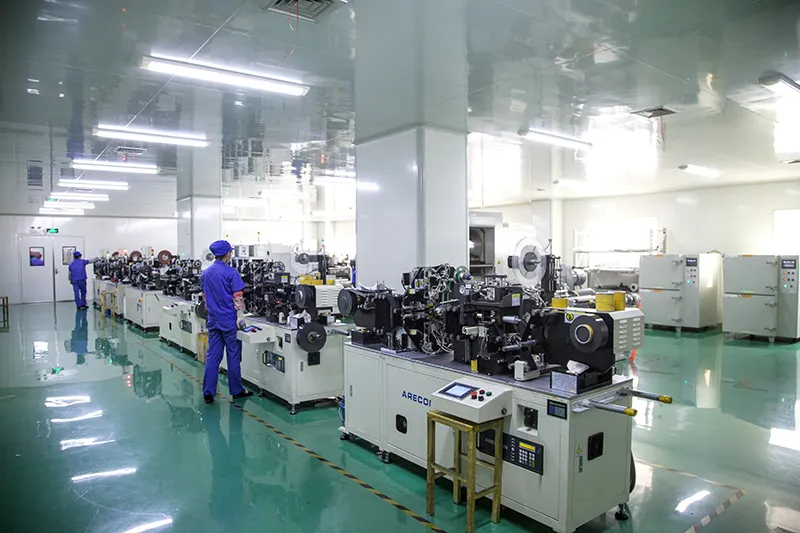

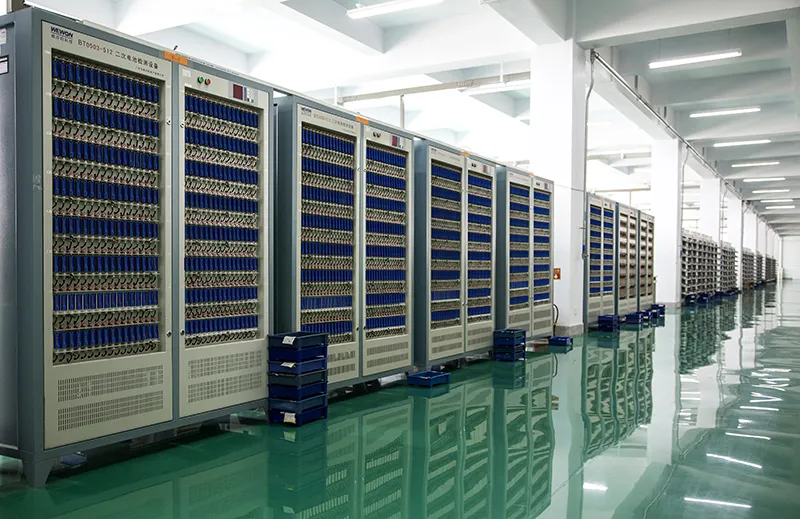

Company Profile
25Ah Forklift Lithium Battery 2000 Cycles LiFePO4 Forklift Battery Lithium Ion
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A1: We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.
Q2: Can I have samples to test? And what is lead time for sample order?
A2: Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.
Q3: Do you provide after-sales service?
A3: Yes, the warranty is 3 years. If any quality problems on our side in this period, we can send new one as replacement.
Q4: What is your company's advantage?
A4: We only supply high level quality of lithium battery and we guarantee on-time shipment. We also provide excellent after sales service.
Q5: Do you accept OEM/ODM?
A5: Yes, it is available.
Q6: What information do you need to make a customized battery pack?
A6: We need the details below:
  • Size of the battery pack you need in mm
  • Capacity of the Battery pack
  • Voltage of the battery pack
  • Max discharge current
  • Cable and connector types you need
  • Casing and Terminals if required
  • Any protection circuits you may need
Q7: Are your batteries real capacity?
A7: All of our battery cells with Grade A, 100% new and real capacity.
Q8: What kind of certificates do you have?
A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3.
Q9: What is your lead time for the mass production?
A9: Generally speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
