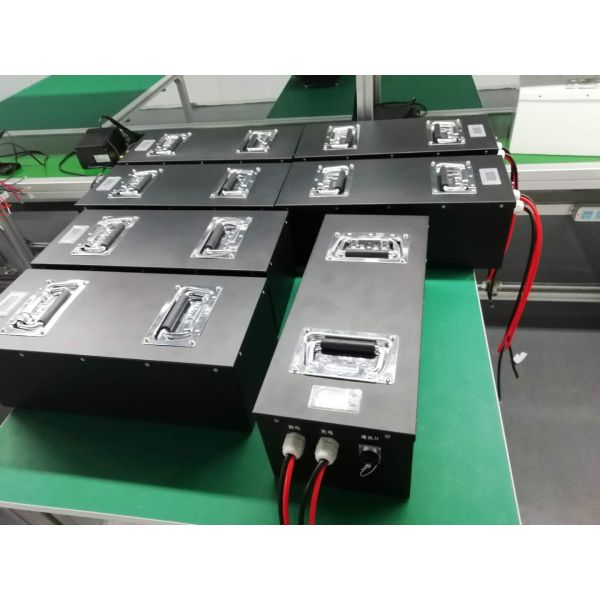

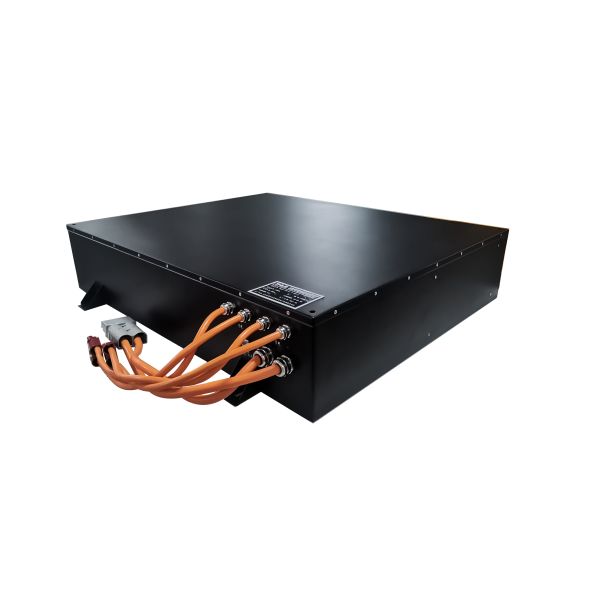

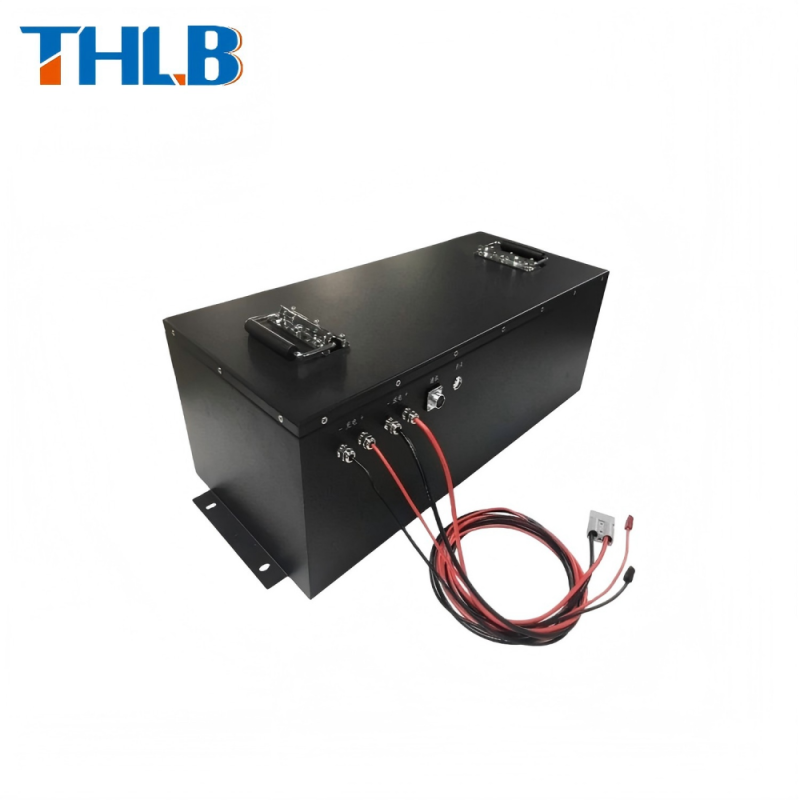

IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
Specifications
Model Number :
48V LiFePO4 Lithium Battery
Brand Name :
THLB
Place of Origin :
China
Price :
$999/units 1-99 units
Battery Type :
LiFePO4
Output Power Range :
0-5 kWh
System Type :
Wall-Mounted
Communication Port :
CAN, RS-232, Rs485
Protection Class :
IP55
Grid connection :
Off grid
Type :
lifepo4
Voltage :
48v
Capacity :
100Ah
cycle :
over 2000 times
Cell Configuration :
26650-3600mah-3.2v-4S6P
charge temperature :
0°C~45°C
discharge Temperature :
-20°C~60°C
BMS :
YES
Application :
Consumer Electronics
Packaging Details :
Standard Packaging
Delivery Time :
7-15 Working Days
Description
lifepo4 battery pack optimized for golf cart running on 48v battery in consumer electronics industry
Product Parameters
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
Item-12V8Ah lithium battery
Parameter
Nominal Voltage
48V
Typical Voltage
100Ah
Discharge
Normal Current
<100A
Cut-off Voltage
10V
Charge
Charging Voltage
57.6V
Charging Current
<50A
Charging Method
CC/CV
Cut-off Current
0.01C
Inner Resistance
Discharging Inner Resistance
<=90mΩ
Operation temperature/humidity range
Charge
0℃～+45℃
Discharge
-20℃～+60℃
When the environment temperature is higher than 45℃, please pay attention to ventilation and heat rejection
Humidity
RH<85%, when the environment humdity is higher than 85%, please pay attention to protect
Storage temperature/ humidity range
Temperature
0℃～+40℃ (capacity 80%) recommended long-term storage temperature is 15-25℃
Humidity
RH<50%, easily oxidized components note sealed
Protection function
Overcharge protection, over discharge protection, temperature protection, balanced function
Material of battery case
Size
Cycle
Standard charge at 0.2C (A), rest 0.5-1h, discharge at 0.2C to cut off voltage, rest 0.5-1h, repeat the above steps until 2000 cycles. (capacity retention rate >80%)
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
Packing & Delivery
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
Our Company
Shandong TianHan New Energy Technology Co., Ltd is specialized in R&D, manufacturing, sales and service of lithium battery, power lithium battery and battery pack, BMS, products are widely used in intelligent manufacturing, new energy electric vehicles, starting-up batteries, communication station battery, e-bike, solar-wind energy storage system and houme-use energy storage system solutions.
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
IP55 48V Golf Cart Battery RS232 RS485 Lithium Golf Cart Batteries 48v
FAQ

Q1. Can I have few free samples for evaluation?
A: Yes, free samples are ok, but not covering shipping cost

Q2. What about the lead time?
A: Samples needs 3-5 days
B: Mass production time is approx 2-3 weeks

Q3. Do you have any MOQ limit for bulk order?
A: MOQ=100pcs

Q4. How do you ship the goods and how long does it take to arrive?

A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days
B: Big quantity bulk order: Air shipping or Sea shipping

Q5. How to proceed an order for Lithium ion cell?
A: Pls confirm the cell models that you are interested in
B: We send cell specifications and best quotation to you for reference
C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly
D: After deposit or full payment confirmed, production started

Q6. Is it OK to print my logo on lithium ion cell product?

A: Yes. OEM is welcomed

Q7: Do you offer guarantee for the products?

A: Yes, 2-5 Years Warranty
