Specifications
Brand Name :
THLB
Model Number :
18650-2600mAh-3.6V
Place of Origin :
China
MOQ :
100 pieces
Price :
$0.95/pieces 100-799 pieces
Battery Size :
18650
Cycle Life :
800 cycles
Cathode Materials :
LiNiMnCoO2
Application :
Consumer Electronics, Power Tools, Toys, Electric Wheelchairs
Weight :
45g
Operating Temperature(℃) :
-20-60
Type :
Li-ion
Voltage :
3.6V
Capacity :
2600 mAh
Size :
18650
Category :
Rechargeable Batteries
Cycle Characteristic :
1000 Times
Working Temperature :
-20°C~60°C
Battery Weight :
48g (Approx.)
Color :
green
Packaging Details :
Standard Packaging
Delivery Time :
7-15 Working Days
Description

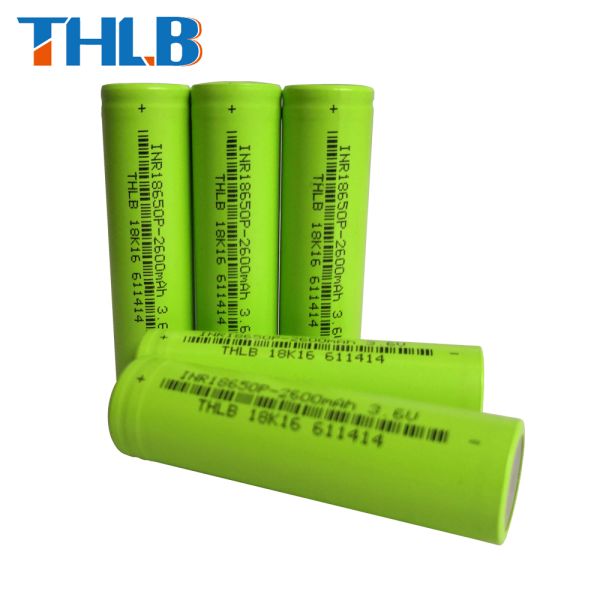

Operating Temperature Minus 20 to 60 Celsius 18650 Lithium Ion Battery Cells 3.6 Volt 2600mAh Capacity for Electronics Toys
Product Parameters
LiNiMnCoO2 18650 Lithium Ion Battery Cells 3.6 Volt 2600mAh For Electronics Toys
LiNiMnCoO2 18650 Lithium Ion Battery Cells 3.6 Volt 2600mAh For Electronics Toys
LiNiMnCoO2 18650 Lithium Ion Battery Cells 3.6 Volt 2600mAh For Electronics Toys
No.
Item
Standard
Note
1
Standard Capacity
2600mAh
0.5C,( current value of 4500mA at 1C)
2
Capacity Range
2550~2650mAh
0.5C
3
Standard Voltage
3.6 V
4
Alternating Internal Resistance
≤30mΩ
5
Charge Conditions
Cut-off Voltage
4.2±0.05V
constant-current charge to 4.2V at 0.5C,constant voltage charge to stop until 0.01C mA
Cut-off Current
0.01C
6
Max. Charging Current
4.5A
7
Discharge Cut-off Voltage
2.75V
8
Standard Discharge Current
2.25A
9
Fast Discharge Current
4.5A
10
Max. Continuous Discharge Current
13.5A
11
Pulse Discharge Current
15A,5s
12
Cycle Characteristic
1000times(100%DOD)
the residual capacity is no less than 70% of
rated capacity at 1C rate.
2000 times(80%DOD)
3000 times(50%DOD)
13
Working Temperature
Charge:0°C~55°C
Discharge:-20°C~60°C
14
Storage Temperature
-20°C ~ 45°C
Short-term storage (< 3 months)
15
Battery Weight
48g (Approx.)
LiNiMnCoO2 18650 Lithium Ion Battery Cells 3.6 Volt 2600mAh For Electronics Toys

Safety performance classification-cylindrical 18650 2600mah li ion lithium battery for power banks toys electronics

(1) Resistance to heavy loads. The battery pack shall be tested according to the regulations and shall not ignite or explode.

(2) Resistance to thermal shock. The battery pack shall be tested according to the regulations and shall not ignite or explode.

(3) Anti-overcharge. The battery module shall be tested according to the regulations and shall not ignite or explode.

(4) Resistance to overdischarge. The battery module shall be tested according to the regulations and shall not ignite or explode.

(5) Resistance to short circuit. The battery module shall be tested according to the regulations and shall not ignite or explode.

(6) High temperature storage. The battery shall be tested according to the regulations and shall not leak, smoke, catch fire or explode.

(7) Anti-heating. The battery module is tested according to the regulations. No part of the explosion battery penetrates the screen, and some or all of the batteries protrude from the screen.

(8) Anti-puncture. The battery pack shall be tested according to the regulations and shall not ignite or explode.

(9) Anti-extrusion. The battery module shall be tested according to the regulations and shall not ignite or explode.

(10) Resistance to low pressure. The battery pack shall be tested in accordance with regulations and shall not leak, smoke, catch fire or explode.

(11) Constant damp heat. After the battery pack is tested according to the regulations, its appearance shall be free from obvious deformation, rust, smoke or explosion, and its capacity shall not be less than 90% of the rated value.

(12) Anti-vibration. The battery pack shall be tested according to the regulations, and its appearance shall be free from obvious damage, liquid leakage, smoke or explosion, and it can work normally.

(13) Anti-collision. The battery pack shall be tested according to the regulations, and its appearance shall be free from obvious damage, liquid leakage, smoke or explosion, and it can work normally.

(14) Temperature cycling. The battery pack shall be tested in accordance with the provisions of 6.6.15, which shall not leak, smoke, ignite or explode; the appearance of the battery pack shall be free of cracks, no loss of quality, and the capacity shall not be lower than 70% of the initial state.

(15) Flame retardant properties. For battery packs with plastic casing and protective cover, the test shall be carried out in accordance with the provisions of 6.6.16. The outer casing shall comply with the provisions of Article 8.3.2 of the GB/T2408-2008, FH-1 (horizontal level) and 9.3.2 of FV-0 (vertical). Level) requirements.

(16) Insulation resistance. For a battery pack with a metal case, the insulation resistance of the battery pack's metal and cathode housings is not less than 2 MW.

LiNiMnCoO2 18650 Lithium Ion Battery Cells 3.6 Volt 2600mAh For Electronics Toys
LiNiMnCoO2 18650 Lithium Ion Battery Cells 3.6 Volt 2600mAh For Electronics Toys
LiNiMnCoO2 18650 Lithium Ion Battery Cells 3.6 Volt 2600mAh For Electronics Toys
LiNiMnCoO2 18650 Lithium Ion Battery Cells 3.6 Volt 2600mAh For Electronics Toys
LiNiMnCoO2 18650 Lithium Ion Battery Cells 3.6 Volt 2600mAh For Electronics Toys
LiNiMnCoO2 18650 Lithium Ion Battery Cells 3.6 Volt 2600mAh For Electronics Toys
Our Company
LiNiMnCoO2 18650 Lithium Ion Battery Cells 3.6 Volt 2600mAh For Electronics Toys
LiNiMnCoO2 18650 Lithium Ion Battery Cells 3.6 Volt 2600mAh For Electronics Toys
LiNiMnCoO2 18650 Lithium Ion Battery Cells 3.6 Volt 2600mAh For Electronics Toys
LiNiMnCoO2 18650 Lithium Ion Battery Cells 3.6 Volt 2600mAh For Electronics Toys
Packing & Delivery
LiNiMnCoO2 18650 Lithium Ion Battery Cells 3.6 Volt 2600mAh For Electronics Toys
LiNiMnCoO2 18650 Lithium Ion Battery Cells 3.6 Volt 2600mAh For Electronics Toys
FAQ

Q1. Can I have few free samples for evaluation?

A: Yes, free samples are ok, but not covering shipping cost

Q2. What about the lead time?

A: Samples needs 3-5 days

B: Mass production time is approx 2-3 weeks

Q3. Do you have any MOQ limit for bulk order?

A: MOQ=100pcs

Q4. How do you ship the goods and how long does it take to arrive?

A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days

B: Big quantity bulk order: Air shipping or Sea shipping

Q5. How to proceed an order for Lithium ion cell?

A: Pls confirm the cell models that you are interested in

B: We send cell specifications and best quotation to you for reference

C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly

D: After deposit or full payment confirmed, production started

Q6. Is it OK to print my logo on lithium ion cell product?

A: Yes. OEM is welcomed

Q7: Do you offer guarantee for the products?

A: Yes, 3-5 Years Warranty
