Specifications
Brand Name :
THLB
Model Number :
26650-3200mAh-3.2V
Place of Origin :
China
MOQ :
100 pieces
Price :
$1.40/pieces 100-499 pieces
Max Load Quantity(cells) :
32
Cycle Life :
1200 cycles
Application :
Toys, Consumer Electronics, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs
Operating Temperature(℃) :
-20-60℃
Cathode Materials :
LiFePO4
Type :
LiFePO4
Voltage :
3.2 V
Capacity :
3200 mAh
Size :
26650
Category :
Rechargeable Batteries
Cycle Characteristic :
2000 Times
Working Temperature :
-20°C~60°C
Battery Weight :
86g (Approx.)
Color :
Blue
Packaging Details :
Standard Packaging
Delivery Time :
7-15 Working Days
Description

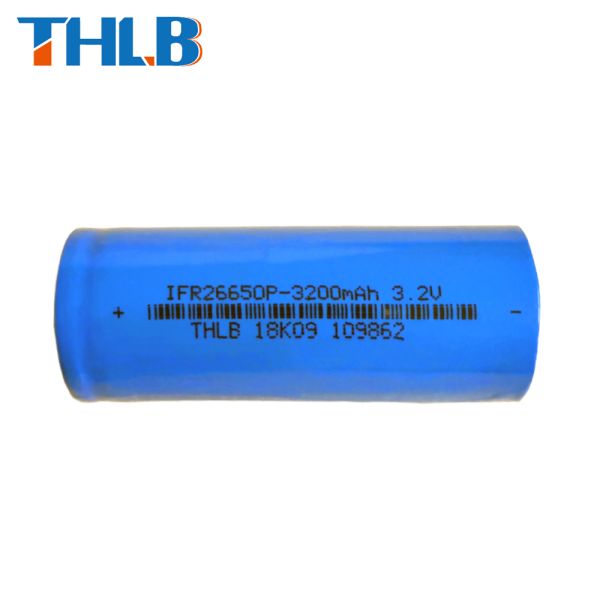

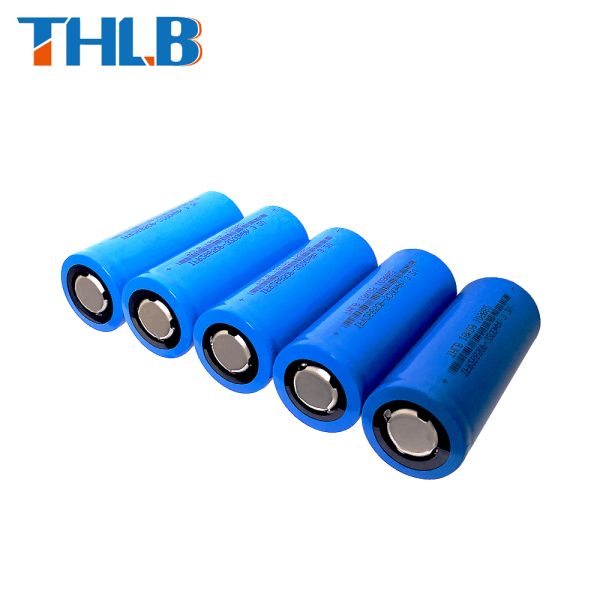

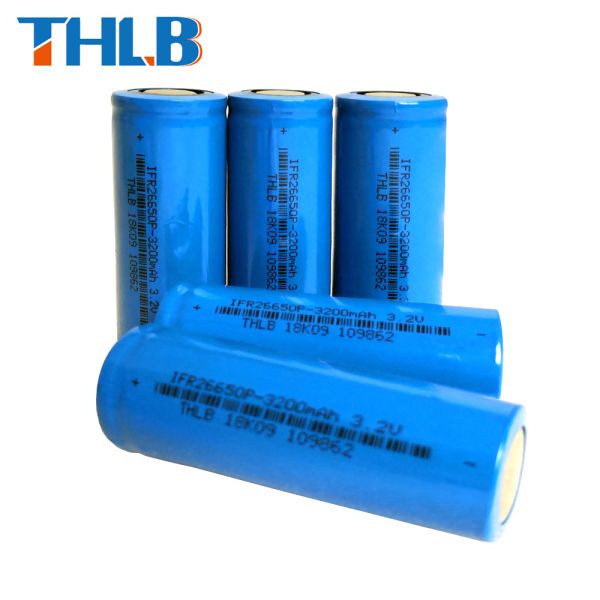

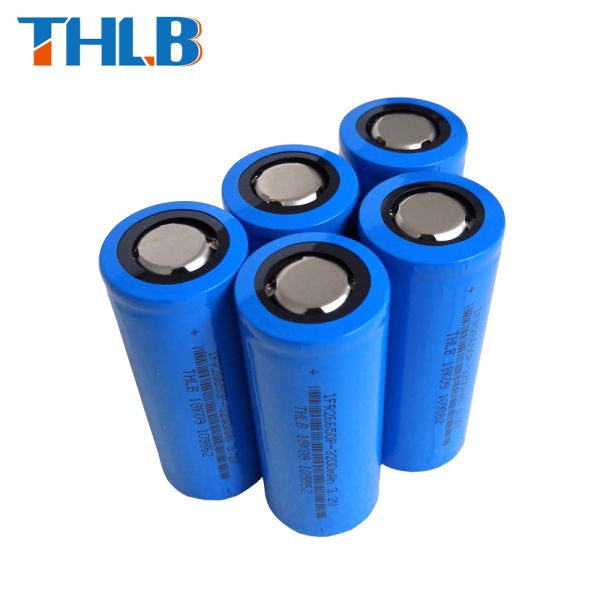

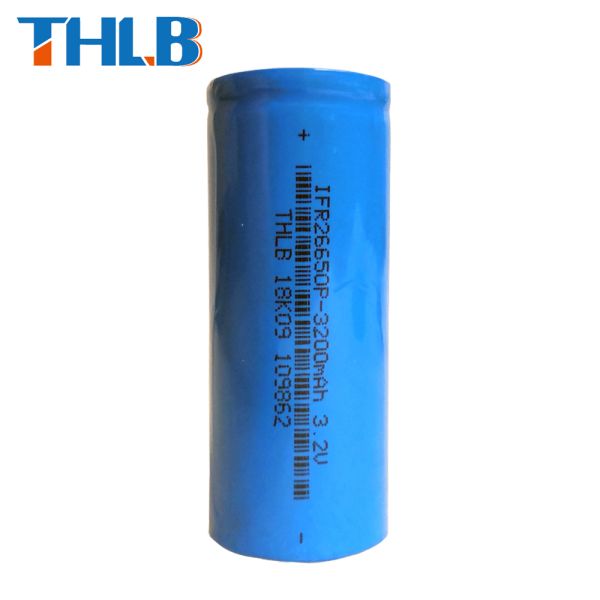

3.2 V Lithium Ion 26650 Cylindrical LiFePO4 Battery Cells 3200mAh Deep Cycle 1200 Cycles Operating Temperature -20C to 60C
Product Parameters
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
No.
Item
Standard
Note
1
Standard Capacity
3200mAh
0.5C,( current value of 3200mA at 1C)
2
Capacity Range
3100~3300mAh
0.5C
3
Standard Voltage
3.2 V
4
Alternating Internal Resistance
≤30mΩ
5
Charge Conditions
Cut-off Voltage
3.65±0.05V
constant-current charge to 3.6V at 0.5C,constant voltage charge to stop until 0.01C mA
Cut-off Current
0.01C
6
Max. Charging Current
3.2A
7
Discharge Cut-off Voltage
2.5V
8
Standard Discharge Current
1.6A
9
Fast Discharge Current
3.2A
10
Max. Continuous Discharge Current
9.6A
11
Pulse Discharge Current
15A 5s
12
Cycle Characteristic
2000times(100%DOD)
the residual capacity is no less than 80% of
rated capacity at 1C rate.
4000 times(80%DOD)
7000 times(50%DOD)
13
Working Temperature
Charge:0°C~55°C
Discharge:-20°C~60°C
14
Storage Temperature
-20°C ~ 45°C
Short-term storage (< 3 months)
15
Battery Weight
86g (Approx.)
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery

Safety performance classification

(1) Resistance to heavy loads. The battery pack shall be tested according to the regulations and shall not ignite or explode.

(2) Resistance to thermal shock. The battery pack shall be tested according to the regulations and shall not ignite or explode.

(3) Anti-overcharge. The battery module shall be tested according to the regulations and shall not ignite or explode.

(4) Resistance to overdischarge. The battery module shall be tested according to the regulations and shall not ignite or explode.

(5) Resistance to short circuit. The battery module shall be tested according to the regulations and shall not ignite or explode.

(6) High temperature storage. The battery shall be tested according to the regulations and shall not leak, smoke, catch fire or explode.

(7) Anti-heating. The battery module is tested according to the regulations. No part of the explosion battery penetrates the screen, and some or all of the batteries protrude from the screen.

(8) Anti-puncture. The battery pack shall be tested according to the regulations and shall not ignite or explode.

(9) Anti-extrusion. The battery module shall be tested according to the regulations and shall not ignite or explode.

(10) Resistance to low pressure. The battery pack shall be tested in accordance with regulations and shall not leak, smoke, catch fire or explode.

(11) Constant damp heat. After the battery pack is tested according to the regulations, its appearance shall be free from obvious deformation, rust, smoke or explosion, and its capacity shall not be less than 90% of the rated value.

(12) Anti-vibration. The battery pack shall be tested according to the regulations, and its appearance shall be free from obvious damage, liquid leakage, smoke or explosion, and it can work normally.

(13) Anti-collision. The battery pack shall be tested according to the regulations, and its appearance shall be free from obvious damage, liquid leakage, smoke or explosion, and it can work normally.

(14) Temperature cycling. The battery pack shall be tested in accordance with the provisions of 6.6.15, which shall not leak, smoke, ignite or explode; the appearance of the battery pack shall be free of cracks, no loss of quality, and the capacity shall not be lower than 70% of the initial state.

(15) Flame retardant properties. For battery packs with plastic casing and protective cover, the test shall be carried out in accordance with the provisions of 6.6.16. The outer casing shall comply with the provisions of Article 8.3.2 of the GB/T2408-2008, FH-1 (horizontal level) and 9.3.2 of FV-0 (vertical). Level) requirements.

(16) Insulation resistance. For a battery pack with a metal case, the insulation resistance of the battery pack's metal and cathode housings is not less than 2 MW.

26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
Our Company
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
Packing & Delivery
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
26650 Cylindrical LiFePO4 Battery 3200mAh 1200 Cycles THLB Battery
FAQ

Q1. Can I have few free samples for evaluation?

A: Yes, free samples are ok, but not covering shipping cost

Q2. What about the lead time?

A: Samples needs 3-5 days

B: Mass production time is approx 2-3 weeks

Q3. Do you have any MOQ limit for bulk order?

A: MOQ=100pcs

Q4. How do you ship the goods and how long does it take to arrive?

A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days

B: Big quantity bulk order: Air shipping or Sea shipping

Q5. How to proceed an order for Lithium ion cell?

A: Pls confirm the cell models that you are interested in

B: We send cell specifications and best quotation to you for reference

C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly

D: After deposit or full payment confirmed, production started

Q6. Is it OK to print my logo on lithium ion cell product?

A: Yes. OEM is welcomed

Q7: Do you offer guarantee for the products?

A: Yes, 3-5 Years Warranty
